Qinchuan

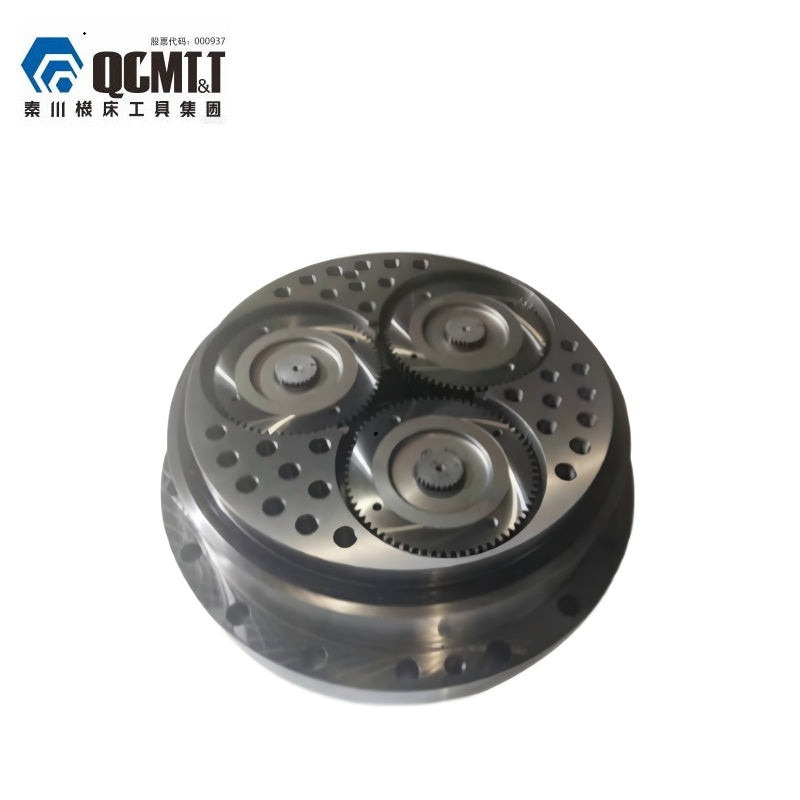

Qinchuan BX700F Reducer

$6,700.00
Version
Speed Ratio

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Reducer Standalone Speed Ratio (R₁) 200.33 / 250.6
Bending Moment Stiffness 12700 Nm/arc.min. (1296 kgf-m/arc.min.)
Permissible Bending Moment 15000 Nm (1530 kgf-m)
Max. Momentary Permissible Bending Moment 30000 Nm (3061 kgf-m)
Permissible Torque for Start/Stop 17150 Nm (1750 kgf-m)
Max. Momentary Permissible Torque 34300 Nm (3500 kgf-m)
Angular Transmission Error (MAX) 1′ Arc.min.
Backlash (MAX) 1′ Arc.min.
Lost Motion (MAX) 1′ Arc.min.
Torsional Stiffness 2120 Nm/arc.min. (216 kgf-m/arc.min.)
Permissible Axial Thrust 44000 N (4489 kgf)

Output Speed Output Torque Input Power
15 r/min 6860(700) Nm(kgf-m) 14.4 kW
