Qinchuan

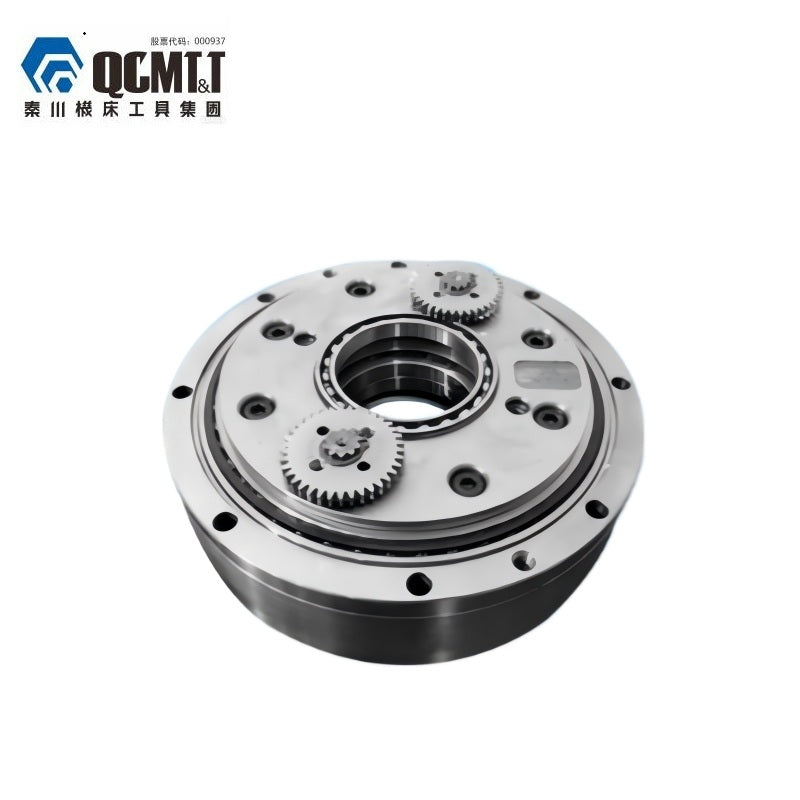

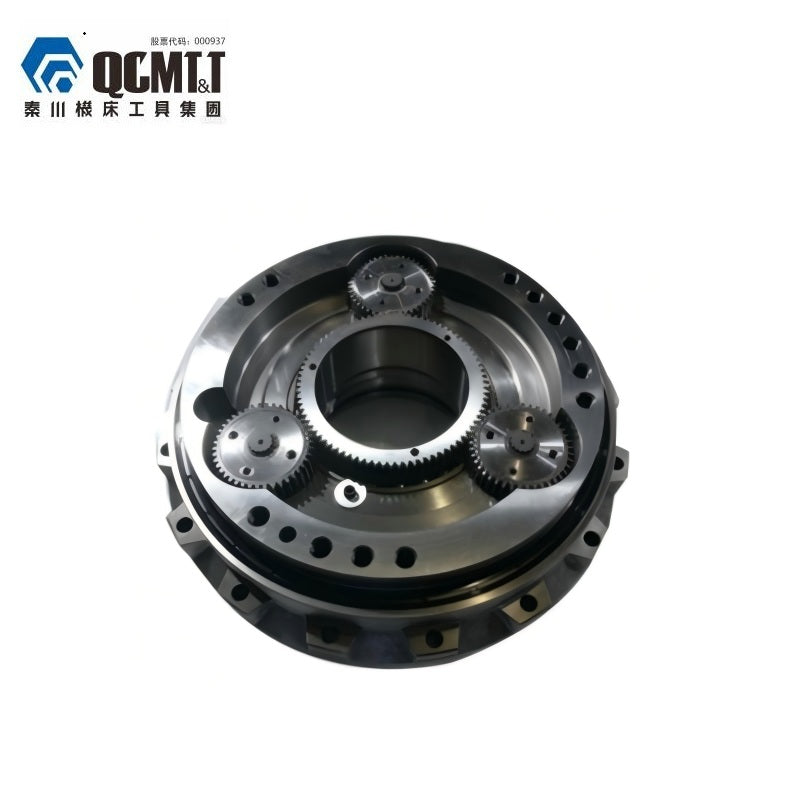

Qinchuan BX50C Reducer

$1,240.00
Version
Speed Ratio

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Reducer Standalone Speed Ratio (R₁) 32.54 (1985/61)
Bending Moment Stiffness 1960 Nm/arc.min. (200 kgf-m/arc.min.)
Permissible Bending Moment 1764 Nm (180 kgf-m)
Max. Momentary Permissible Bending Moment 3528 Nm (360 kgf-m)
Permissible Max. Output Speed 50 r/min
Permissible Torque for Start/Stop 1225 Nm (125 kgf-m)
Max. Momentary Permissible Torque 2450 Nm (250 kgf-m)
Lost Motion (MAX) 1′ Arc.min.
Torsional Stiffness 255 Nm/arc.min. (26 kgf-m/arc.min.)
Moment of Inertia I (Reducer Standalone) 1.82×10⁻⁴ Kg-m²
Moment of Inertia I (Standard Center Gear) 0.363×10⁻³ Kg-m²
Weight 14.6 Kg

Output Speed Output Torque Input Power
5 r/min 681 Nm (69.5 kgf-m) 0.48 kW
10 r/min 554 Nm (56.5 kgf-m) 0.77 kW
15 r/min 490 Nm (50 kgf-m) 1.03 kW
20 r/min 450 Nm (45.9 kgf-m) 1.26 kW
25 r/min 420 Nm (42.9 kgf-m) 1.47 kW
30 r/min 398 Nm (40.6 kgf-m) 1.67 kW
40 r/min 366 Nm (37.3 kgf-m) 2.04 kW
50 r/min 341 Nm (34.8 kgf-m) 2.38 kW
60 r/min - -
