Qinchuan | SKU:

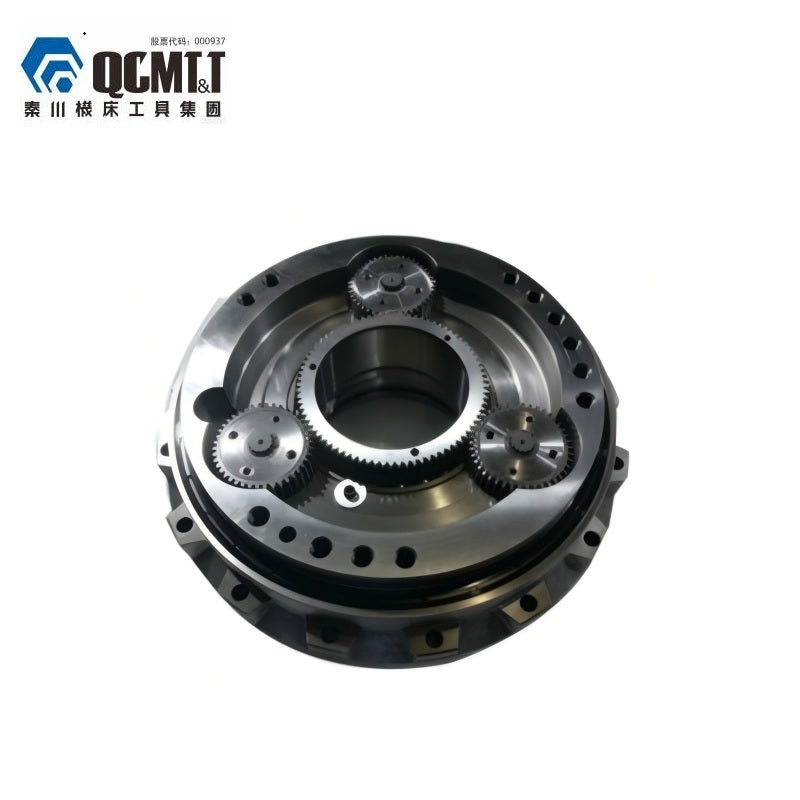

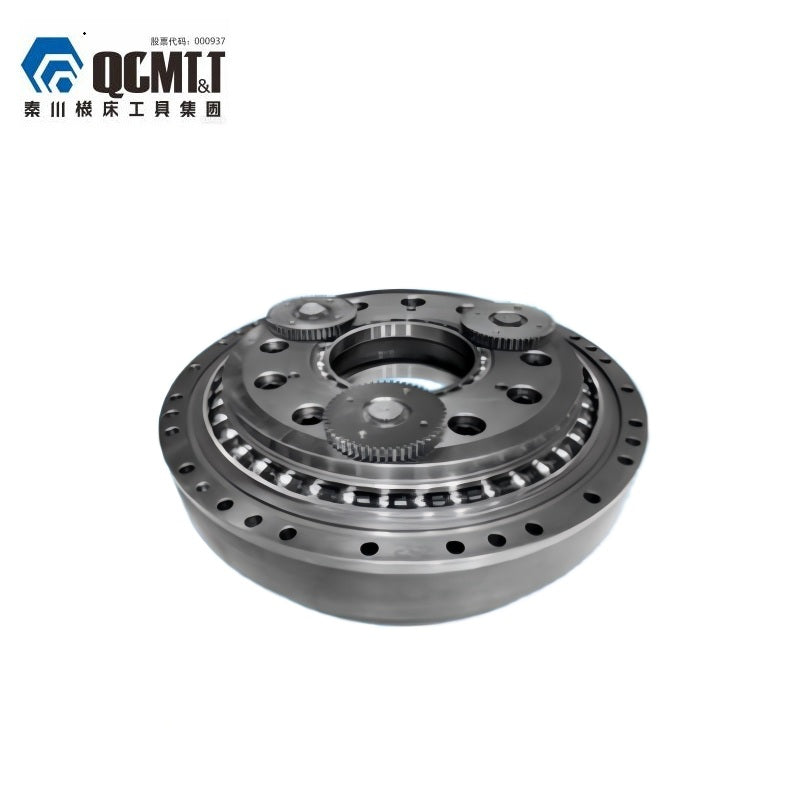

Qinchuan BX500C Reducer
Regular price
$7,355.00
Unit price
Qinchuan BX500C Reducer - BX500C / 37.34 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Qinchuan BX500C Reducer
Regular price
$7,355.00
Unit price
Qinchuan BX500C Reducer - BX500C / 37.34 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Reducer Standalone Speed Ratio (R₁) | 37.34 (3099/83) |
| Bending Moment Stiffness | 24500 (2500) Nm/arc.min. (kgf-m/arc.min.) |
| Permissible Bending Moment | 34300 (3500) Nm (kgf-m) |
| Max. Momentary Permissible Bending Moment | 78400 (8000) Nm (kgf-m) |
| Permissible Max. Output Speed | 20 r/min |
| Permissible Torque for Start/Stop | 12250 (1250) Nm (kgf-m) |
| Max. Momentary Permissible Torque | 24500 (2500) Nm (kgf-m) |
| Lost Motion (MAX) | 1′ Arc.min. |
| Torsional Stiffness | 3430 (350) Nm/arc.min. (kgf-m/arc.min.) |
| Moment of Inertia I (Reducer Standalone) | 0.996×10⁻² Kg-m² |
| Moment of Inertia I (Standard Center Gear) | 1.014×10-1 Kg-m² |
| Weight | 154 Kg |
| Output Speed (r/min) | Output Torque (Nm/ kgf-m) | Input Power (kW) |
|---|---|---|
| 5 | 6811 (695) | 4.75 |
| 10 | 5537 (56.5) | 7.73 |
| 15 | 4900 (50) | 10.26 |
| 20 | 4498 (45.9) | 12.56 |
