Qinchuan

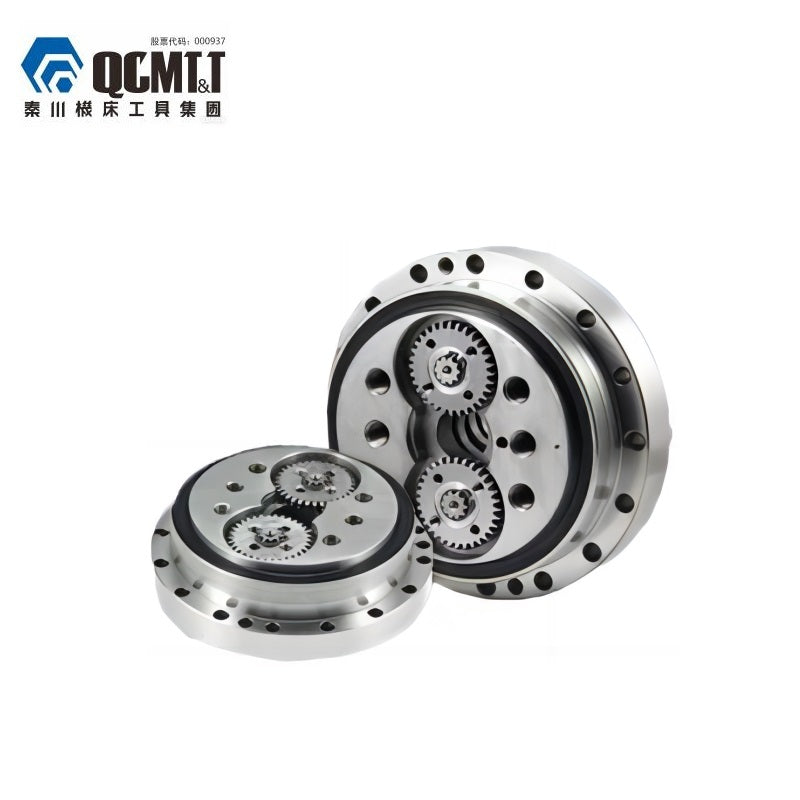

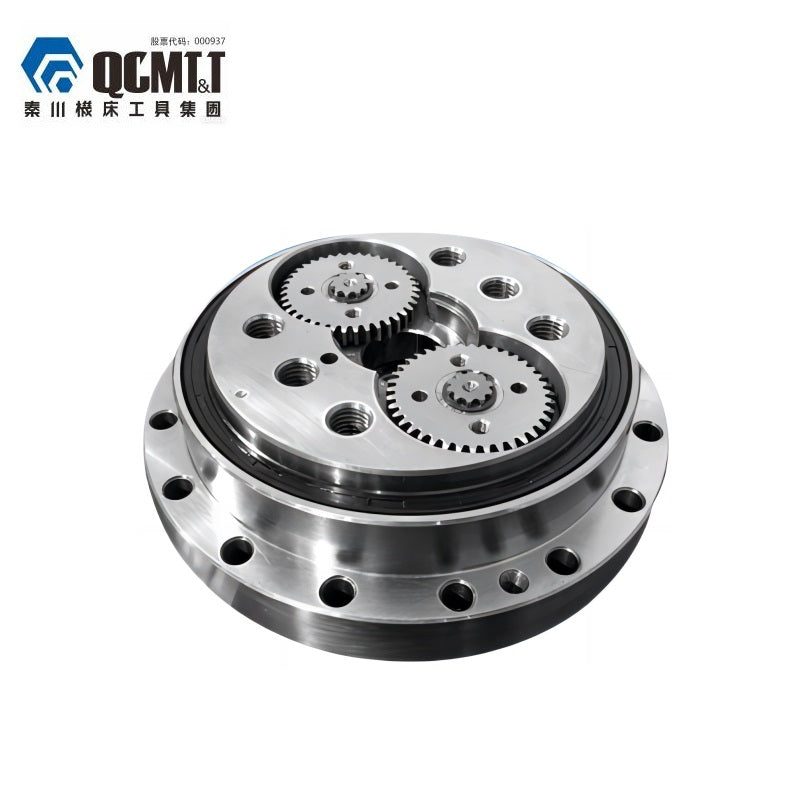

Qinchuan BX40E Reducer

$490.00
Version
Speed Ratio

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Bending Moment Stiffness 931 (95) Nm/arc.min. (kgf-m/arc.min.)
Permissible Bending Moment 1666 (170) Nm (kgf-m)
Max. Momentary Permissible Bending Moment 3332 (340) Nm (kgf-m)
Permissible Max. Output Speed 70 r/min
Permissible Torque for Start/Stop 1029 (105) Nm (kgf-m)
Max. Momentary Permissible Torque 2058 (210) Nm (kgf-m)
Lost Motion (MAX) 1 Arc.min.
Torsional Stiffness 108 (11) Nm/arc.min. (kgf-m/arc.min.)
Weight 9.3 Kg

Output Speed Output Torque Input Power
5 r/min 572 (58.4) Nm (kgf-m) 0.40 kW
10 r/min 465 (47.4) Nm (kgf-m) 0.65 kW
15 r/min 412 (42.0) Nm (kgf-m) 0.86 kW
20 r/min 377 (38.5) Nm (kgf-m) 1.05 kW
25 r/min 353 (36.0) Nm (kgf-m) 1.23 kW
30 r/min 334 (34.1) Nm (kgf-m) 1.40 kW
40 r/min 307 (31.3) Nm (kgf-m) 1.71 kW
50 r/min 287 (29.3) Nm (kgf-m) 2.00 kW
60 r/min 271 (27.7) Nm (kgf-m) 2.27 kW

Gear Ratio (Planetary Carrier / Pin Gear) Moment of Inertia I
57 / 56 3.25 × 10-4 Kg-m²
81 / 80 2.20 × 10-4 Kg-m²
105 / 104 1.63 × 10-4 Kg-m²
121 / 120 1.37 × 10-4 Kg-m²
153 / 152 1.01 × 10-4 Kg-m²
