Qinchuan | SKU:

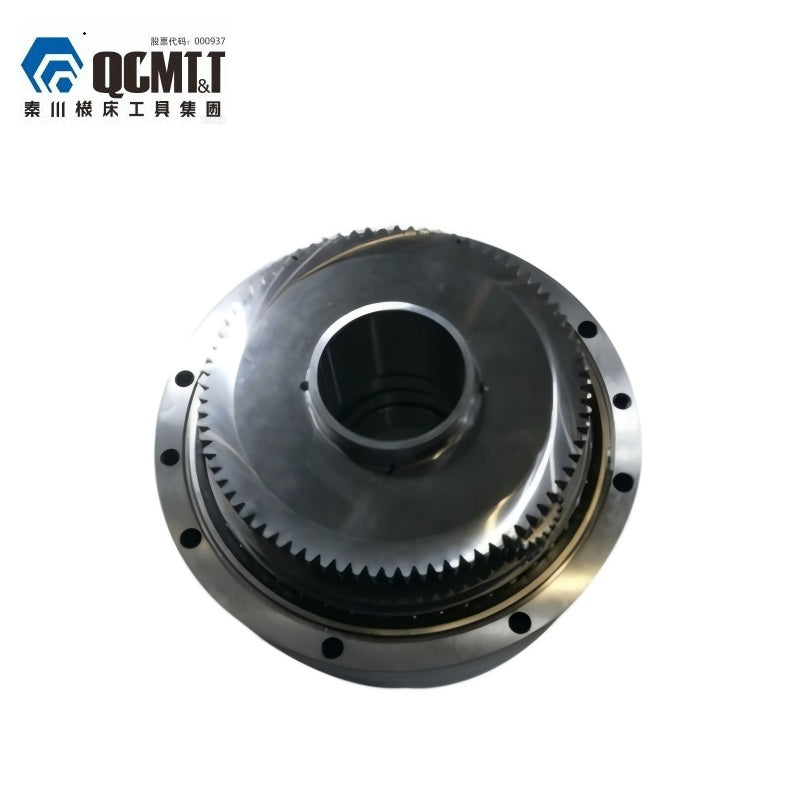

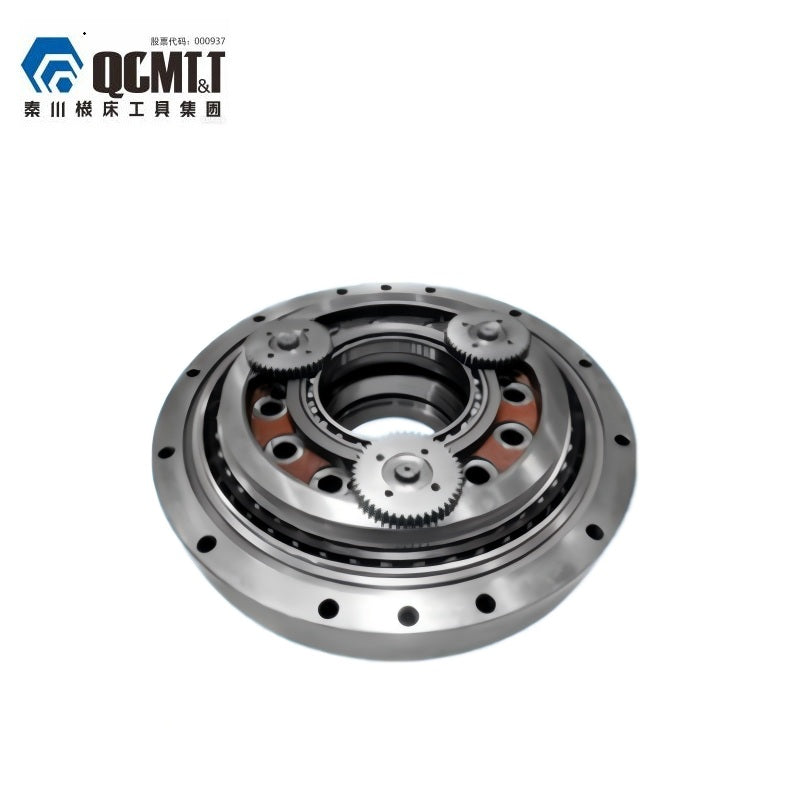

Qinchuan BX400C Reducer
Regular price
$5,125.00
Unit price
Qinchuan BX400C Reducer - BX400C / 35.61 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Qinchuan BX400C Reducer
Regular price
$5,125.00
Unit price
Qinchuan BX400C Reducer - BX400C / 35.61 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Reducer Standalone Speed Ratio (R₁) | 35.61 (2778/78) |
| Bending Moment Stiffness | 17640 (180) Nm/arc.min. (kgf-m/arc.min.) |
| Permissible Bending Moment | 26460 (2700) Nm (kgf-m) |
| Max. Momentary Permissible Bending Moment | 52920 (5400) Nm (kgf-m) |
| Permissible Max. Output Speed | 20 r/min |
| Permissible Torque for Start/Stop | 9800 (1000) Nm (kgf-m) |
| Max. Momentary Permissible Torque | 19600 (2000) Nm (kgf-m) |
| Lost Motion (MAX) | 1' Arc.min. |
| Torsional Stiffness | 2548 (260) Nm/arc.min. (kgf-m/arc.min.) |
| Moment of Inertia I (Reducer Standalone) | 0.541×10⁻² Kg-m² |
| Moment of Inertia I (Standard Center Gear) | 0.407×10-1Kg-m² |
| Weight | 106 Kg |
| Output Speed | Output Torque | Input Power |
|---|---|---|
| 5 r/min | 5449 (556) Nm (kgf-m) | 3.79 kW |
| 10 r/min | 4430 (452) Nm (kgf-m) | 6.17 kW |
| 15 r/min | 3920 (400) Nm (kgf-m) | 8.19 kW |
| 20 r/min | 3598 (367.2) Nm (kgf-m) | 10.02 kW |
