Qinchuan

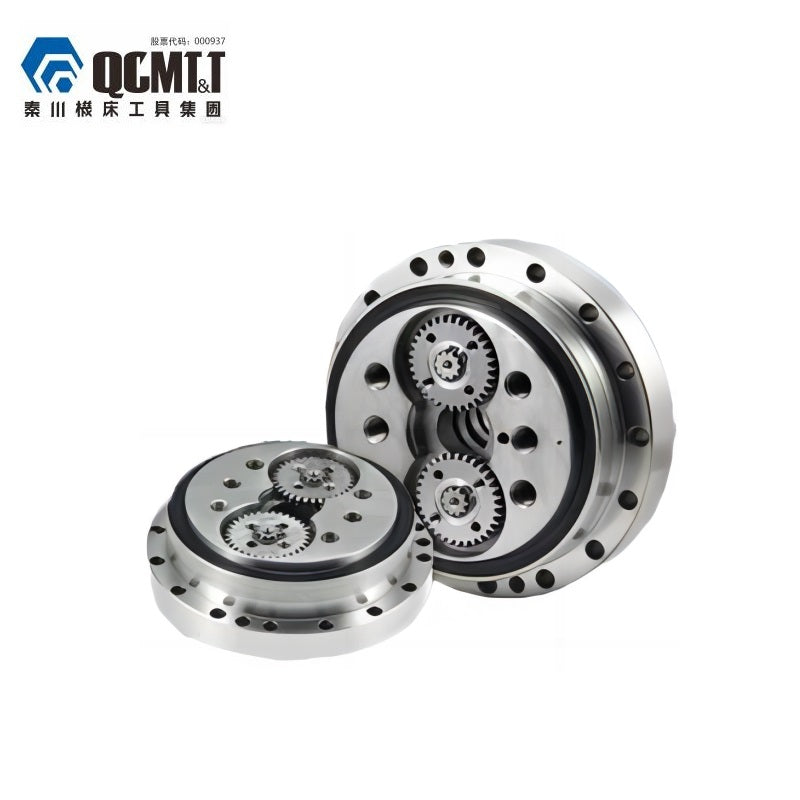

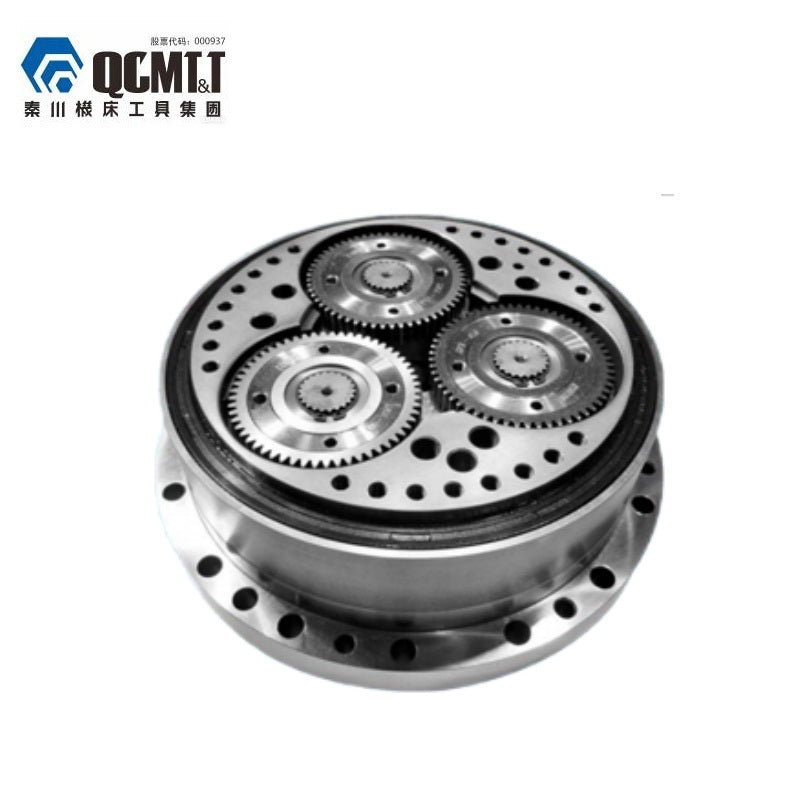

Qinchuan BX320E Reducer

$1,725.00
Version
Speed Ratio

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Bending Moment Stiffness 4900 (500) Nm/arc.min. (kgf-m/arc.min.)
Permissible Bending Moment 7056 (720) Nm (kgf-m)
Max. Momentary Permissible Bending Moment 14112 (1440) Nm (kgf-m)
Permissible Max. Output Speed 35 r/min
Permissible Torque for Start/Stop 7840 (800) Nm (kgf-m)
Max. Momentary Permissible Torque 15680 (1600) Nm (kgf-m)
Lost Motion (MAX) 1 Arc.min.
Torsional Stiffness 980 (100) Nm/arc.min. (kgf-m/arc.min.)
Weight 44.3 Kg

Output Speed Output Torque Input Power
5 r/min 4361 (445) Nm (kgf-m) 3.04 kW
10 r/min 3538 (361) Nm (kgf-m) 4.94 kW
15 r/min 3136 (320) Nm (kgf-m) 6.57 kW
20 r/min 2881 (294) Nm (kgf-m) 8.05 kW
25 r/min 2695 (275) Nm (kgf-m) 9.41 kW
30 r/min 2548 (260) Nm (kgf-m) 10.7 kW

Gear Ratio (Planetary Carrier / Pin Gear) Moment of Inertia I
81 / 80 4.83 × 10-4 Kg-m²
101 / 100 3.79 × 10-4 Kg-m²
118.5 / 117.5 3.15 × 10-4 Kg-m²
129 / 128 2.84 × 10-4 Kg-m²
141 / 140 2.54 × 10-4 Kg-m²
153 / 152 2.36 × 10-4 Kg-m²
171 / 170 1.97 × 10-4 Kg-m²
185 / 184 1.77 × 10-4 Kg-m²
201 / 200 1.68 × 10-4 Kg-m²
