Qinchuan

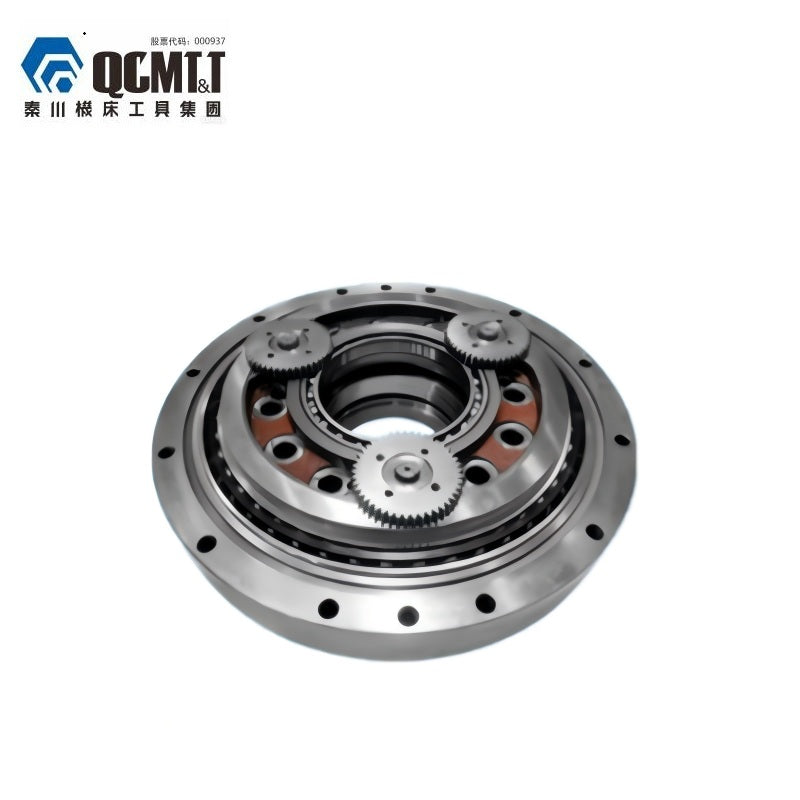

Qinchuan BX320CA Reducer

$3,340.00
Version
Speed Ratio

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Reducer Standalone Speed Ratio (R₂) 210
Bending Moment Stiffness 12740 Nm/arc.min. (1300 kgf-m/arc.min.)
Permissible Bending Moment 20580 Nm (2100 kgf-m)
Max. Momentary Permissible Bending Moment 39200 Nm (4000 kgf-m)
Permissible Max. Output Speed 25 r/min
Permissible Torque for Start/Stop 7840 Nm (800 kgf-m)
Max. Momentary Permissible Torque 15680 Nm (1600 kgf-m)
Lost Motion (MAX) 1' Arc.min.
Torsional Stiffness 1960 Nm/arc.min. (200 kgf-m/arc.min.)
Moment of Inertia I (Reducer Standalone) 0.459×10-3 Kg-m²
Moment of Inertia I (Standard Center Gear) 0.636×10-3 Kg-m²
Weight 92.1 Kg

Output Speed (r/min) Output Torque (Nm (kgf-m)) Input Power (kW)
5 r/min 4361 Nm (445 kgf-m) 3.04 kW
10 r/min 3538 Nm (361 kgf-m) 4.94 kW
15 r/min 3136 Nm (320 kgf-m) 6.57 kW
20 r/min 2881 Nm (294 kgf-m) 8.05 kW
25 r/min 2690 Nm (275 kgf-m) 9.41 kW
