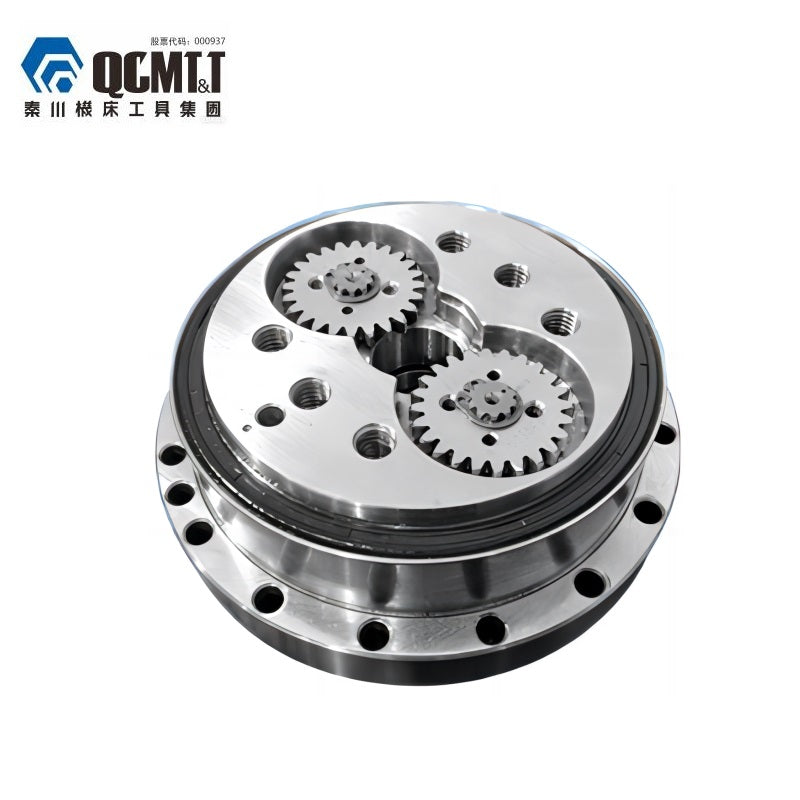

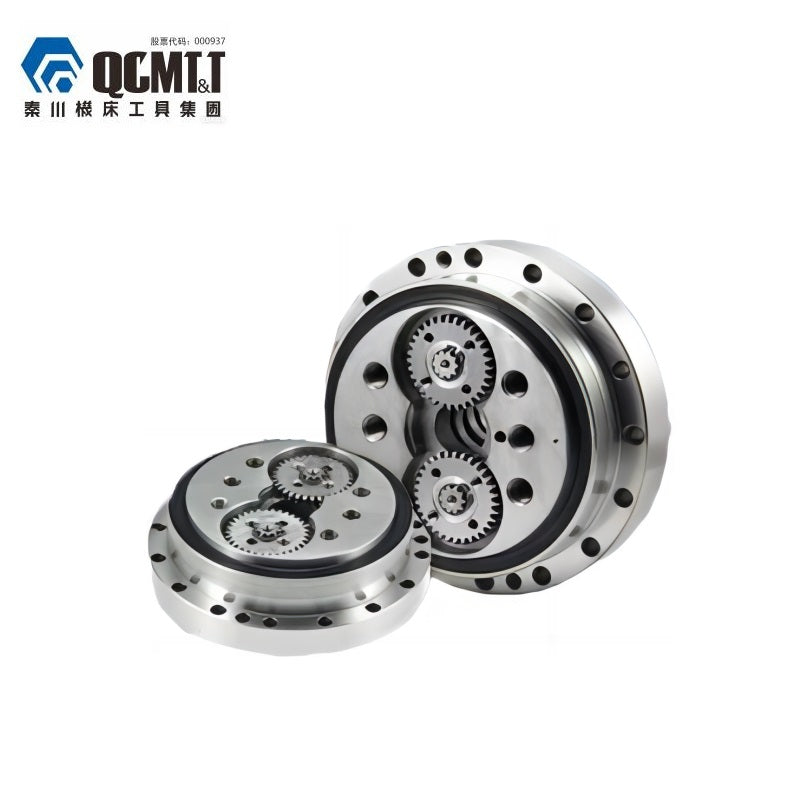

Qinchuan BX20E Reducer

$460.00
Version
Speed Ratio

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Bending Moment Stiffness 372 (38) Nm/arc.min. (kgf-m/arc.min.)
Permissible Bending Moment 882 (90) Nm (kgf-m)
Max. Momentary Permissible Bending Moment 1764 (180) Nm (kgf-m)
Permissible Max. Output Speed 75 r/min
Permissible Torque for Start/Stop 412 (42) Nm (kgf-m)
Max. Momentary Permissible Torque 833 (85) Nm (kgf-m)
Lost Motion (MAX) 1 Arc.min.
Torsional Stiffness 49 (5) Nm/arc.min. (kgf-m/arc.min.)
Weight 4.7 Kg

Output Speed Output Torque Input Power
5 r/min 231 (23.6) Nm (kgf-m) 0.16 kW
10 r/min 188 (19.2) Nm (kgf-m) 0.26 kW
15 r/min 167 (17.0) Nm (kgf-m) 0.35 kW
20 r/min 153 (15.6) Nm (kgf-m) 0.43 kW
25 r/min 143 (14.6) Nm (kgf-m) 0.50 kW
30 r/min 135 (13.8) Nm (kgf-m) 0.57 kW
40 r/min 124 (12.7) Nm (kgf-m) 0.70 kW
50 r/min 115 (11.8) Nm (kgf-m) 0.81 kW
60 r/min 110 (11.2) Nm (kgf-m) 0.92 kW

Gear Ratio (Planetary Carrier / Pin Gear) Moment of Inertia I
57 / 56 9.66 × 10-4 Kg-m²
81 / 80 6.07 × 10-4 Kg-m²
105 / 104 4.32 × 10-4 Kg-m²
121 / 120 3.56 × 10-4 Kg-m²
141 / 140 2.88 × 10-4 Kg-m²
161 / 160 2.39 × 10-4 Kg-m²
