Qinchuan

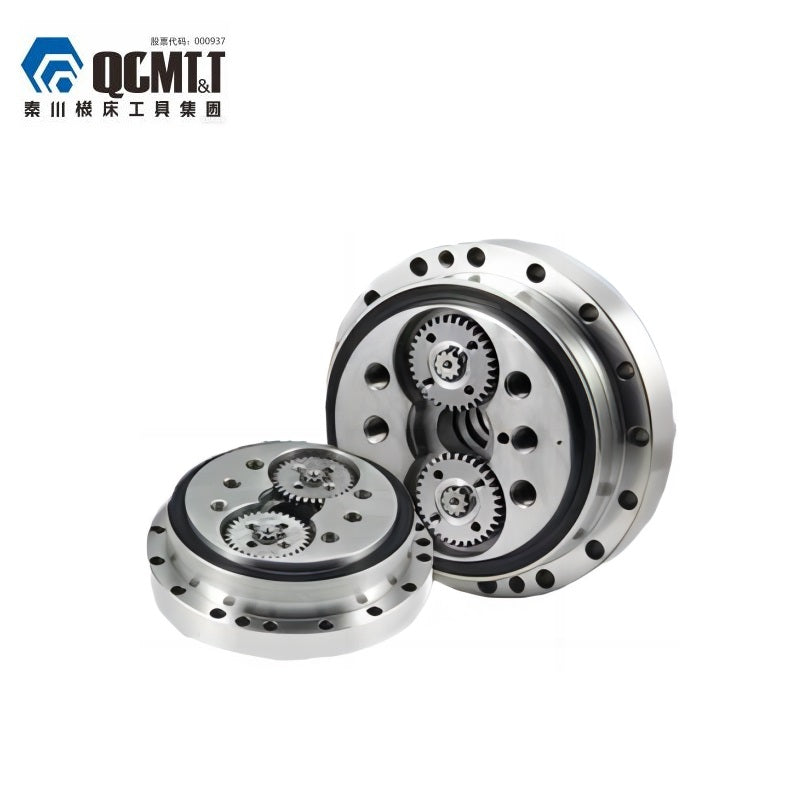

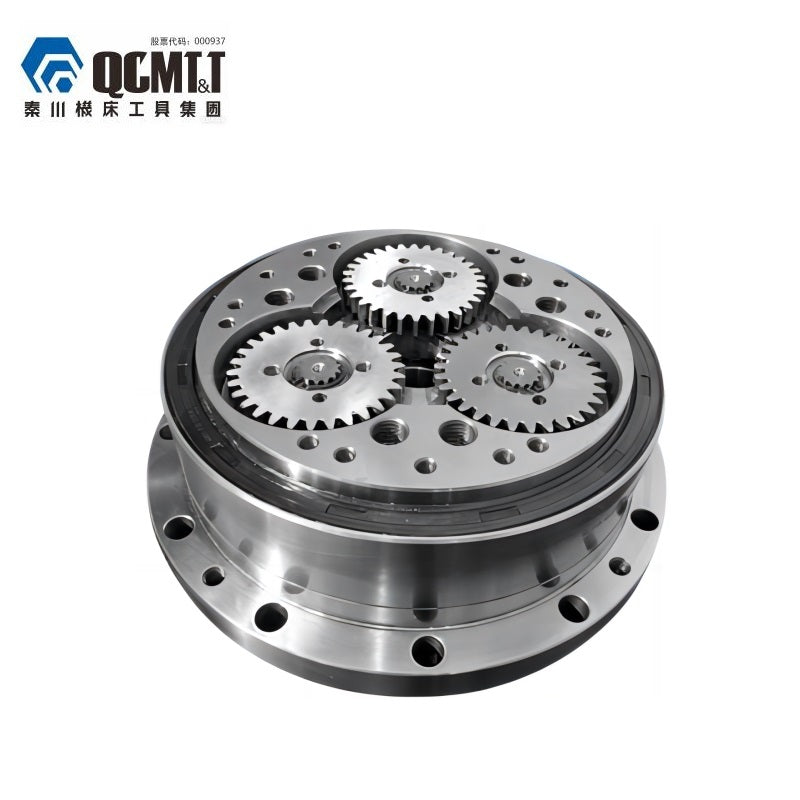

Qinchuan BX160E Reducer

$1,355.00
Version
Speed Ratio

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Bending Moment Stiffness 2940 (300) Nm/arc.min. (kgf-m/arc.min.)
Permissible Bending Moment 3920 (400) Nm (kgf-m)
Max. Momentary Permissible Bending Moment 7840 (800) Nm (kgf-m)
Permissible Max. Output Speed 45 r/min
Permissible Torque for Start/Stop 3920 (400) Nm (kgf-m)
Max. Momentary Permissible Torque 7840 (800) Nm (kgf-m)
Lost Motion (MAX) 1 Arc.min.
Torsional Stiffness 392 (40) Nm/arc.min. (kgf-m/arc.min.)
Weight 26.4 Kg

Output Speed Output Torque Input Power
5 r/min 2176 (222) Nm (kgf-m) 1.52 kW
10 r/min 1774 (181) Nm (kgf-m) 2.48 kW
15 r/min 1568 (160) Nm (kgf-m) 3.28 kW
20 r/min 1441 (147) Nm (kgf-m) 4.02 kW
25 r/min 1343 (137) Nm (kgf-m) 4.69 kW
30 r/min 1274 (130) Nm (kgf-m) 5.34 kW

Gear Ratio (Planetary Carrier / Pin Gear) Moment of Inertia I
81 / 80 1.77 × 10-4 Kg-m²
101 / 100 1.40 × 10-4 Kg-m²
129 / 128 1.06 × 10-4 Kg-m²
145 / 144 0.87 × 10-4 Kg-m²
171 / 170 0.74 × 10-4 Kg-m²
