Qinchuan | SKU:

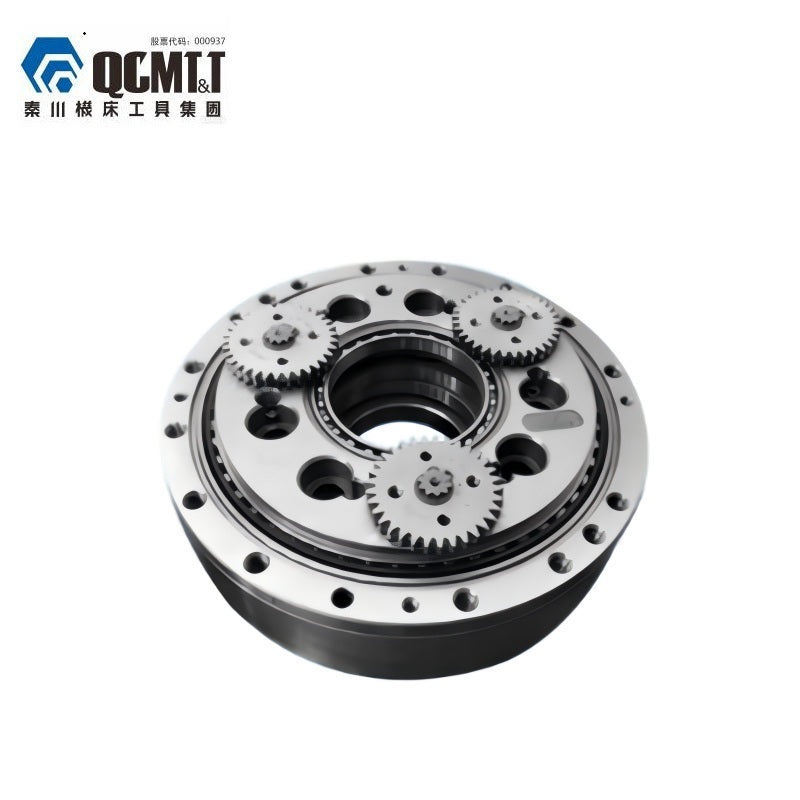

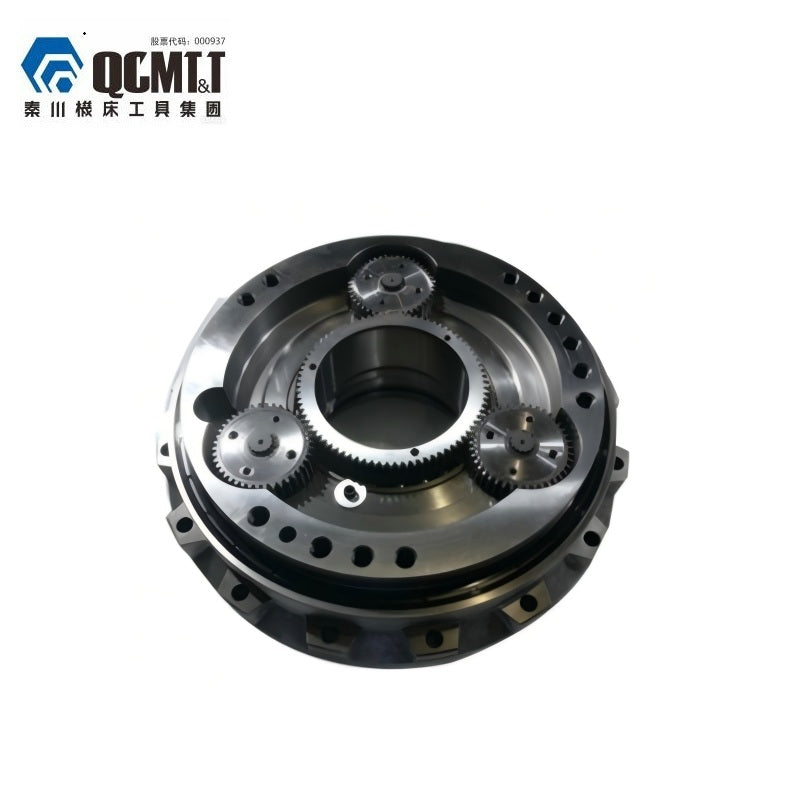

Qinchuan BX120C Reducer
Regular price
$1,650.00
Unit price
Qinchuan BX120C Reducer - BX120C / 36.75 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Qinchuan BX120C Reducer
Regular price
$1,650.00
Unit price
Qinchuan BX120C Reducer - BX120C / 36.75 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Reducer Standalone Speed Ratio (R₁) | 36.75 |
| Bending Moment Stiffness | 4263 Nm/arc.min. (435 kgf-m/arc.min.) |
| Permissible Bending Moment | 3920 Nm (400 kgf-m) |
| Max. Momentary Permissible Bending Moment | 7840 Nm (800 kgf-m) |
| Permissible Max. Output Speed | 40 r/min |
| Permissible Torque for Start/Stop | 3675 Nm (375 kgf-m) |
| Max. Momentary Permissible Torque | 7350 Nm (750 kgf-m) |
| Lost Motion (MAX) | 1′ Arc.min. |
| Torsional Stiffness | 588 Nm/arc.min. (60 kgf-m/arc.min.) |
| Moment of Inertia I (Reducer Standalone) | 0.497×10⁻³ Kg-m² |
| Moment of Inertia I (Standard Center Gear) | 0.954×10⁻² Kg-m² |
| Weight | 19.5 Kg |
| Output Speed | Output Torque | Input Power |
|---|---|---|
| 5 r/min | 1634 Nm (166.8 kgf-m) | 1.14 kW |
| 10 r/min | 1328 Nm (135.6 kgf-m) | 1.85 kW |
| 15 r/min | 1176 Nm (120 kgf-m) | 2.46 kW |
| 20 r/min | 1079 Nm (110.1 kgf-m) | 3.00 kW |
| 25 r/min | 1009 Nm (103 kgf-m) | 3.51 kW |
| 30 r/min | 955 Nm (97.5 kgf-m) | 3.99 kW |
| 40 r/min | 846 Nm (89.4 kgf-m) | 4.88 kW |
