Qinchuan

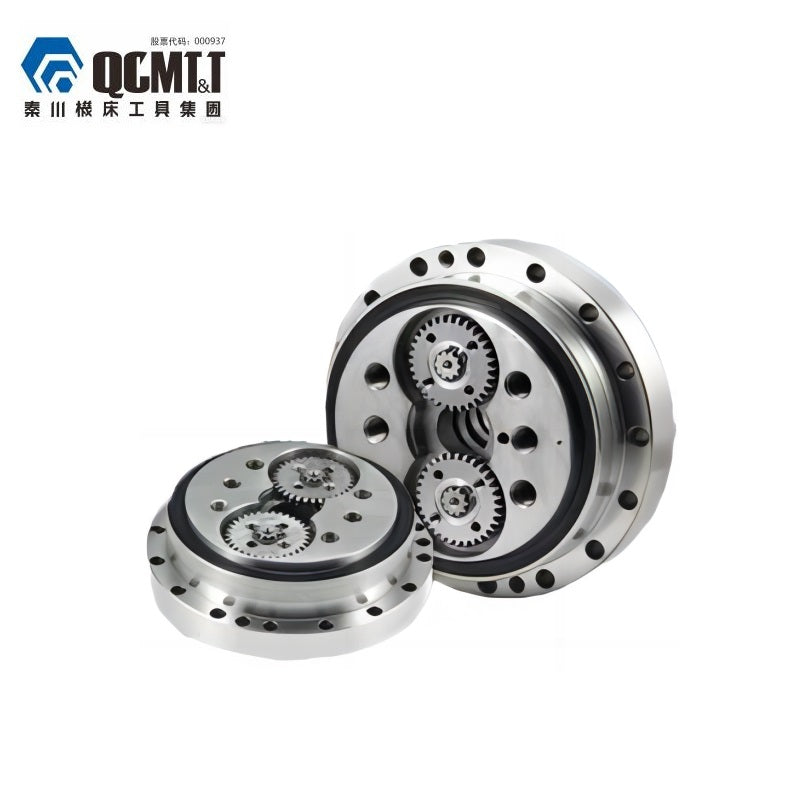

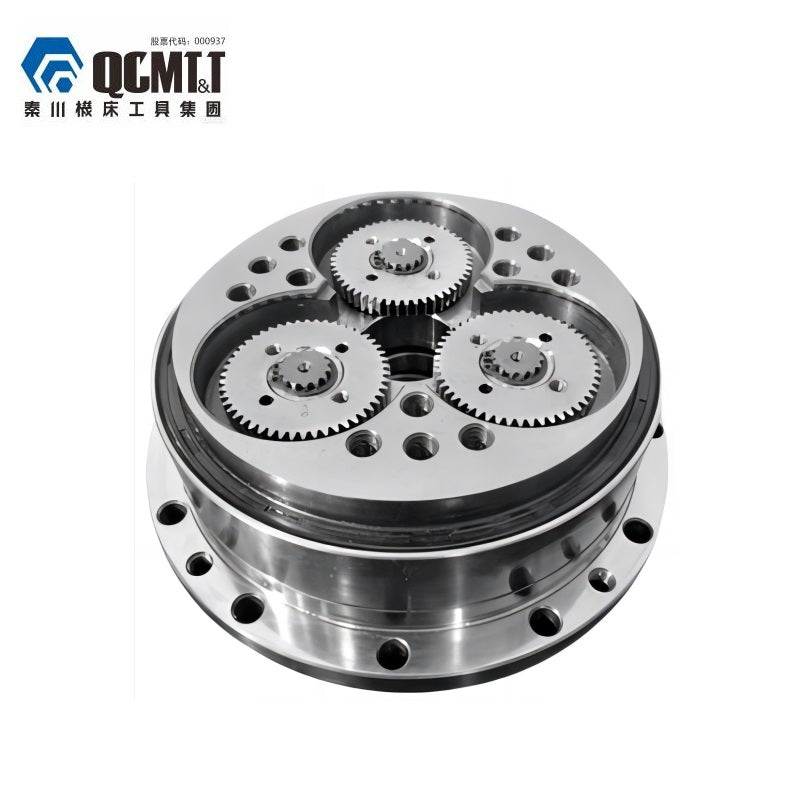

Qinchuan BX110E Reducer

$1,035.00
Version
Speed Ratio

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Bending Moment Stiffness 1470 (150) Nm/arc.min. (kgf-m/arc.min.)
Permissible Bending Moment 2940 (300) Nm (kgf-m)
Max. Momentary Permissible Bending Moment 5880 (600) Nm (kgf-m)
Permissible Max. Output Speed 50 r/min
Permissible Torque for Start/Stop 2695 (275) Nm (kgf-m)
Max. Momentary Permissible Torque 5390 (550) Nm (kgf-m)
Lost Motion (MAX) 1 Arc.min.
Torsional Stiffness 294 (30) Nm/arc.min. (kgf-m/arc.min.)
Weight 17.4 Kg

Output Speed Output Torque Input Power
5 r/min 1499 (153) Nm (kgf-m) 1.05 kW
10 r/min 1215 (124) Nm (kgf-m) 1.70 kW
15 r/min 1078 (110) Nm (kgf-m) 2.26 kW
20 r/min 990 (101) Nm (kgf-m) 2.76 kW
25 r/min 925 (94.4) Nm (kgf-m) 3.23 kW
30 r/min 875 (89.3) Nm (kgf-m) 3.67 kW
40 r/min 804 (82.0) Nm (kgf-m) 4.49 kW

Gear Ratio (Planetary Carrier / Pin Gear) Moment of Inertia I
81 / 80 9.88 × 10-4 Kg-m²
111 / 110 6.96 × 10-4 Kg-m²
161 / 160 4.36 × 10-4 Kg-m²
175.28 / 174.28 3.89 × 10-4 Kg-m²
