Qinchuan

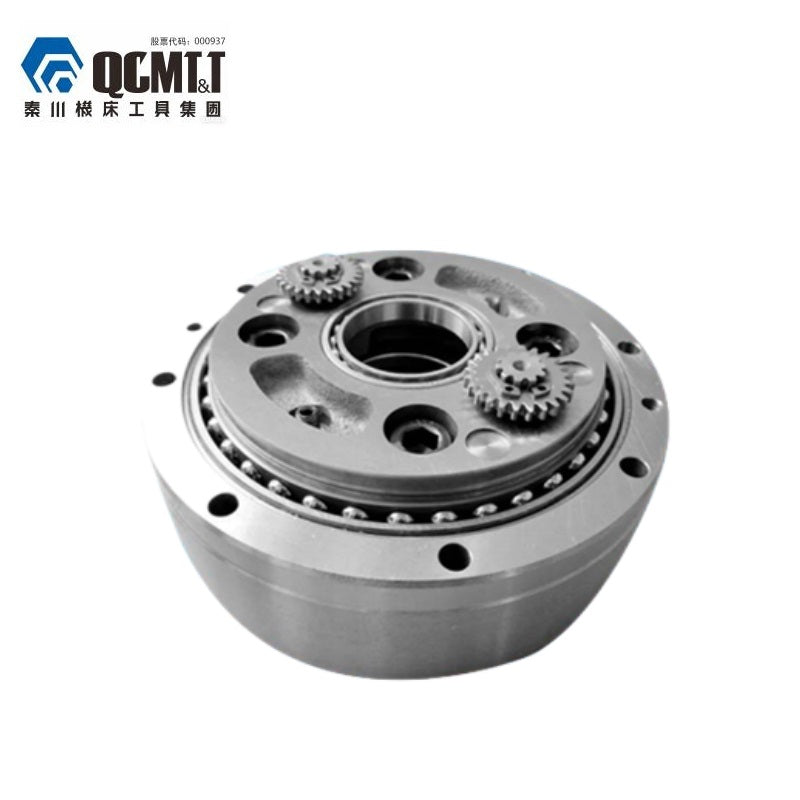

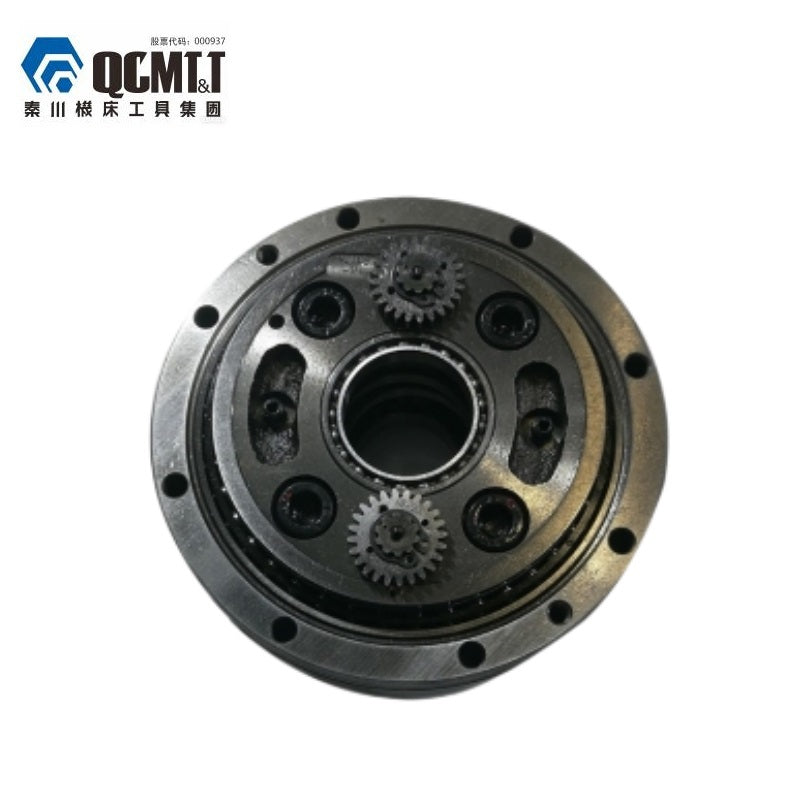

Qinchuan BX10C Reducer

$760.00
Version
Speed Ratio

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Reducer Standalone Speed Ratio (R₁) 36.57 (1390/38)
Bending Moment Stiffness 1068 (109) Nm/arc.min. (kgf-m/arc.min.)
Permissible Bending Moment 980 (100) Nm (kgf-m)
Max. Momentary Permissible Bending Moment 1960 (200) Nm (kgf-m)
Permissible Max. Output Speed 60 r/min
Permissible Torque for Start/Stop 662 (67.5) Nm (kgf-m)
Max. Momentary Permissible Torque 1323 (135) Nm (kgf-m)
Lost Motion (MAX) 1 Arc.min.
Torsional Stiffness 147 (15) Nm/arc.min. (kgf-m/arc.min.)
Moment of Inertia I (Reducer Standalone) 0.550 × 10-4 Kg-m²
Moment of Inertia I (Standard Center Gear) 0.563 × 10-3 Kg-m²
Weight 8.5 Kg

Output Speed Output Torque Input Power
5 r/min 368 (37.5) Nm (kgf-m) 0.26 kW
10 r/min 299 (30.5) Nm (kgf-m) 0.42 kW
15 r/min 265 (27) Nm (kgf-m) 0.55 kW
20 r/min 243 (24.8) Nm (kgf-m) 0.68 kW
25 r/min 227 (23.2) Nm (kgf-m) 0.79 kW
30 r/min 215 (21.9) Nm (kgf-m) 0.90 kW
40 r/min 197 (20.1) Nm (kgf-m) 1.10 kW
50 r/min 184 (18.8) Nm (kgf-m) 1.29 kW
60 r/min 174 (17.8) Nm (kgf-m) 1.46 kW
