PACECAT | SKU:

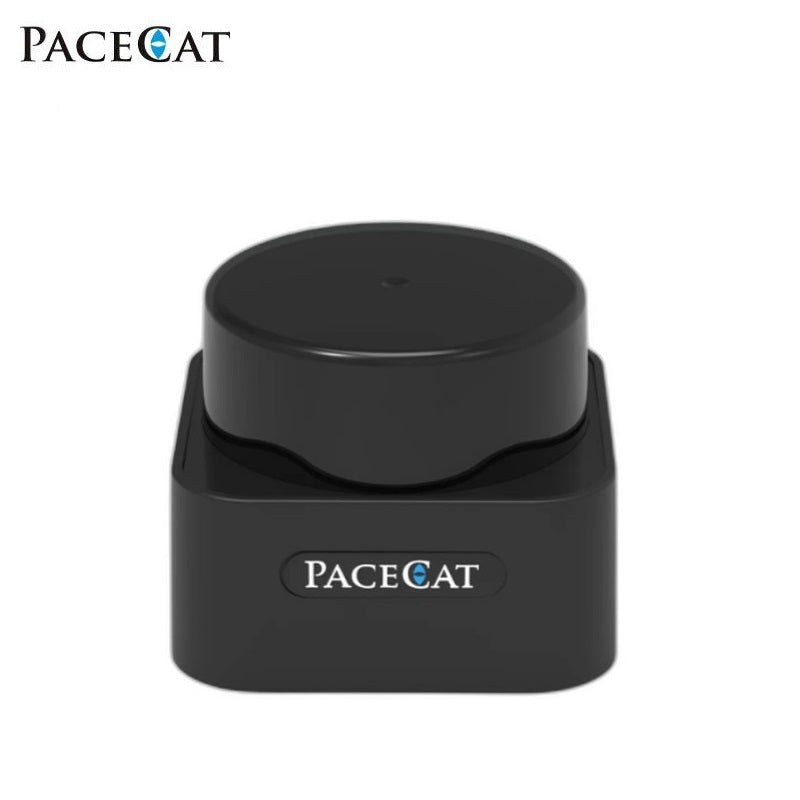

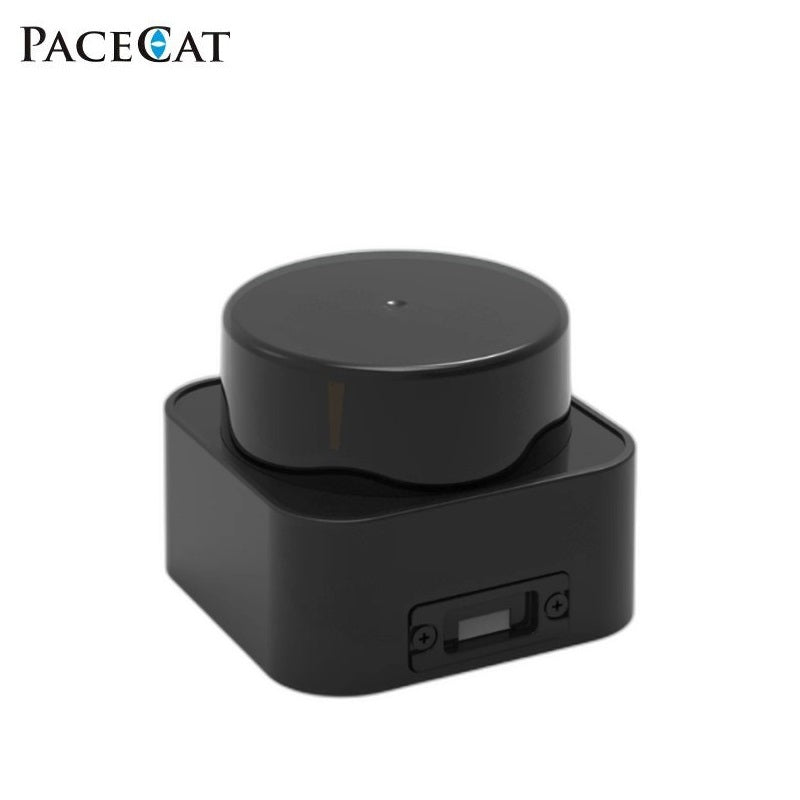

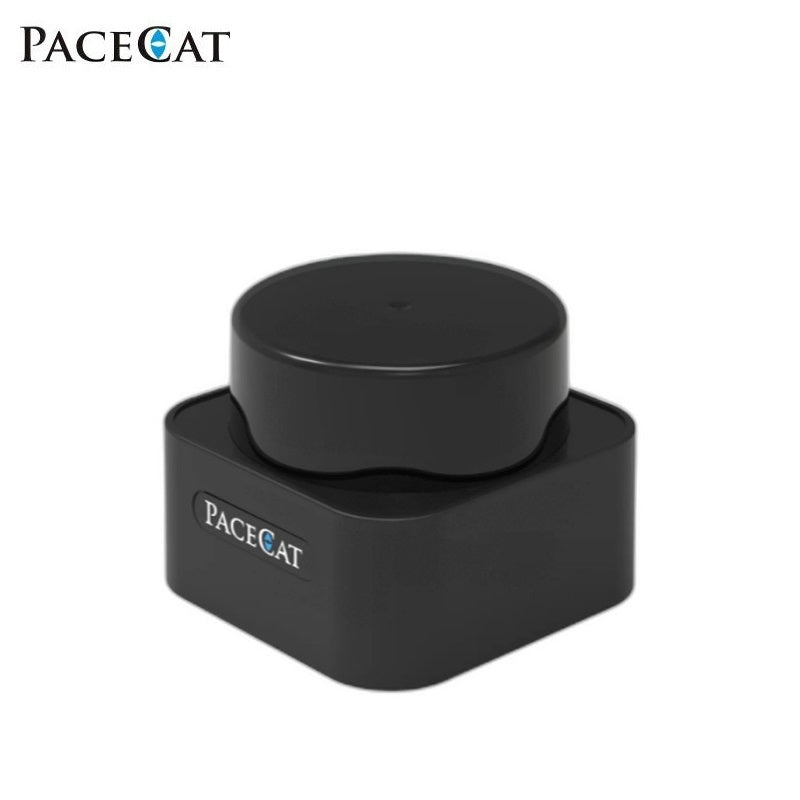

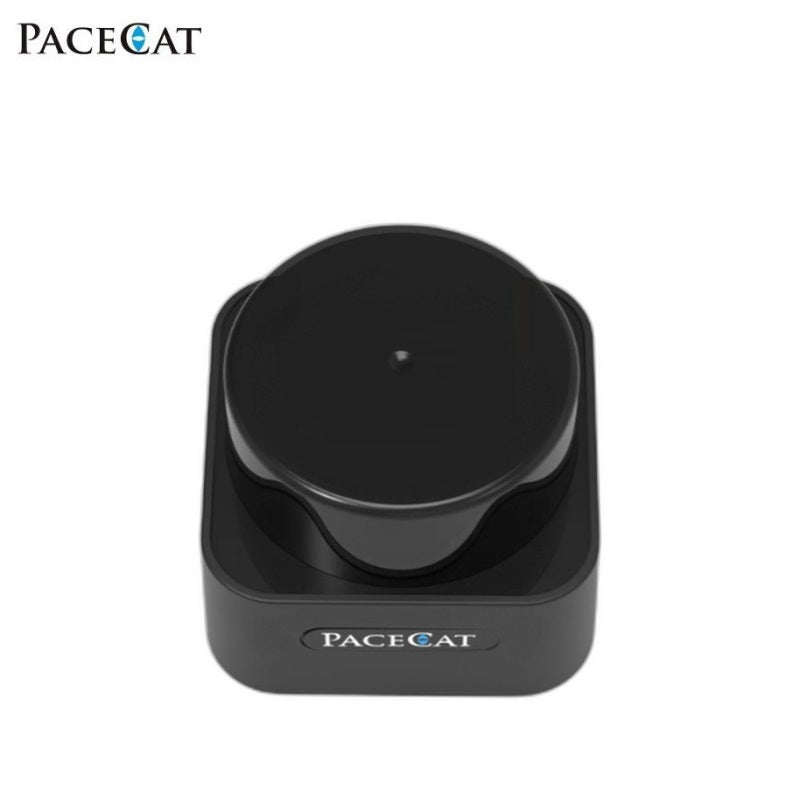

PACECAT LDS-E300 LiDAR
Regular price
$590.00
Unit price
PACECAT LDS-E300 LiDAR - LDS-E300-R is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
PACECAT LDS-E300 LiDAR
Regular price
$590.00
Unit price
PACECAT LDS-E300 LiDAR - LDS-E300-R is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | LDS-E300-E/-R |
| Laser Wavelength | 905nm±15nm |
| Measuring Distance | 0.1-25m (90%) 0.1-10m (10%) |
| Laser Frequency | 18kHz |
| Refresh Frequency |
10HZ，15HZ，20HZ，25HZ（default:15HZ） |
| Echo Mode | Single Pulse |
| Echo Intensity | 0-254 |
| Drive Method / Motor | Built-in Brushless Motor |
| Horizontal Field of View (FOV) | 360° |
| Horizontal Angular Resolution |
0.2°@10HZ/0.3°@15HZ |
| Range Accuracy | ±30mm |
| Distance Resolution | mm |
| Data Interface |
E300-R：UART 3.3V E300-E：Ethernet |
| Anti-glare | >80000LX |
| Reference Weight | <180g |
| Working Voltage |
E300-R：5.1VDC±0.2V E300-E：10VDC~26VDC |
| Working Temperature | -10°C~+50°C |
| Power Consumption | ≤3W |
| Protection Grade (IP) | NA |
| Device Dimensions (mm) | 56.8×56.8×44mm |
