PACECAT | SKU:
PACECAT LDS-E200 LiDAR
Regular price
$390.00
Unit price
PACECAT LDS-E200 LiDAR - LDS-E200-R is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments

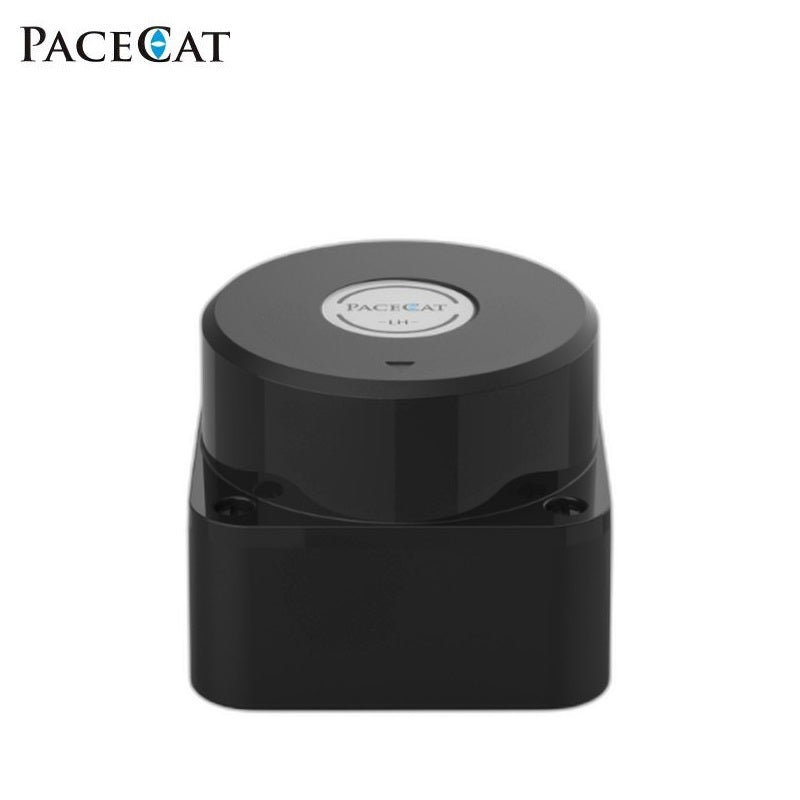

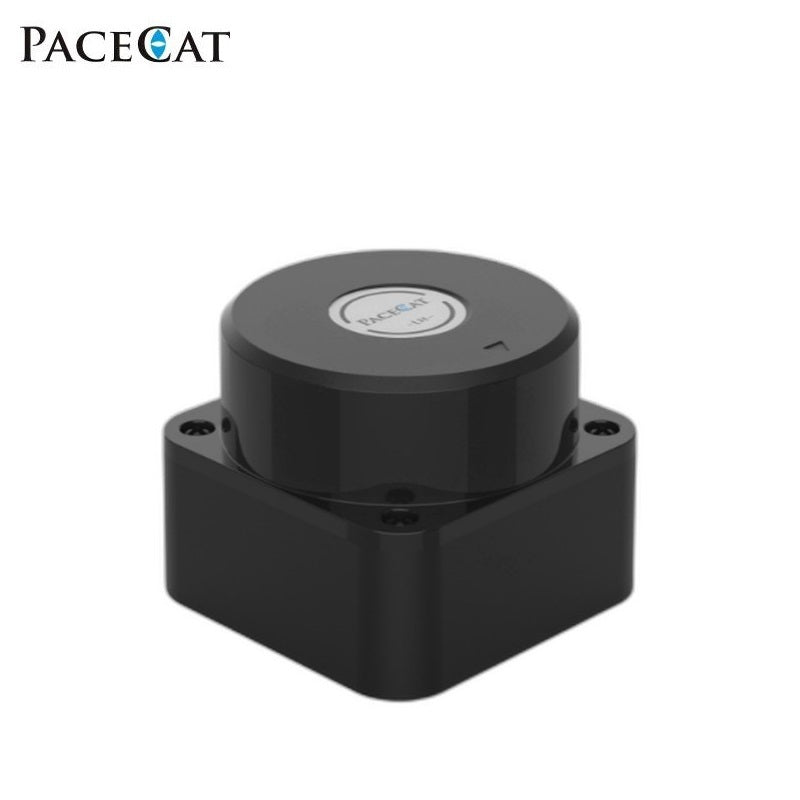

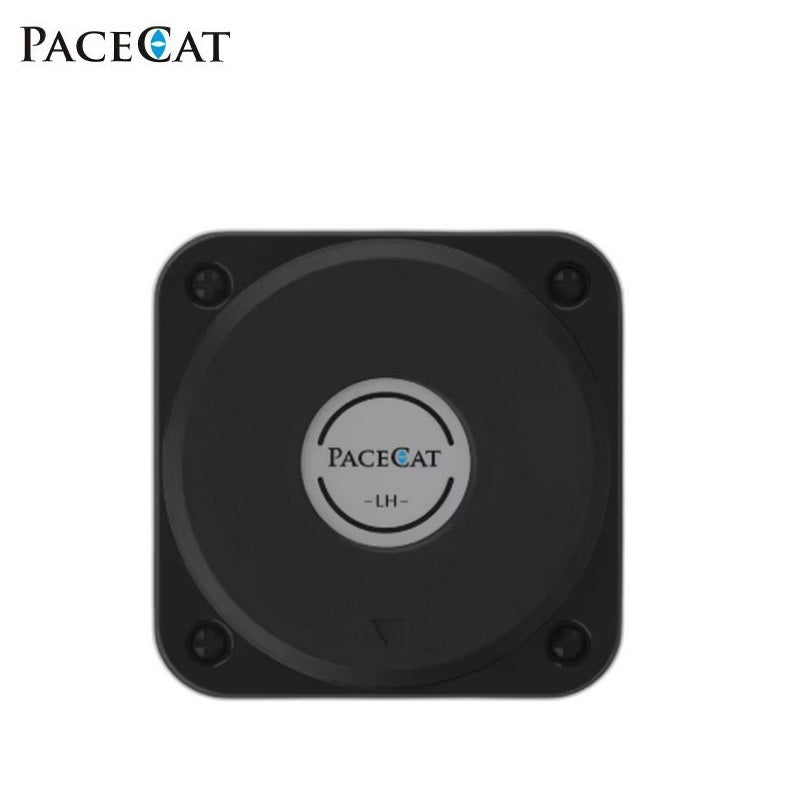

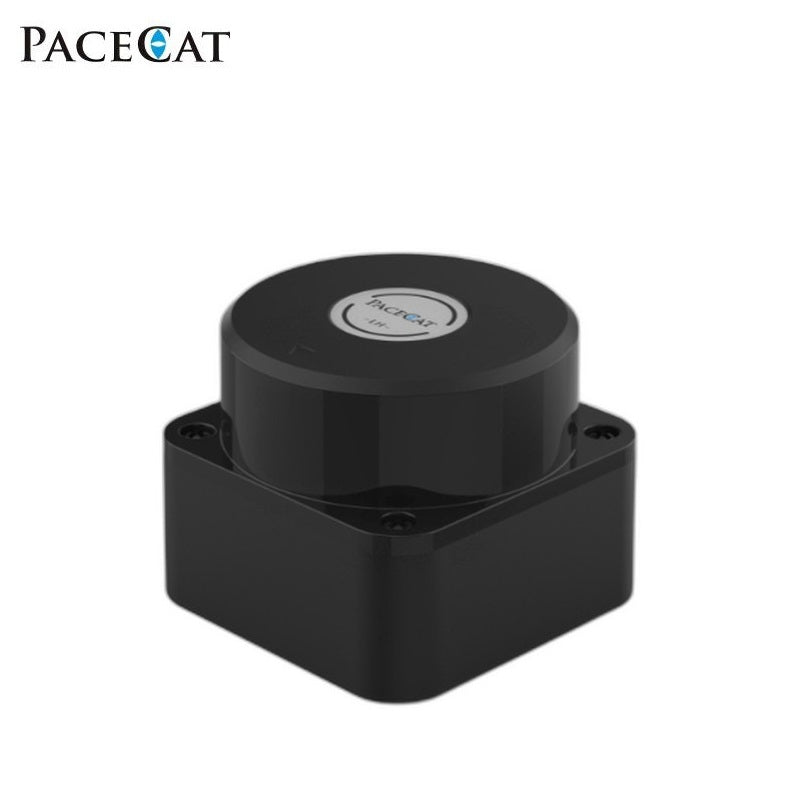

PACECAT LDS-E200 LiDAR
Regular priceFrom
$390.00
Unit price
PACECAT LDS-E200 LiDAR - LDS-E200-R is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | LDS-E200 |
| Laser Wavelength | 905nm±15nm |
| Detection Range |
0.1-20m (90%) 0.1-7m (10%) |
| Laser Frequency | 18K |
| Refresh Rate | 10Hz, 15Hz (default:10Hz) |
| Echo Mode | Single Pulse |
| Echo Intensity | 0-254 |
| Drive Method | Built-in Brushless DC Motor |
| Horizontal FOV | 360° |
| Horizontal Angular Resolution | 0.2°@10Hz, 0.3°@15Hz |
| Range Accuracy | ±30mm |
| Range Resolution | mm |
| Data Interface | E200-R: UART 3.3V |
| Anti-glare | >80000LX |
| Reference Weight | E200-R: <60g |
| Operating Voltage / Input Voltage | 5.1VDC±0.2VDC |
| Operating Temperature | -10°C~+50°C |
| Power Consumption | ≤ 2.5W |
| Protection Grade | NA |
| Device Dimensions (mm) | 42.6×42.6×35mm |
