LSENS

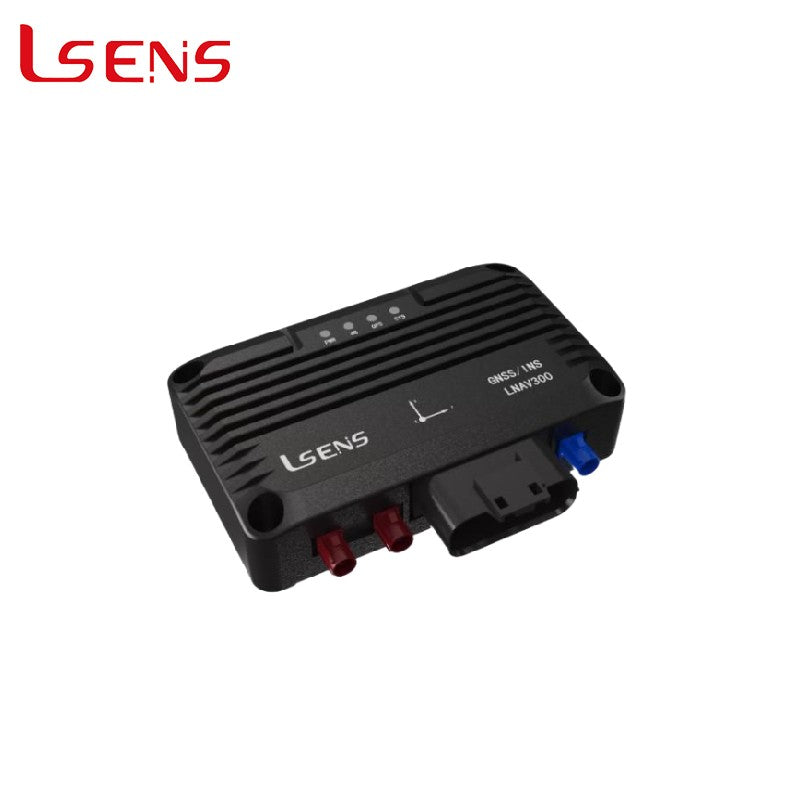

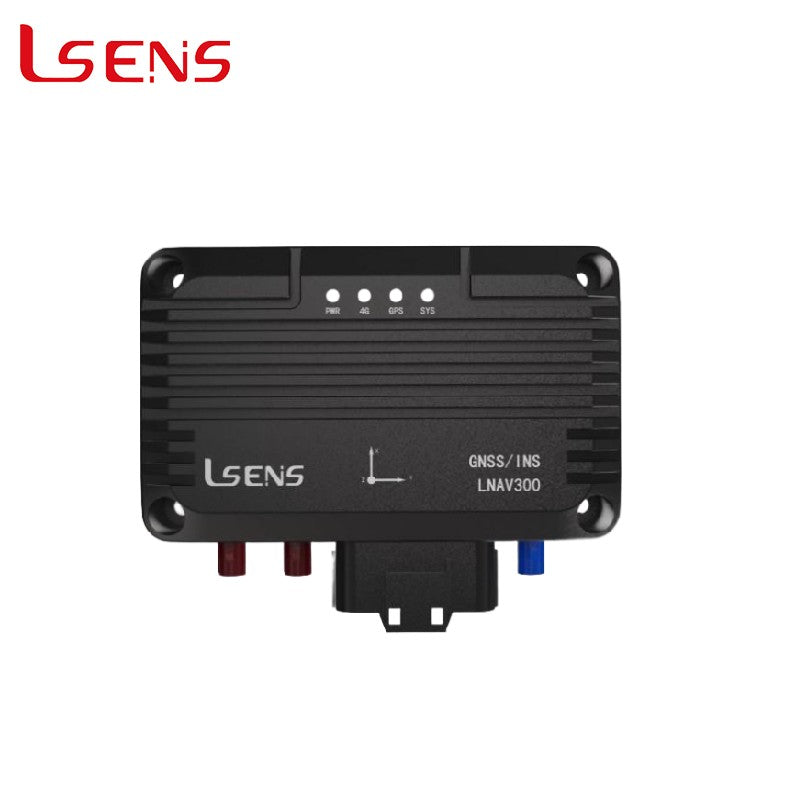

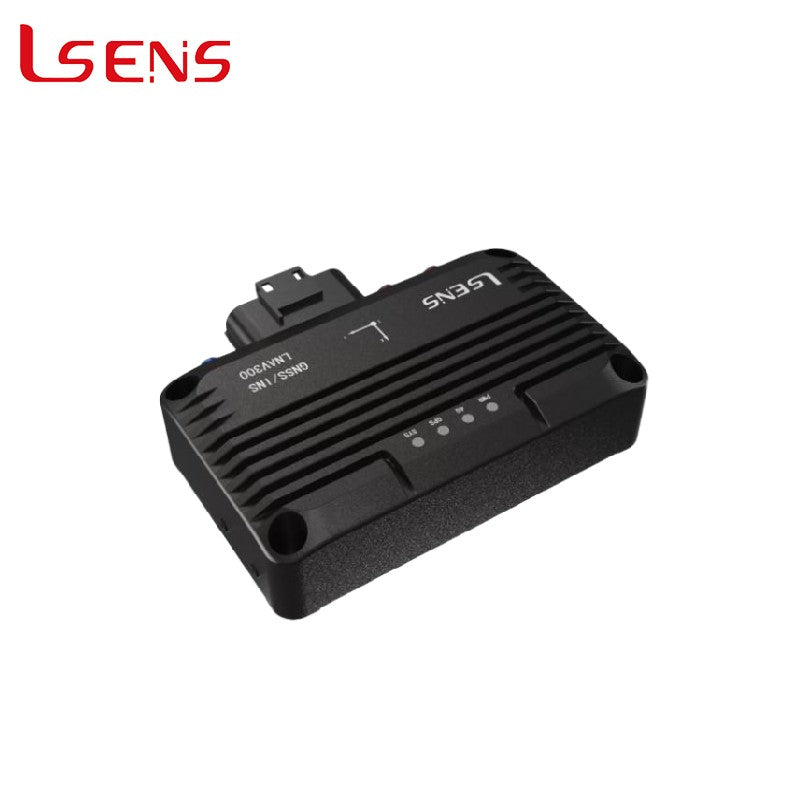

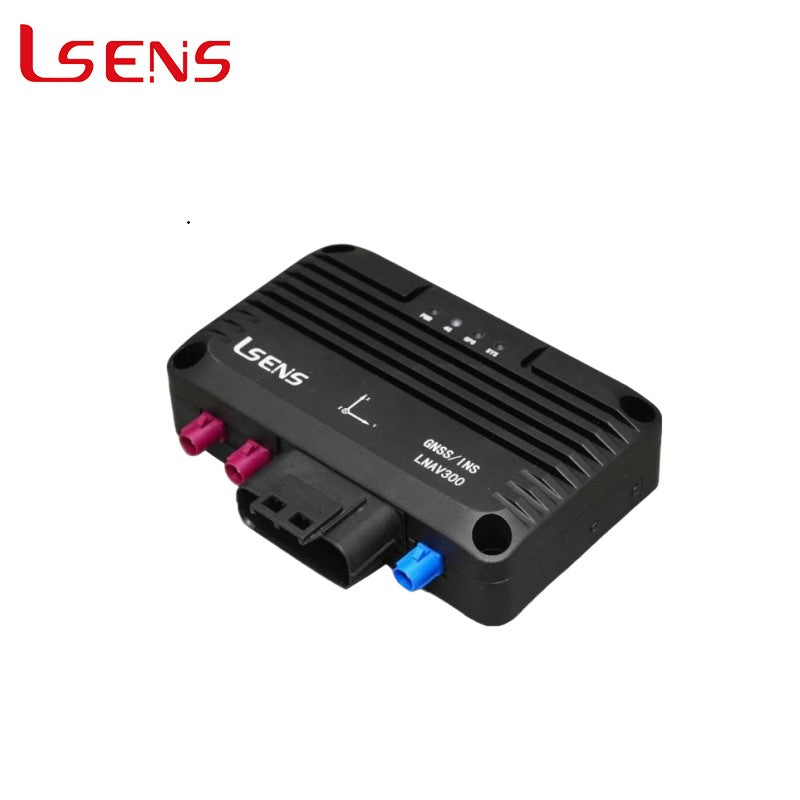

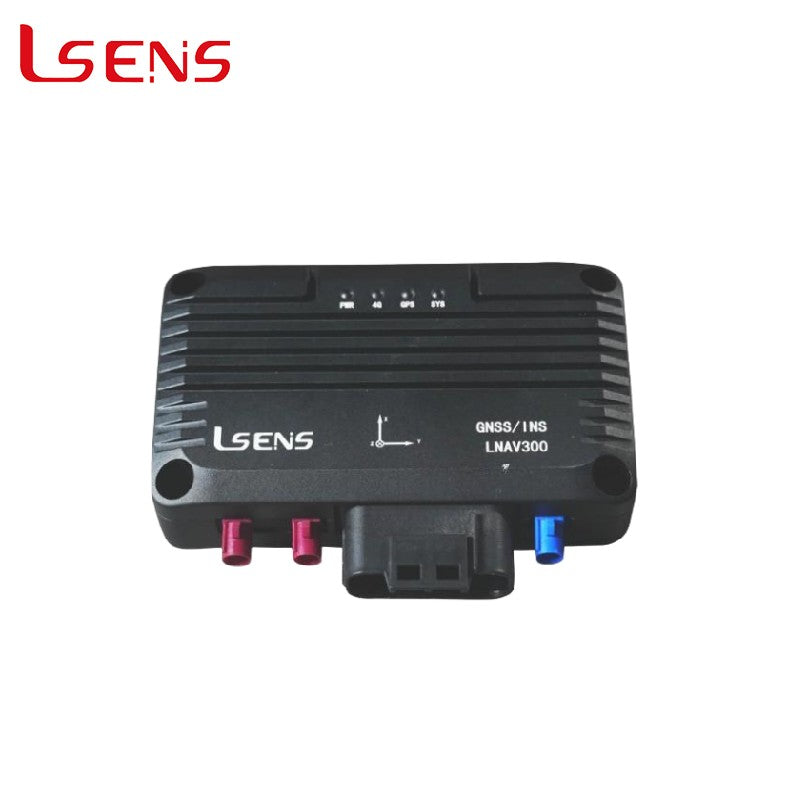

LSENS LNAV300 Sensor

$3,000.00

Version

LNAV300

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
GNSS Signals
Primary Antenna	BDS: B1I, B2I, B3I; GPS: L1C/A, L2P(Y)/L2C, L5; GLONASS: G1, G2; Galileo: E1, E5a, E5b; QZSS: L1, L2, L5
Secondary Antenna	BDS: B1I, B2I, B3I; GPS: L1C/A, L2C; GLONASS: G1, G2; Galileo: E1, E5b; QZSS: L1, L2
Time to First Fix (TTFF)
Cold Start	30 s (typical)
Hot Start	4 s (typical)
RTK Performance
Position Accuracy	Horizontal: 0.8 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm
Heading Accuracy	0.1°/2 m baseline
Velocity Accuracy	0.03 m/s
Update Rate	10 Hz
RTK Initialization Time	5 s (typical)
IMU Performance
Gyroscope Range	±300°/s
Gyroscope Bias Instability	2°/h
Accelerometer Range	±6g
Accelerometer Bias Instability	0.015 mg
Integrated Navigation (GNSS Outage)
0 s Outage	Position: 1.5 cm + 1 ppm; Velocity: 0.03 m/s; Attitude: 0.3°; Heading: 0.1°/2 m baseline
60 s Outage (with Odometer)	Position: 0.3%; Velocity: 0.03 m/s; Attitude: 0.3°; Heading: 0.3°
System Initialization Time	1 min
Data Update Rate	100 Hz
Physical & Electrical Specifications
Model	LNAV300
Communication & Power Connector	MX23A26NF1
GNSS Antenna Connector	FAKRA_D x 2
4G Antenna Connector	FAKRA_C x 1
Electrical Interfaces	1 × RS485; 2 × RS232; 2 × CAN; 3 × PPS; 1 × Power
Dimensions	123.5 L × 98 W × 30 H (mm)
Weight	≤300 g
Input Voltage (DC)	9 V – 36 V (12 V/24 V typical)
Power Consumption	2 W – 4 W (2.6 W typical)
Environmental Specifications
Operating Temperature	-40°C to +85°C
Storage Temperature	-55°C to +95°C
Ingress Protection	IP55
