LSENS

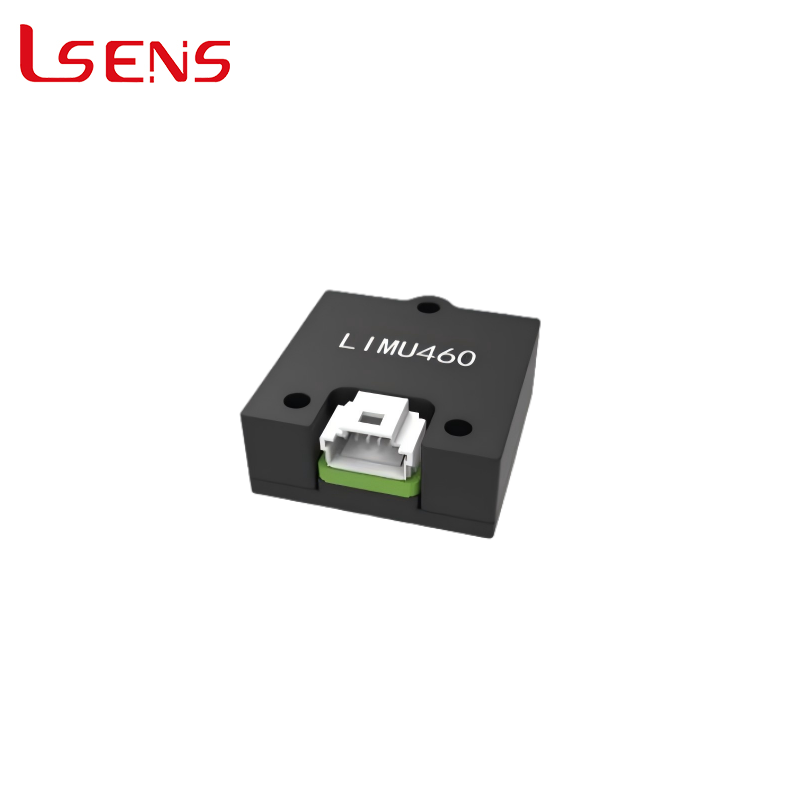

LSENS LIMU460 Sensor

$150.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information



Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Gyroscope
Measurement Range ±500°/s
Bias Instability (25°C, Allan) 3.0°/h
Bias Stability (GJB, 10s, 1σ) 10°/h
Bias Repeatability (GJB, 1σ) 50°/h
Full-Temperature Bias Stability (-40~85°C, ≤1°C/min, 1σ) 0.1°/s
Angle Random Walk 0.3°/√h
Scale Factor Nonlinearity 100 ppm
Resolution 0.01525°/s
Misalignment Error 0.02°
Bandwidth 40.8 Hz
Accelerometer
Measurement Range ±8g
Bias Instability (25°C, Allan) 30 µg
Bias Stability (GJB, 10s, 1σ) 150 µg
Bias Repeatability (GJB, 1σ) 2 mg
Full-Temperature Bias Stability (-40~85°C, ≤1°C/min, 1σ) 4 mg
Velocity Random Walk 0.04 m/s/√h
Scale Factor Nonlinearity 200 ppm
Resolution 0.244 mg
Misalignment Error 0.04°
Bandwidth 42.3 Hz
Electrical Specifications
Rated Voltage DC 5 V
Typical Power Consumption <0.25 W
Communication Interface RS422
Baud Rate 460800 bps (default, configurable)
Update Rate 200 Hz (default, configurable up to 1000 Hz)
Mechanical Specifications
Dimensions L 24.05 × W 22.4 × H 9.5 (mm)
Weight 45 g
Connector

Receptacle: 5015680607;

Connector: 5013300600
Mounting M2.5 screw mounting
Environmental Specifications
Operating Temperature -40°C to +85°C
Ingress Protection IP67
