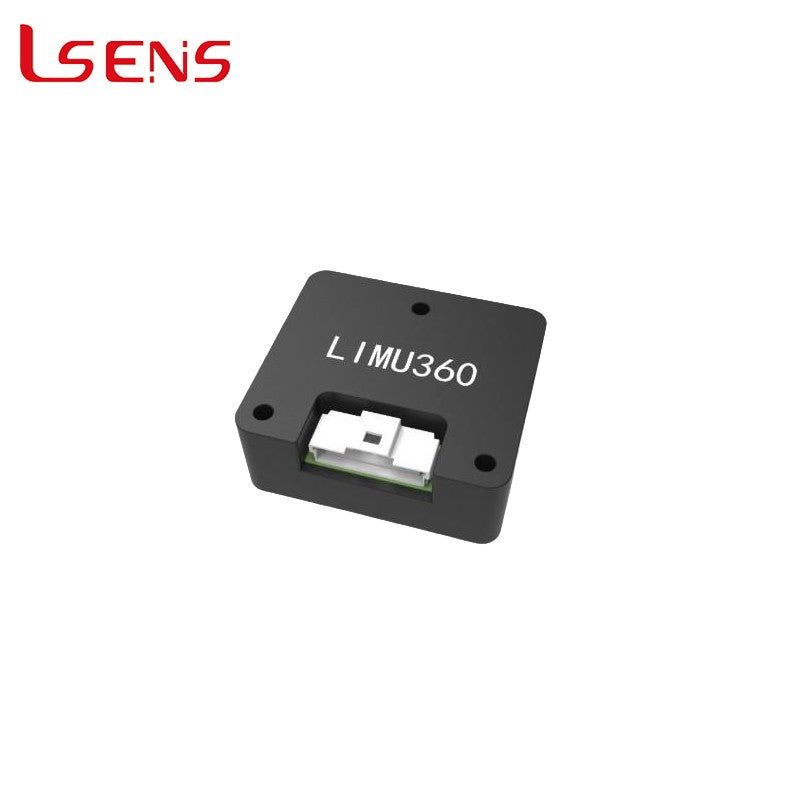

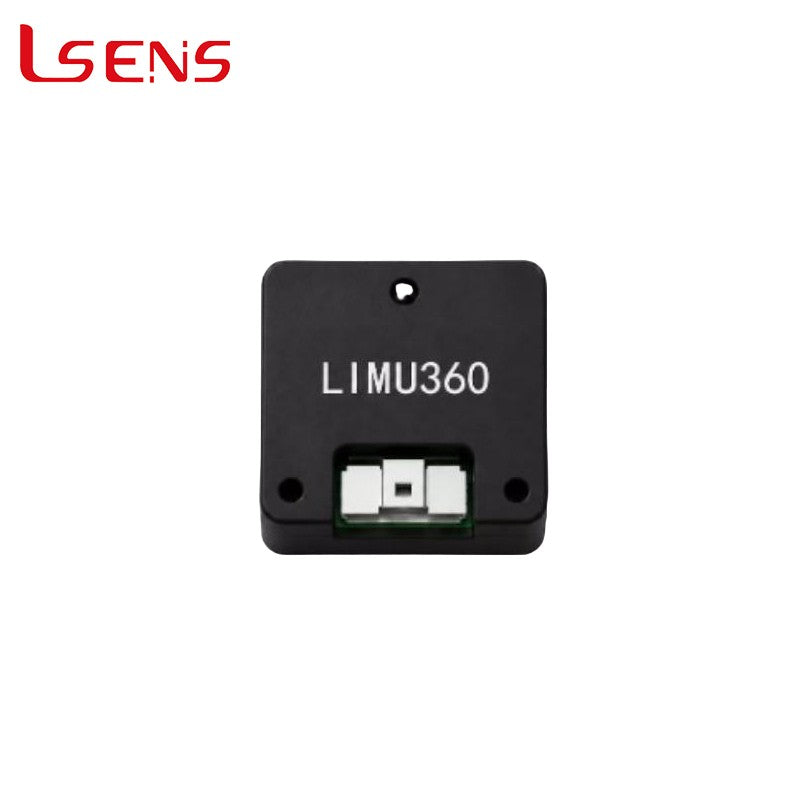

LSENS LIMU360 Sensor
Regular price
$150.00
Unit price
LSENS LIMU360 Sensor - LIMU360 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Gyroscope | |
| Measurement Range | ±2000°/s |
| Bias Instability (25°C, Allan) | 3°/h |
| Bias Stability (GJB, 10s, 1σ) | 7°/h |
| Full-Temperature Bias Stability (-40~85°C, ≤1°C/min, 1σ) | 0.03°/s |
| Angle Random Walk | 0.15°/√h |
| Scale Factor Nonlinearity | 100 ppm |
| Bandwidth | 100 Hz |
| Accelerometer | |
| Measurement Range | ±8g |
| Bias Instability (25°C, Allan) | 30 µg |
| Bias Stability (GJB, 10s, 1σ) | 60 µg |
| Full-Temperature Bias Stability (-40~85°C, ≤1°C/min, 1σ) | 3 mg |
| Velocity Random Walk | 0.018 m/s/√h |
| Scale Factor Nonlinearity | 300 ppm |
| Bandwidth | 100 Hz |
| Magnetometer | |
| Measurement Range | ±20 Gauss |
| Temperature Coefficient | 450 nT |
| Linearity | 20 µT |
| Barometer | |
| Measurement Range | 2000 hPa |
| Relative Accuracy | 0.12 hPa |
| Attitude Specifications | |
| Roll Measurement Range | ±180° |
| Pitch Measurement Range | ±90° |
| Pitch/Roll Accuracy (Static & Dynamic) | 0.15° |
| Heading Static Drift (6DOF, 2h Stationary) | 0.2° |
| Heading Magnetic Axis (AHRS, No Magnetic Interference) | 3° |
| Heading Rotation Error (6DOF, 10 Rotations at 100°/s) | 0.8° |
| Electrical Specifications | |
| Rated Voltage | 5 V DC |
| Typical Power Consumption | ≤0.3 W |
| Communication Interfaces | RS232, CAN-FD |
| Update Rate | 200 Hz (default, configurable up to 1000 Hz) |
| Mechanical Specifications | |
| Dimensions | L 31.5 × W 28 × H 12 (mm) |
| Weight | Approx. 17 g |

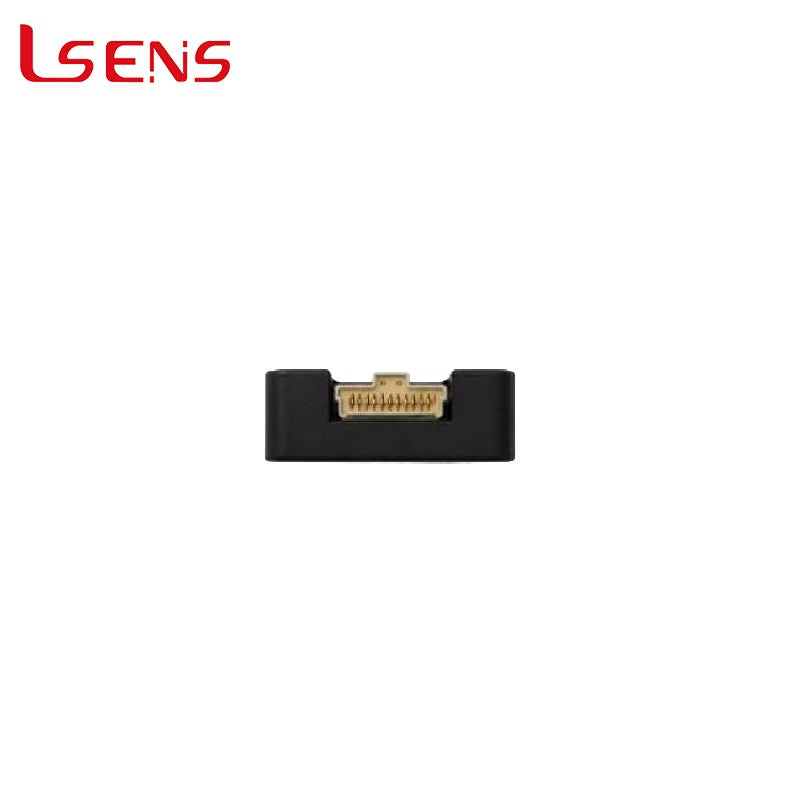

| Connector |
Receptacle: 5015681207; Connector: 5013301200 |

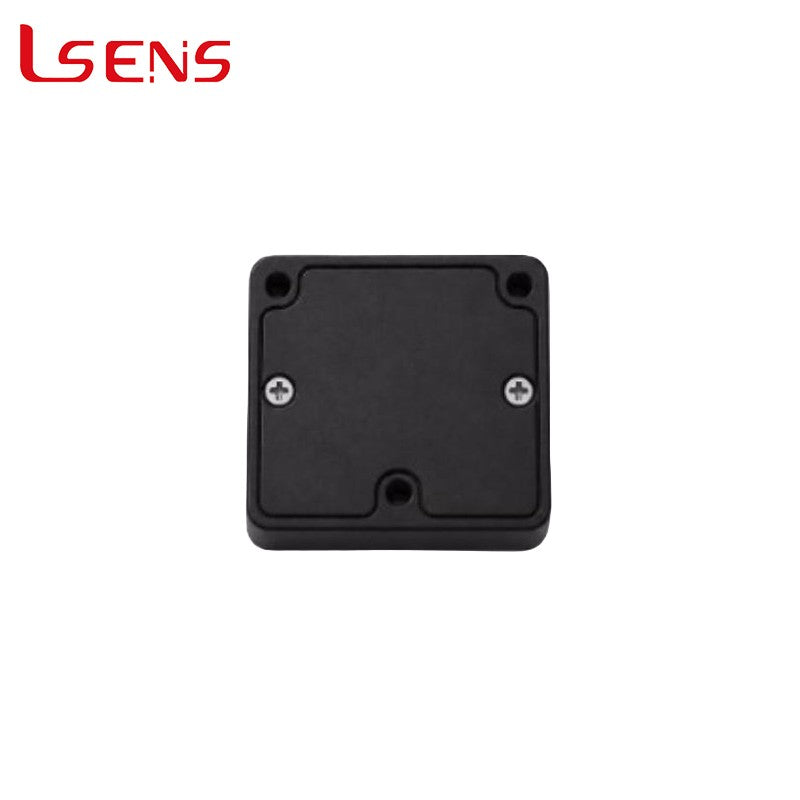

| Mounting | M2 screw mounting |
| Environmental Specifications | |
| Operating Temperature | -40°C to +85°C |
