Livox

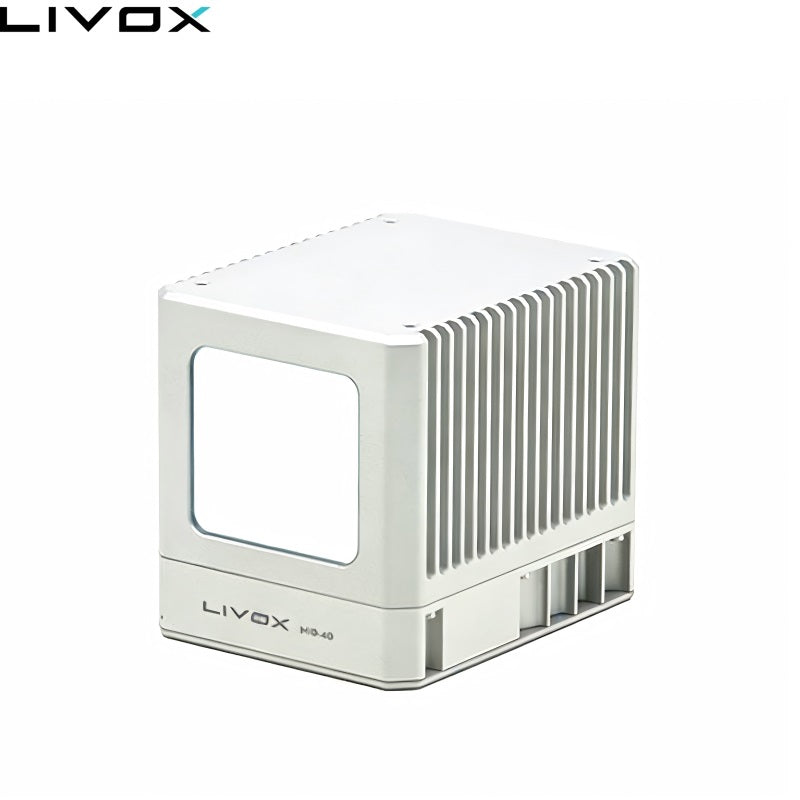

Livox MID-40 LiDAR

$849.00

Version

MID-40 LiDAR

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Parameter	Value
Model	Mid-40
Laser Wavelength	905 nm
Laser Safety	Class 1 (IEC60825-1)
Detection Range (@ 100 klx)	90 m @ 10% reflectivity 130 m @ 20% reflectivity 260 m @ 80% reflectivity

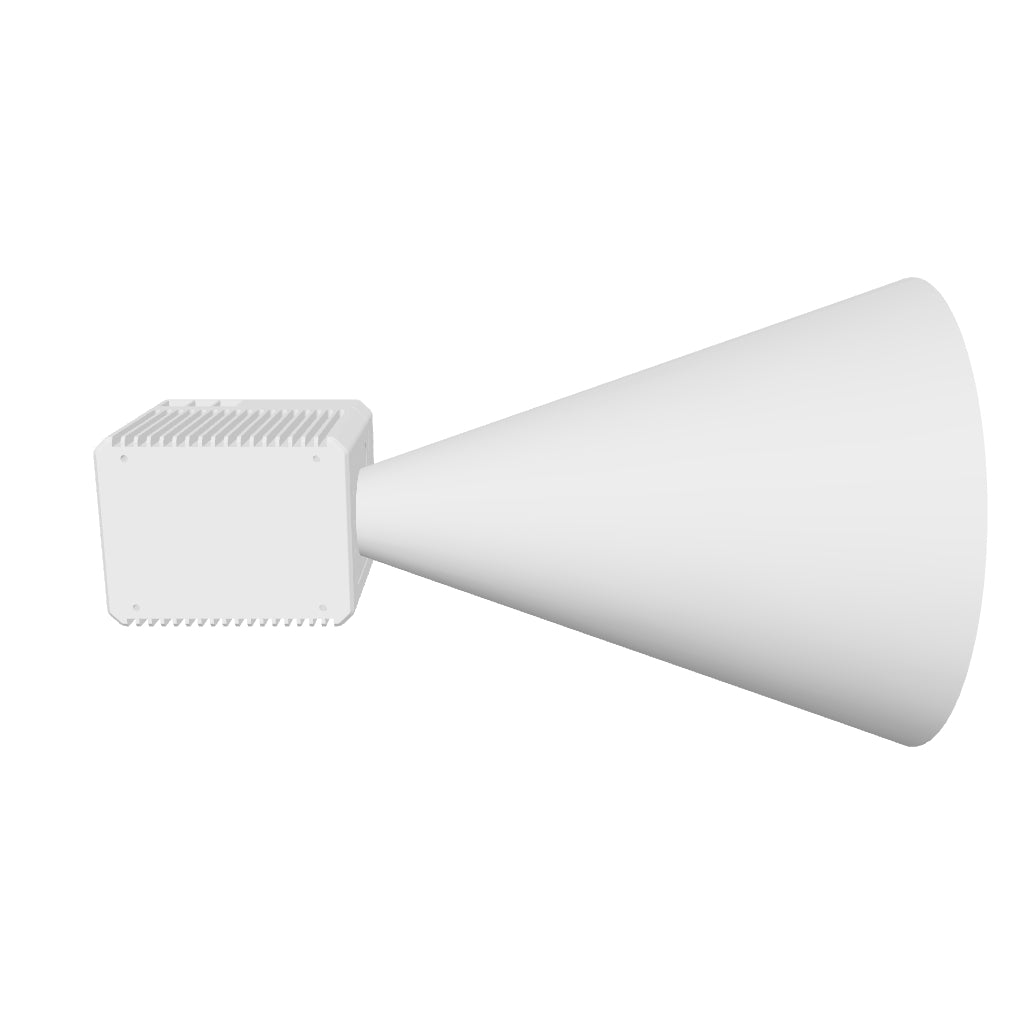

FOV	38.4° Circular (Mid-40) 98.4° (Horizontal) × 38.4° (Vertical) (Mid-100)
Range Precision (1σ @ 20 m)	2 cm¹
Angular Precision	< 0.1º
Beam Divergence	0.28° (Vertical) × 0.03° (Horizontal)
Point Rate	100,000 points/s (Mid-40)
FOV Coverage	20% @ 0.1 s, 68% @0.5 s, 93% @ 1 s ²
False Alarm Rate (@ 100 klx) ³	< 0.01%
Operating Temperature	-4˚F to 149˚F (-20˚C to 65˚C)
IP Rating	IP67⁴
Power	10 W typical⁵ (Mid-40)
Voltage	10 ~ 16 V DC（Typical 12 V DC）
Interface	Ethernet
Data synchronization	IEEE 1588-2008 (PTPv2), PPS (Pulse Per Second)
Dimensions	88×69×76 mm (Mid-40)
Weight	Approx. 760 g (Mid-40)
Data Latency	2ms
Notes	1. Measured in an environment of 25℃ with a target (80% reflectivity) 20 meters away. The result may vary under different test conditions. 2. For more information, refer to the user manual. 3. The proportion of false alarms generated by ambient stray light in daylight conditions of 100 klx. 4. Operating fan is rated IP55. 5. Starting power, especially at low temperature, might be significantly larger than the typical power. Please refer to user manuals for detailed information.
