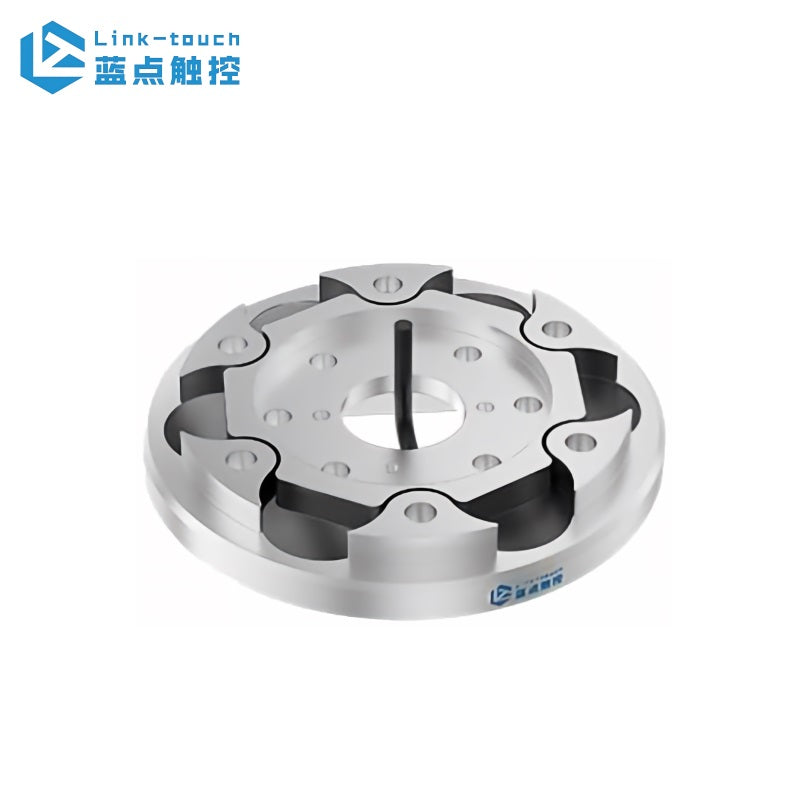

Link-touch XH Series Joint Torque Sensor

$2,000.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Performance Parameters XH-18 XH-33 XH-80 XH-120 XH-220 XH-400
Rated Capacity 18 Nm 33 Nm 80 Nm 120 Nm 220 Nm 400 Nm
Resolution 0.001 Nm 0.001 Nm 0.001 Nm 0.01 Nm 0.01 Nm 0.05 Nm
Accuracy 0.3 %FS 0.3 %FS 0.3 %FS 0.3 %FS 0.3 %FS 0.3 %FS
Overload Capacity 300 %FS 300 %FS 300 %FS 300 %FS 300 %FS 300 %FS
Communication Interface 0-5V Analog Signal 0-5V Analog Signal 0-5V Analog Signal 0-5V Analog Signal 0-5V Analog Signal 0-5V Analog Signal
Protection Rating IP65 IP65 IP65 IP65 IP65 IP65
Supply Voltage 5 V 5 V 5 V 5 V 5 V 5 V
Repeatability Accuracy 0.1 %FS 0.1 %FS 0.1 %FS 0.1 %FS 0.1 %FS 0.1 %FS
Combined Accuracy 0.2 %FS 0.2 %FS 0.2 %FS 0.2 %FS 0.2 %FS 0.2 %FS
Dimensions Φ46H6.4 mm Φ46H8.4 mm Φ35H7.5 mm Φ40H8 mm Φ59H6 mm Φ60H5.5 mm
Weight 55 g 65 g 60 g 60 g 77 g 80 g
Operating Temperature -20 to 80 °C -20 to 80 °C -20 to 80 °C -20 to 80 °C -20 to 80 °C -20 to 80 °C
Material High-strength Stainless Steel High-strength Stainless Steel High-strength Stainless Steel High-strength Stainless Steel High-strength Stainless Steel High-strength Stainless Steel


Link-touch Joint Torque Sensor XH-Drawing.pdf
