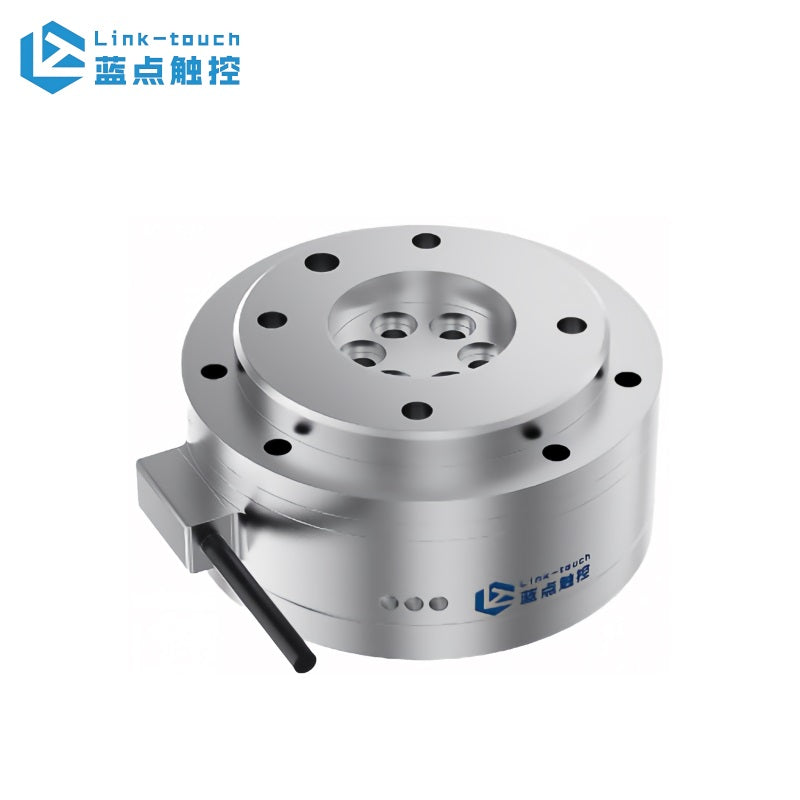

Link-touch LB75 Six-Dimension Force Sensor

$2,140.00
Version
Rated Load
Communication Interface

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Performance Parameters LB75  LB75  LB75  LB75
Rated Load (Fx, Fy) 170 N 200 N 500 N 1500 N
Rated Load (Fz) 350 N 400 N 900 N 3000 N
Rated Load (Mx, My, Mz) 6 Nm 10 Nm 20 Nm 40 Nm
Resolution (Fx, Fy) 0.1 N 0.1 N 0.2 N 0.5 N
Resolution (Fz) 0.2 N 0.2 N 0.3 N 0.8 N
Resolution (Mx, My, Mz) 0.005 Nm 0.005 Nm 0.007 Nm 0.021 Nm
Accuracy 0.3 %FS 0.3 %FS 0.3 %FS 0.3 %FS
Overload Capacity 5x 5x 5x 5x
Sampling Frequency 1000 Hz 1000 Hz 1000 Hz 1000 Hz
Communication Interface

Ethercat/CAN/RS422/

RS485/Modbus/Ethernet

Ethercat/CAN/RS422/

RS485/Modbus/Ethernet

Ethercat/CAN/RS422/

RS485/Modbus/Ethernet

Ethercat/CAN/RS422/

RS485/Modbus/Ethernet
Protection Rating IP65 (Customizable IP67) IP65 (Customizable IP67) IP65 (Customizable IP67) IP65 (Customizable IP67)
Supply Voltage DC 9-36(9-100) V DC 9-36(9-100) V DC 9-36(9-100) V DC 9-36(9-100) V
Power Consumption ≤ 2 W ≤ 2 W ≤ 2 W ≤ 2 W
Repeatability Accuracy 0.1 %FS 0.1 %FS 0.1 %FS 0.1 %FS
Combined Accuracy * 0.2 %FS 0.2 %FS 0.2 %FS 0.2 %FS
Dimensions Φ75 × H32 mm Φ75 × H32 mm Φ75 × H32 mm Φ75 × H32 mm
Weight 260 g 260 g 280 g 620 g
Operating Temperature -10 to 80 °C -10 to 80 °C -10 to 80 °C -10 to 80 °C
Material Aviation Aluminum Alloy Aviation Aluminum Alloy Aviation Aluminum Alloy High-Strength Stainless Steel


Link-touch Six-Dimension Force Sensor LB75-Drawing.pdf
