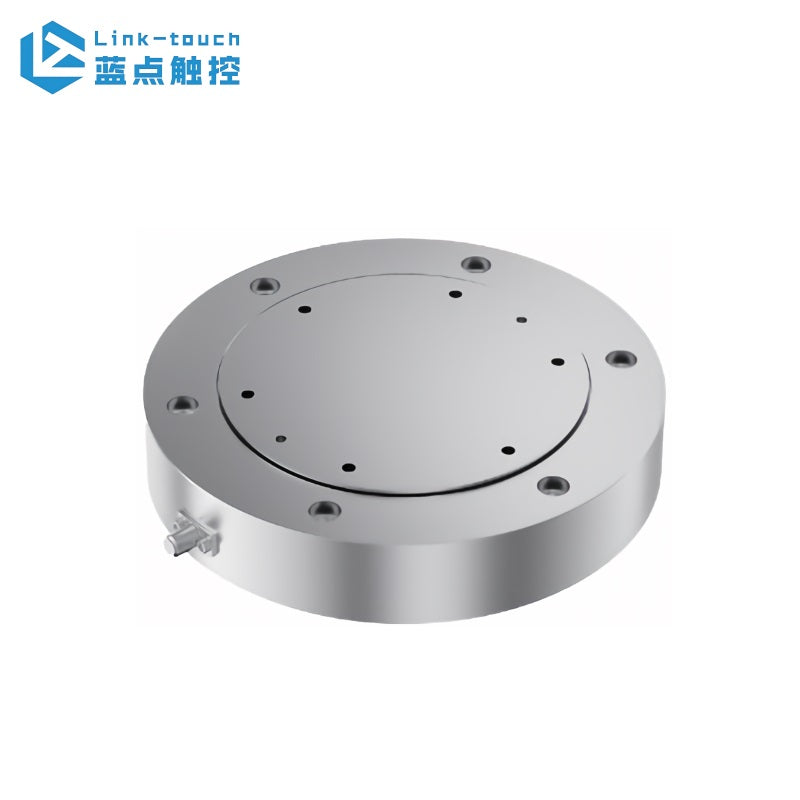

Link-touch LB200 Six-Dimension Force Sensor

$2,770.00
Version
Rated Load
Communication Interface

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Performance Parameters LB200  LB200  LB200
Rated Load (FX, FY) 800 N 1200 N 2000 N
Rated Load (FZ) 1600 N 2000 N 4000 N
Rated Load (MX, MY, MZ) 120 Nm 180 Nm 300 Nm
Resolution 0.1 %FS 0.1 %FS 0.1 %FS
Overload Capacity 3x 3x 3x
Sampling Frequency 1000 Hz 1000 Hz 1000 Hz
Communication Protocol

Ethercat/CAN/RS422/

RS485/Modbus/Ethernet

Ethercat/CAN/RS422/

RS485/Modbus/Ethernet

Ethercat/CAN/RS422/

RS485/Modbus/Ethernet
Protection Rating IP65 (Customizable IP67) IP65 (Customizable IP67) IP65 (Customizable IP67)
Supply Voltage DC 9-36 V DC 9-36 V DC 9-36 V
Power Consumption ≈ 2 W ≈ 2 W ≈ 2 W
Repeatability Accuracy 0.1 %FS 0.1 %FS 0.1 %FS
Accuracy 0.5 %FS 0.5 %FS 0.5 %FS
Dimensions Φ200 × H38 mm Φ200 × H38 mm Φ200 × H38 mm
Weight 3900 g 3900 g 3900 g
Operating Temperature -10 to 80 °C -10 to 80 °C -10 to 80 °C
Material Aviation Aluminum Alloy Aviation Aluminum Alloy High-Strength Stainless Steel


Link-touch Six-Dimension Force Sensor LB200-Drawing.pdf
