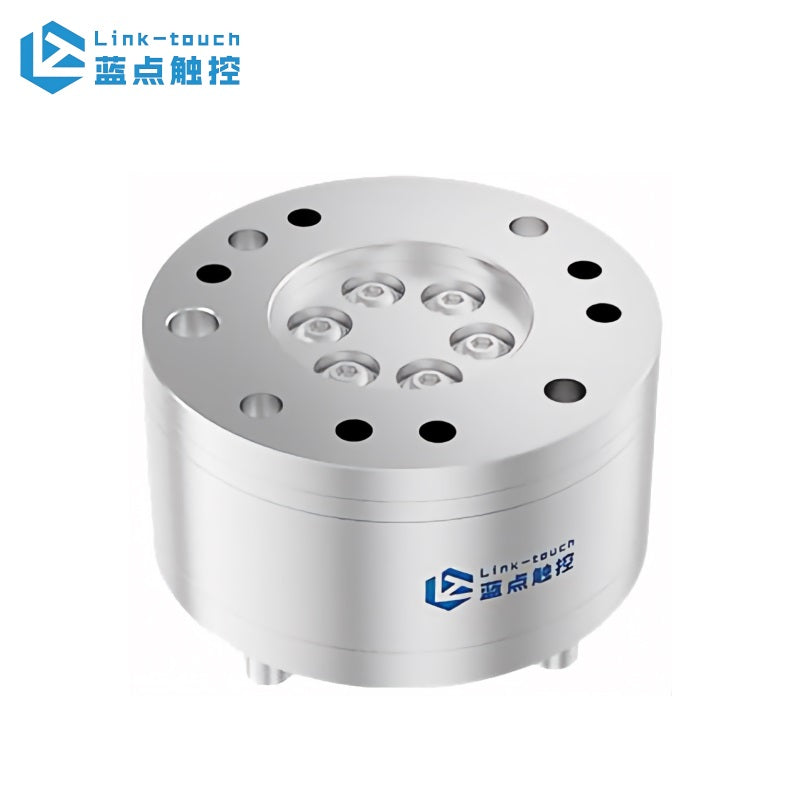

Link-touch LA63 Six-axis Force Sensor

$2,388.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Performance Parameters LA63 Bottom Connector LA63 Side Cable Exit
Rated Load (Fx, Fy) 200 N 200 N
Rated Load (Fz) 200 N 200 N
Rated Load (Mx, My, Mz) 15 Nm 15 Nm
Resolution (Fx, Fy) 0.1 N 0.1 N
Resolution (Fz) 0.2 N 0.2 N
Resolution (Mx, My, Mz) 0.005 Nm 0.005 Nm
Accuracy 0.5 %FS 0.5 %FS
Overload Capacity 300 %FS 300 %FS
Communication Interface EtherCAT EtherCAT
Protection Rating IP65 (Customizable IP67) IP65 (Customizable IP67)
Supply Voltage DC9-36V / DC24-60V DC9-36V / DC24-60V
Power Consumption 2 W 2 W
Repeatability Accuracy 0.1 %FS 0.1 %FS
Combined Accuracy 0.2 %FS 0.2 %FS
Dimensions Φ63 × H33 mm Φ63 × H33 mm
Weight 200 g 200 g
Operating Temperature -20 to 80 °C -20 to 80 °C
Material Aviation Aluminum Alloy Aviation Aluminum Alloy


Link-touch Six-axis Force LA63 Sensor-Drawing.pdf
