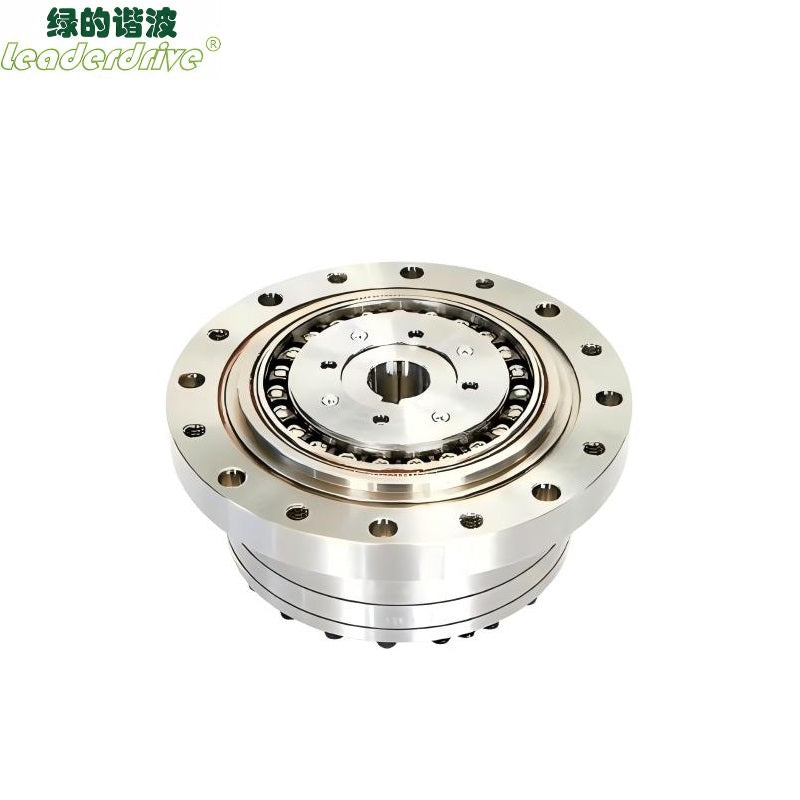

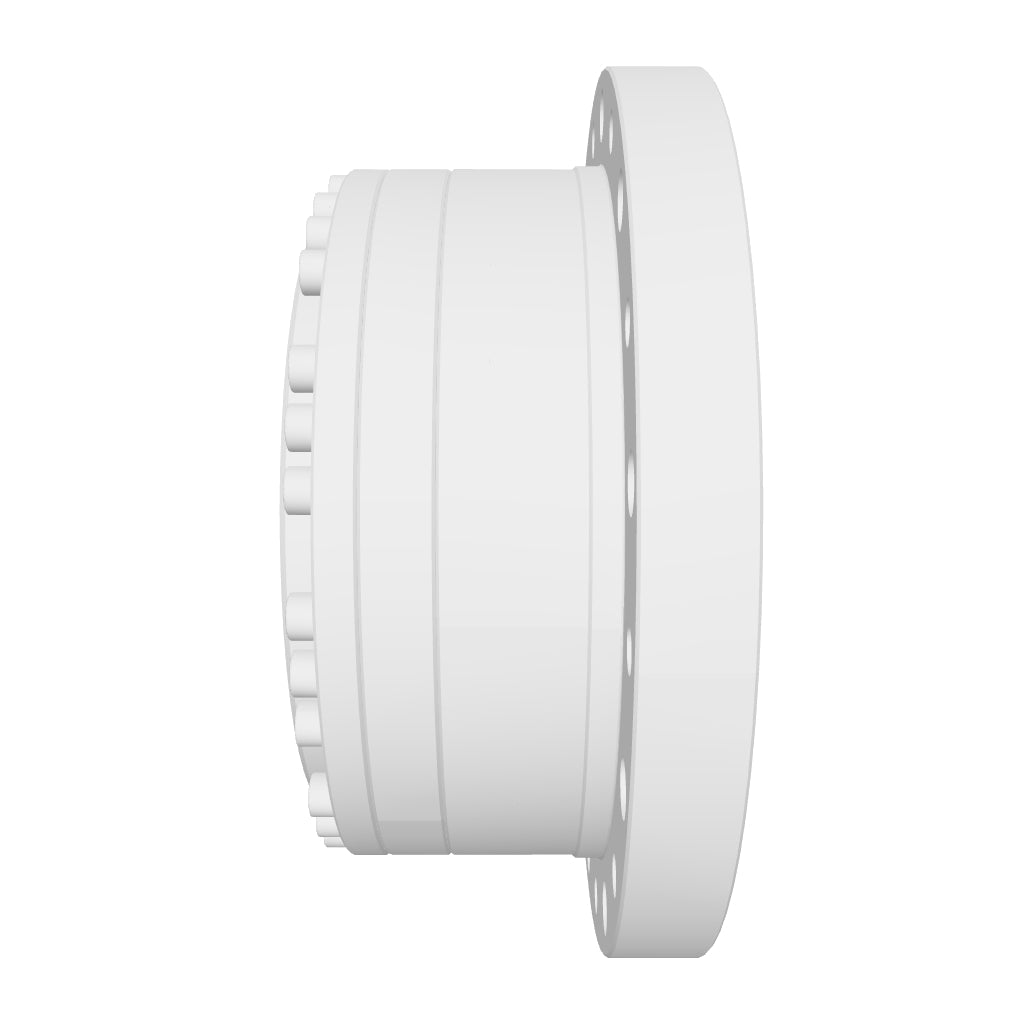

Leaderdrive LCSG-I Strain Wave Gear
Regular price
$940.00
Unit price
Leaderdrive LCSG-I Strain Wave Gear - LCSG-I Strain Wave Gear / 14 / 50 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Leaderdrive LCSG-I Strain Wave Gear
Regular priceFrom
$940.00
Unit price
Leaderdrive LCSG-I Strain Wave Gear - LCSG-I Strain Wave Gear / 14 / 50 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| LCSG-I Series Parameter Table |
|---|
|
Item Model No |
Reduction Ratio |
Rated Torque at 2000 r/min (N.m) |
Allowable Peak Torque at Start and Stop (N.m) | Allowable Average Torque (N.m) | Allowable Maximun Mementary Torque (N.m) | Maximun Input Speed (r/min) | Allowable Average Input Speed (r/min) | Back Lash (Arcsc) |
Weight (Kg) |
Design Life (Hour) |
| 14 | 50 80 100 |
6.6 9.6 9.6 |
23 29 34 |
8.6 13.5 13.5 |
43 57 66 |
8000 | 3500 | ≤10 ≤10 ≤10 |
0.51 | 10000 15000 15000 |
| 17 | 50 80 100 120 |
19.8 27.5 30 30 |
42 53 66 66 |
32.5 33.5 48.5 48.5 |
86 108 134 107 |
7000 | 3500 | ≤10 ≤10 ≤10 ≤10 |
0.68 | 10000 15000 15000 15000 |
| 20 | 50 80 100 120 160 |
32 42 50 50 50 |
69 91 102 108 113 |
42 58 61 61 61 |
121 158 182 182 182 |
6000 | 3500 | ≤10 ≤10 ≤10 ≤10 ≤10 |
0.98 | 10000 15000 15000 15000 15000 |
| 25 | 50 80 100 120 160 |
48 78 84 84 84 |
121 169 194 207 217 |
68.5 107.5 133 133 133 |
230 315 351 376 388 |
5500 | 3500 | ≤10 ≤10 ≤10 ≤10 ≤10 |
1.47 | 10000 15000 15000 15000 15000 |
| 32 | 50 80 100 120 160 |
94 146 169 169 169 |
267 376 411 436 459 |
133 206 267 267 267 |
472 702 800 848 848 |
4500 | 3500 | ≤10 ≤10 ≤10 ≤10 ≤10 |
3.19 | 10000 15000 15000 15000 15000 |
| 40 | 50 80 100 120 160 |
169 255 328 363 363 |
497 641 702 762 800 |
242 351 460 557 557 |
847 1210 1334 1458 1458 |
4000 | 3000 | ≤10 ≤10 ≤10 ≤10 ≤10 |
5.0 | 10000 15000 15000 15000 15000 |
| 50 | 80 100 120 160 |
459 580 654 654 |
1163 1121 1334 1458 |
642 823 1005 1042 |
229 2545 2545 3025 |
3000 | 2500 | ≤10 ≤10 ≤10 ≤10 |
9.0 | 15000 15000 15000 15000 |
| 58 | 80 100 120 160 |
678 860 921 921 |
1828 1964 2124 2272 |
951 1309 1470 1494 |
3026 3927 4113 4236 |
3000 | 2200 | ≤10 ≤10 ≤10 ≤10 |
14.8 | 15000 15000 15000 15000 |
