Kunwei Sensing

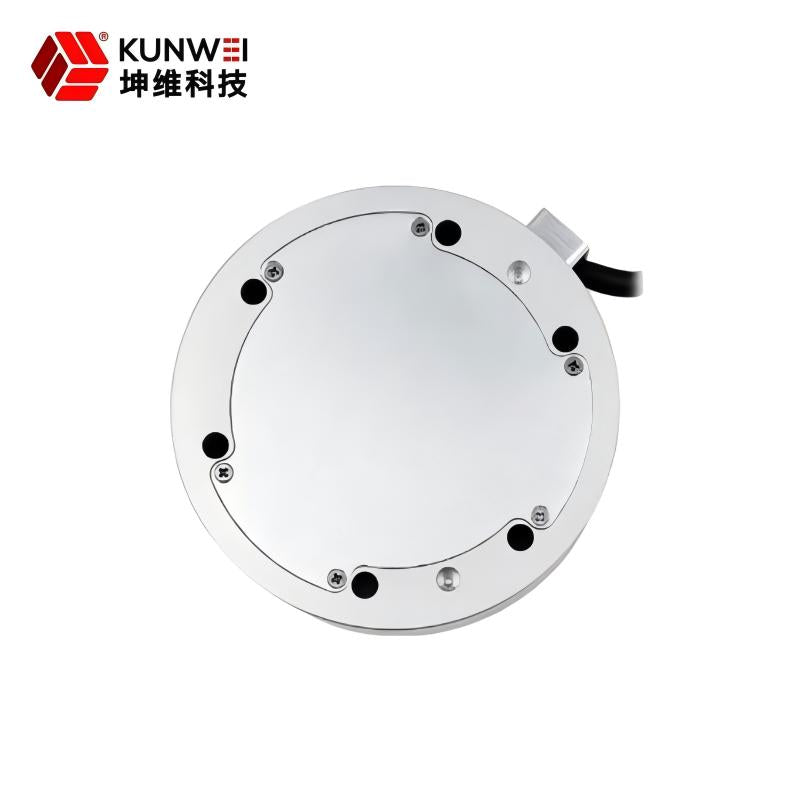

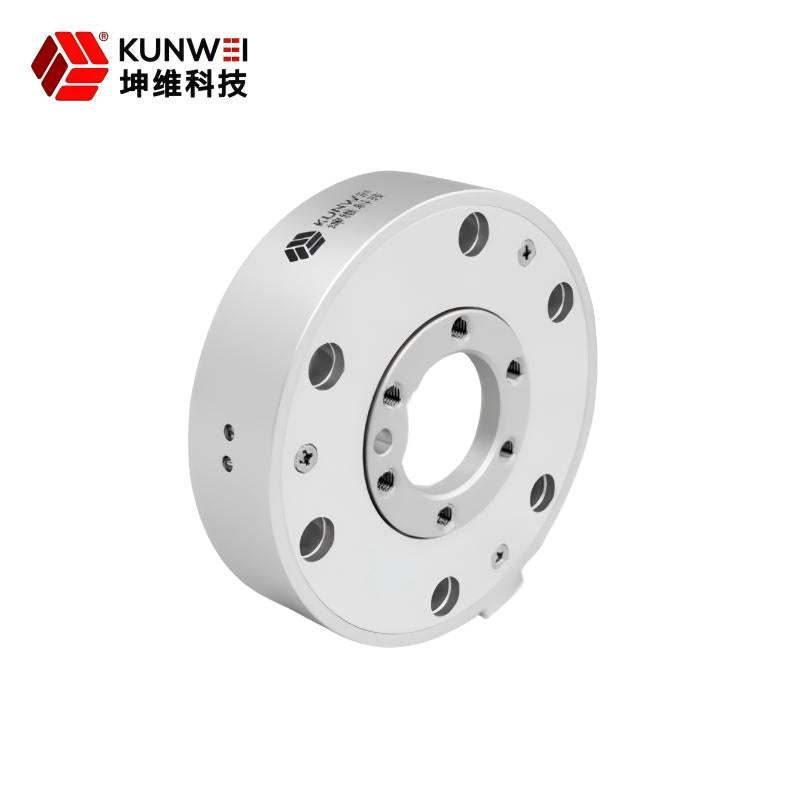

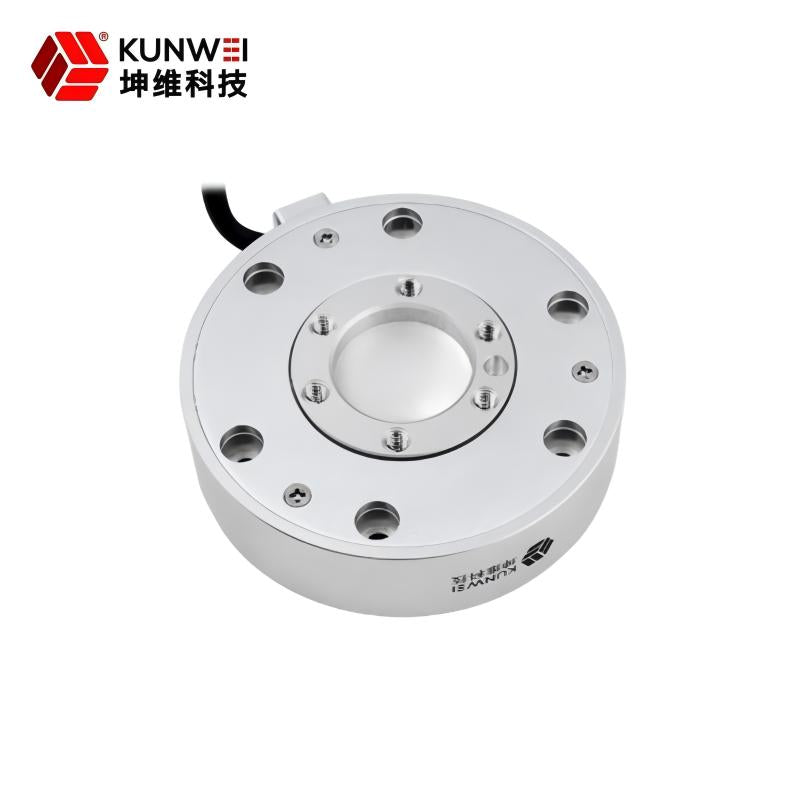

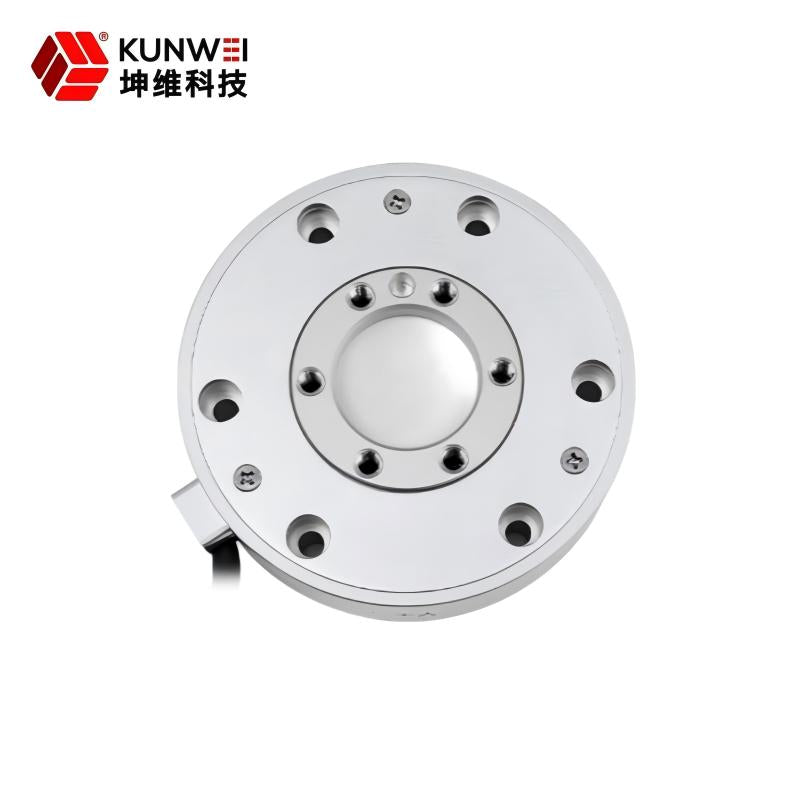

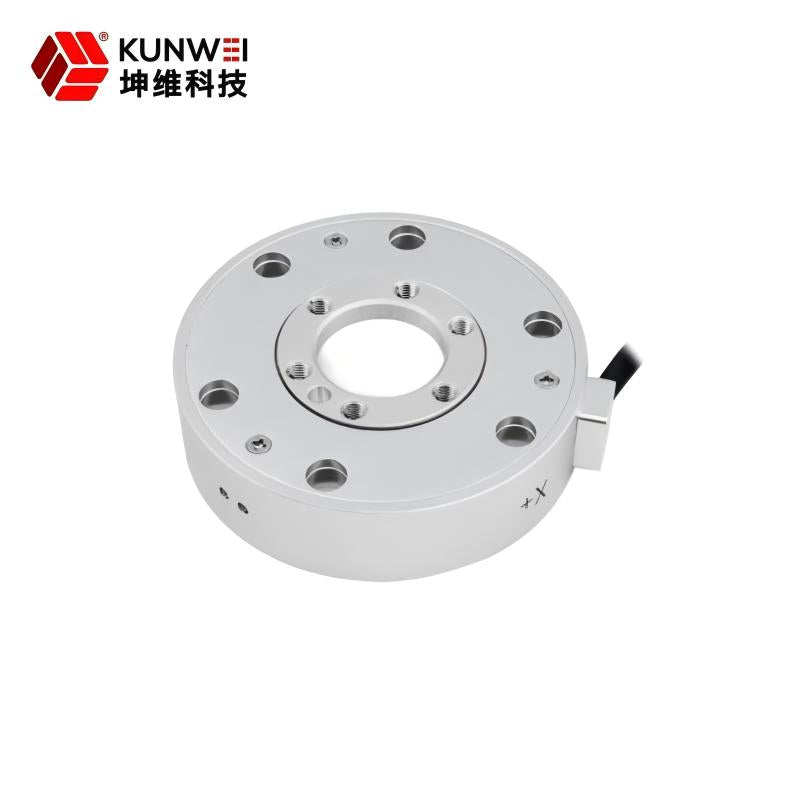

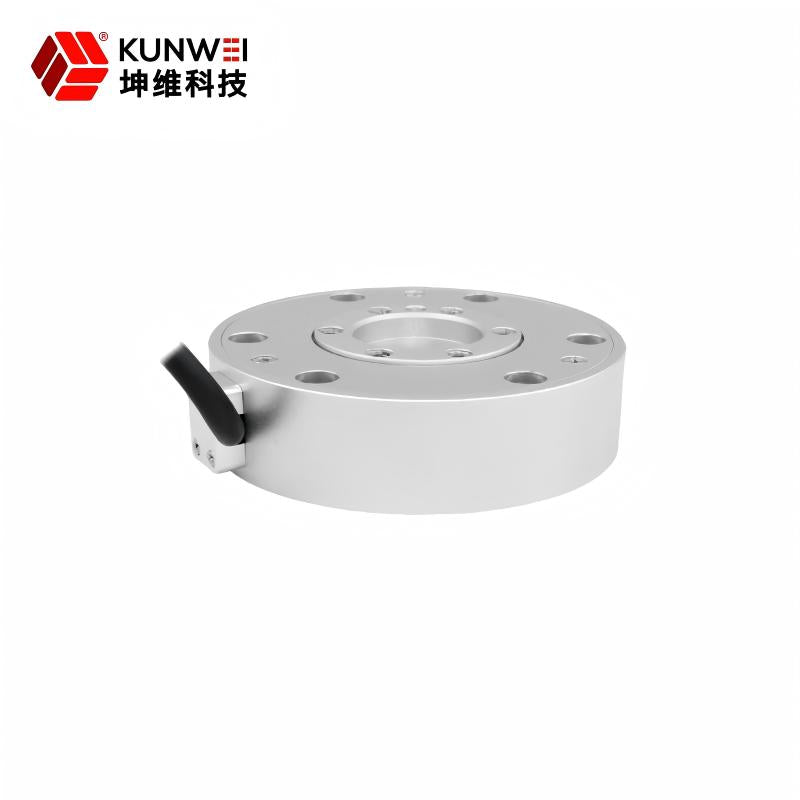

Kunwei KWR96 Series Sensor

$5,850.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Unit KWR96A KWR96B KWR96C KWR96D KWR96E KWR96F
Range Fx, Fy N 100 200 300 400 2000 3000
Range Fz N 200 400 600 800 2000 4000
Range Mx, My Nm 10 18 24 36 100 120
Range Mz Nm 10 18 24 30 100 120
Diameter mm 96 96 96 96 96 96
Height mm 26 26 26 26 26 26
Material Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy
Surface Treatment Anodized Anodized Anodized Anodized Anodized Electropolished
Overload Level %FS 300 300 300 300 200 200
Resolution %FS 0.03 0.03 0.03 0.03 0.05 0.05
Repeatability %FS 0.1 0.1 0.1 0.1 0.3 0.3
Accuracy* %FS 0.5 0.5 0.5 0.5 3 3
Weight kg 0.32 0.32 0.36 0.36 1.6 1.65
Protection Level IP64 IP64 IP64 IP64 IP64 IP65
Working Temperature °C -10~80 -10~80 -10~80 -10~80 -10~80 -10~80
Sampling Frequency Hz 1000 1000 1000 1000 100 1000
Supply Voltage* VDC 12~48 12~48 12~48 12~48 12~48 12~48
Communication Interface RS422/RS485/MODBUS/CAN/CANFD/TCP/UDP/EtherCAT/USB, etc.
