Kunwei Sensing

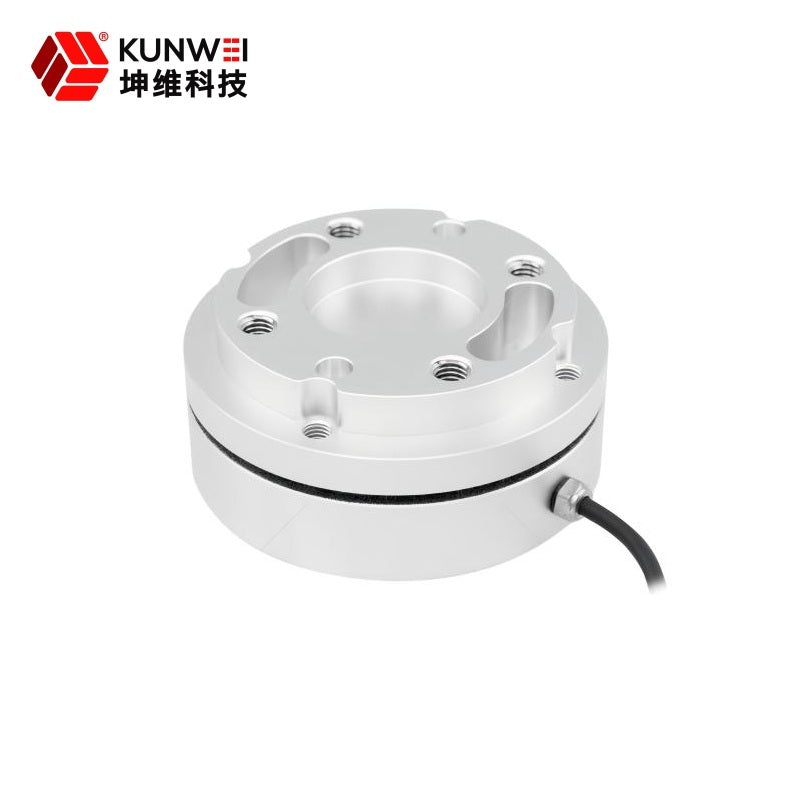

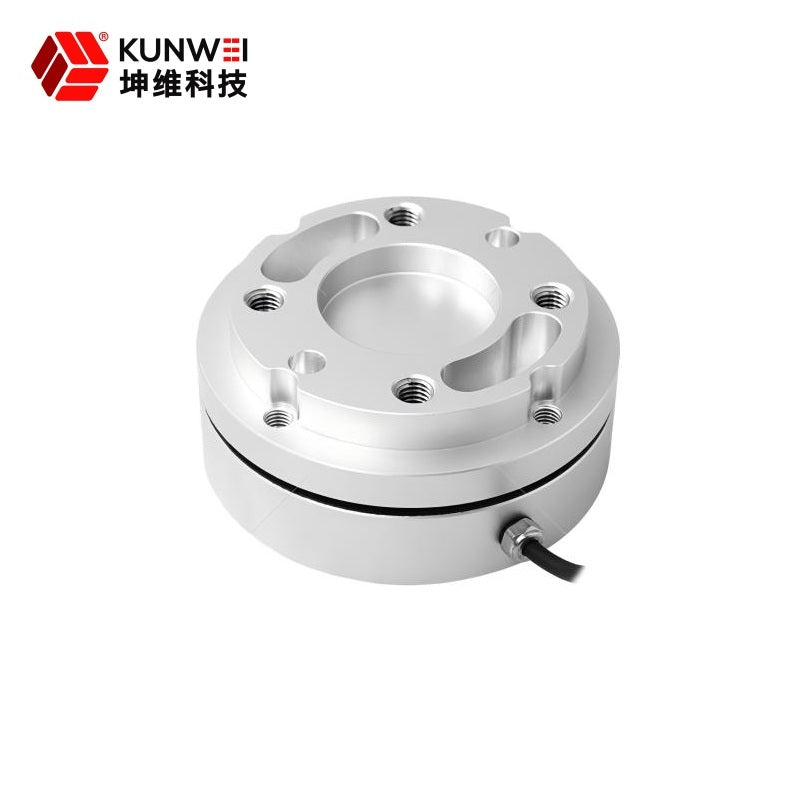

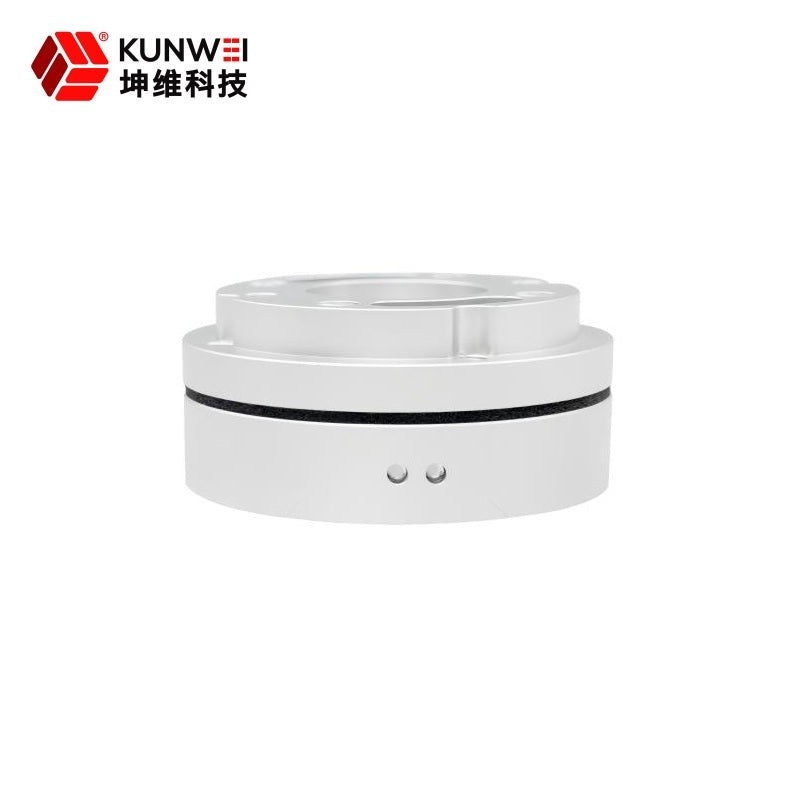

Kunwei KWR75S Series Sensor

$1,170.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Unit KWR75S-100 KWR75S-200 KWR75S-300 KWR75SP KWR75S-800
Capacity (Fz) N 100 200 300 400 800
Diameter mm 75 75 75 75 75
Height mm 33.5 33.5 33.5 33.5 33.5
Material Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy
Surface Treatment Anodization Anodization Anodization Anodization Anodizaton
Overloading %FS 300 300 300 300 300
Resolution %FS 0.05 0.05 0.05 0.05 0.05
Precision %FS 0.1 0.1 0.1 0.1 0.1
Weight Kg 0.26 0.26 0.26 0.26 0.26
Protection Level IP65 IP65 IP65 IP65 IP65
Working Temperature °C 0-80 0-80 0-80 0-80 0-80
Sampling Frequency Hz 1000 1000 1000 1000 1000
Supply Voltage VDC 9~24 9~24 9~24 9~24 9~24
Communication Protocol RS422/RS485/Modbus/TCP/UDP/EtherCAT/USB/etc. RS422/RS485/Modbus/TCP/UDP/EtherCAT/USB/etc RS422/RS485/Modbus/TCP/UDP/EtherCAT/USB/etc. RS422/RS485/Modbus/TCP/UDP/EtherCAT/USB/etc RS422/RS485/Modbus/TCP/UDP/EtherCAT/USB/etc
