Kunwei Sensing

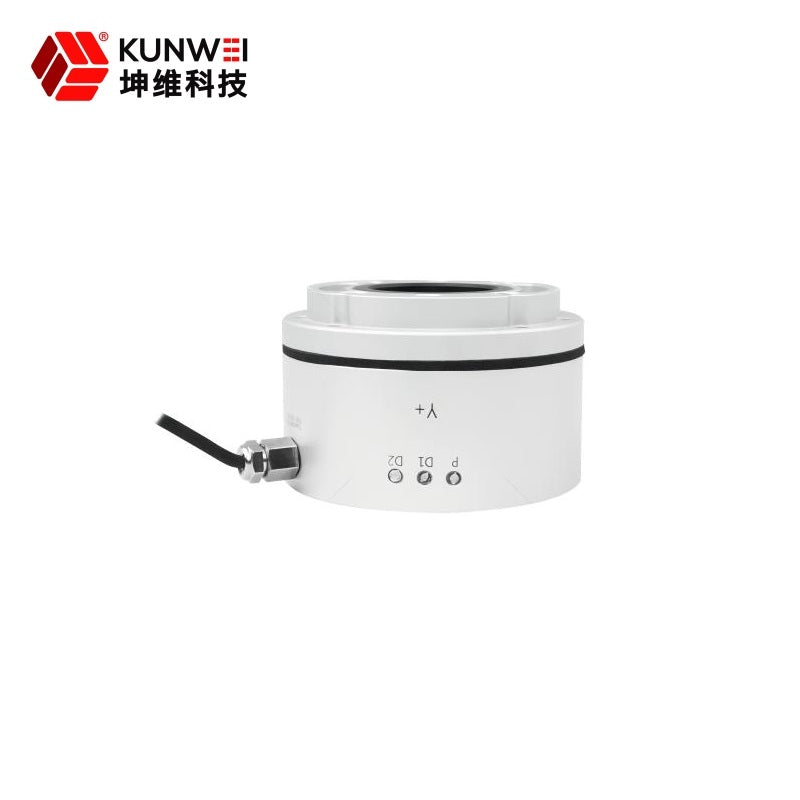

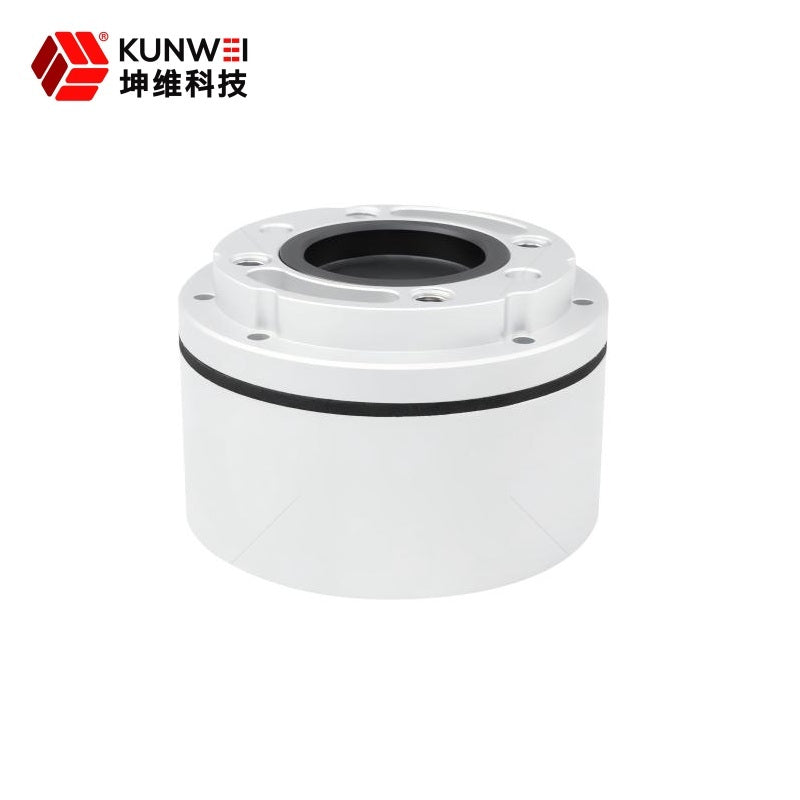

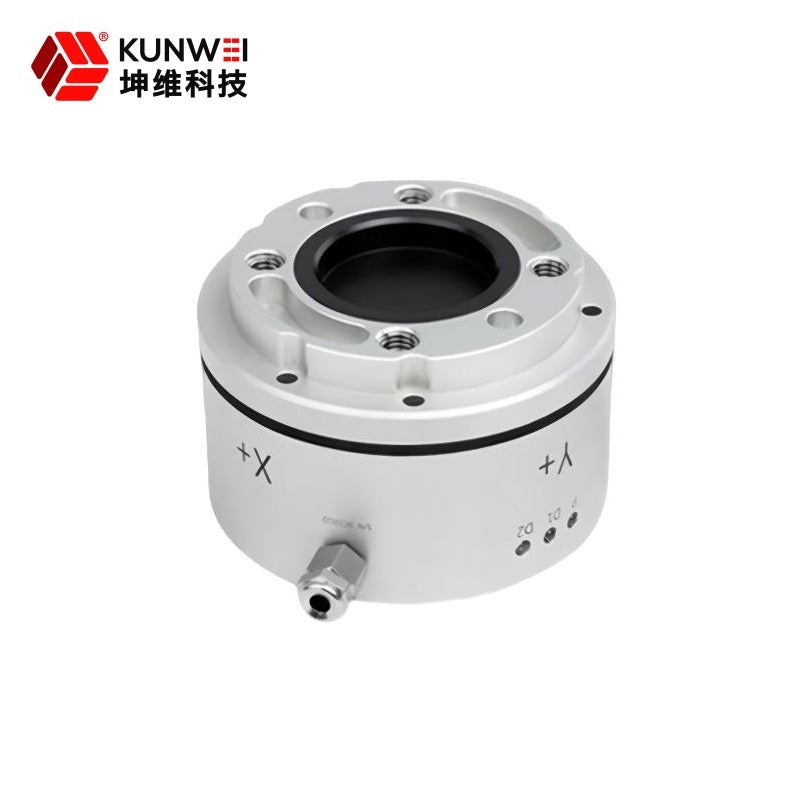

Kunwei KWR75EC Series Sensor

$4,670.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Unit KWR75BEC KWR75CEC KWR75DEC KWR75FEC
Fx, Fy N 200 400 500 100
Fz N 200 500 700 100
Mx, My Nm 8 12 18 4
Mz Nm 8 12 18 4
Diameter mm 75 75 75 75
Height mm 47.5 47.5 47.5 47.5
Material Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy
Surface Treatment Anodization Anodization AnODization Anodization
Overloading %FS 300 300 300 300
Resolution %FS 0.03 0.03 0.03 0.03
Repeatability %FS 0.1 0.1 0.1 0.1
Accuracy* %FS 0.5 0.5 0.5 0.5
Weight kg 0.38 0.42 0.46 0.38
Protection Level IP64 IP64 IP64 IP64
Working Temperature °C 0~80 0~80 0~80 0~80
Sampling Frequency Hz 1000 1000 1000 1000
Supply Voltage VDC 12~48 12~48 12~48 12~48
Communication Interface Industrial Ethernet
