Kunwei Sensing

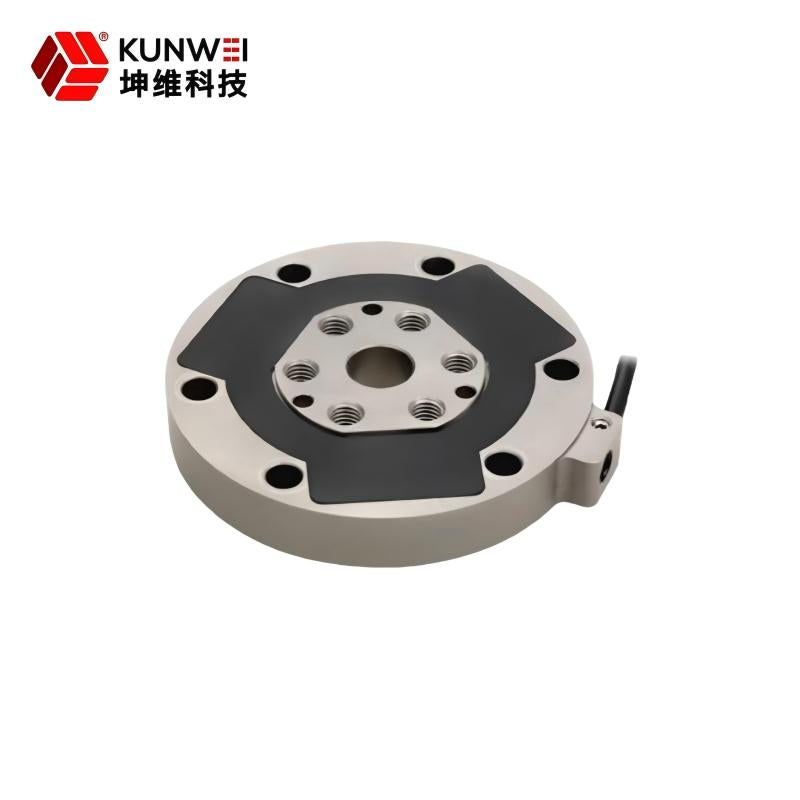

Kunwei KWR65-ET Series Sensor

$5,850.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Unit KWR65C-ET KWR65K-ET KWR65G-ET
Range Fx, Fy N 150 500 2500
Range Fz N 300 1000 5000
Range Mx, My Nm 12 150 200
Range Mz Nm 12 150 100
Diameter mm 65 65 65
Height mm 10.6 10.6 10.6
Material Aluminum Alloy Aluminum Alloy Aluminum Alloy
Surface Treatment Anodized Electropolished Electropolished
Overload Level %FS 300 200 200
Resolution %FS 0.03 0.03 0.03
Repeatability %FS 0.1 0.5 0.5
Accuracy* %FS 0.5 2 2
Weight kg 0.08 0.19 0.19
Protection Level IP64 IP64 IP64
Working Temperature °C -10~80 -10~80 -10~80
Sampling Frequency Hz 1000 1000 1000
Supply Voltage* VDC 9~24 12~48 12~48
Communication Interface RS422/RS485/MODBUS/CAN/CANFD/TCP/UDP/EtherCAT/USB, etc.
