Kunwei Sensing

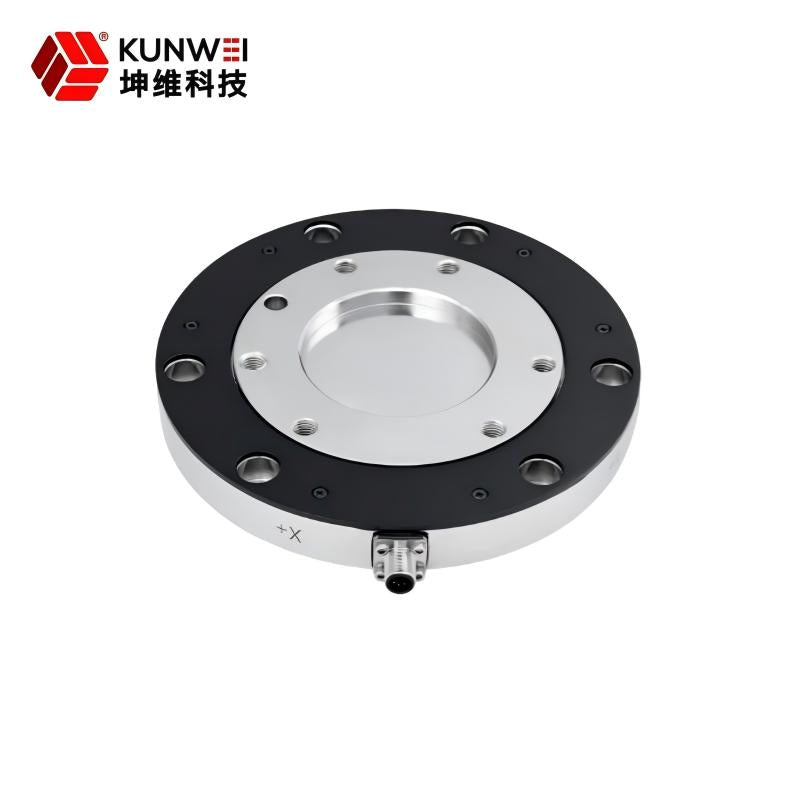

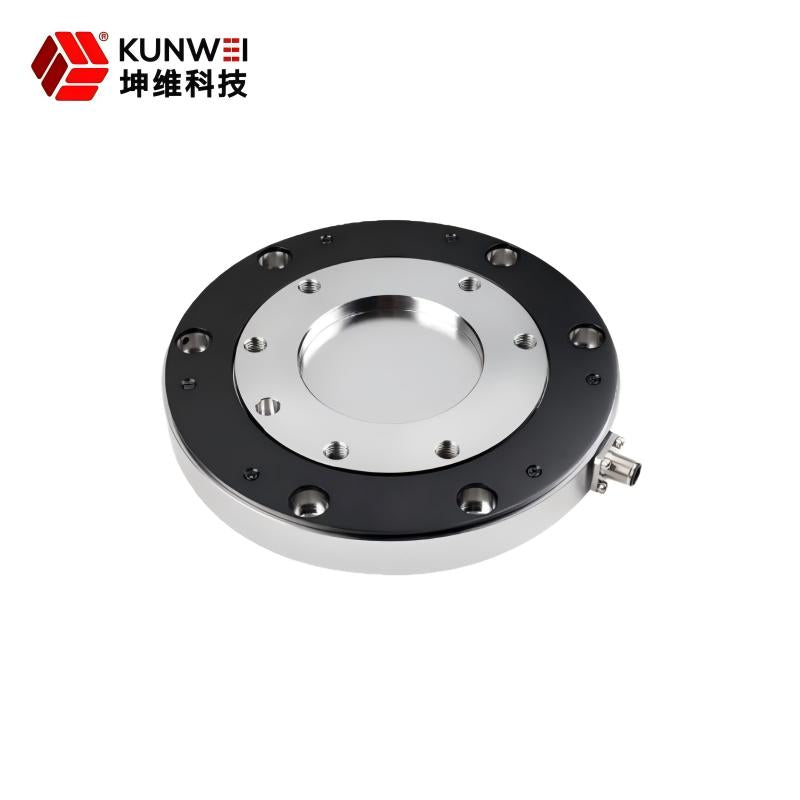

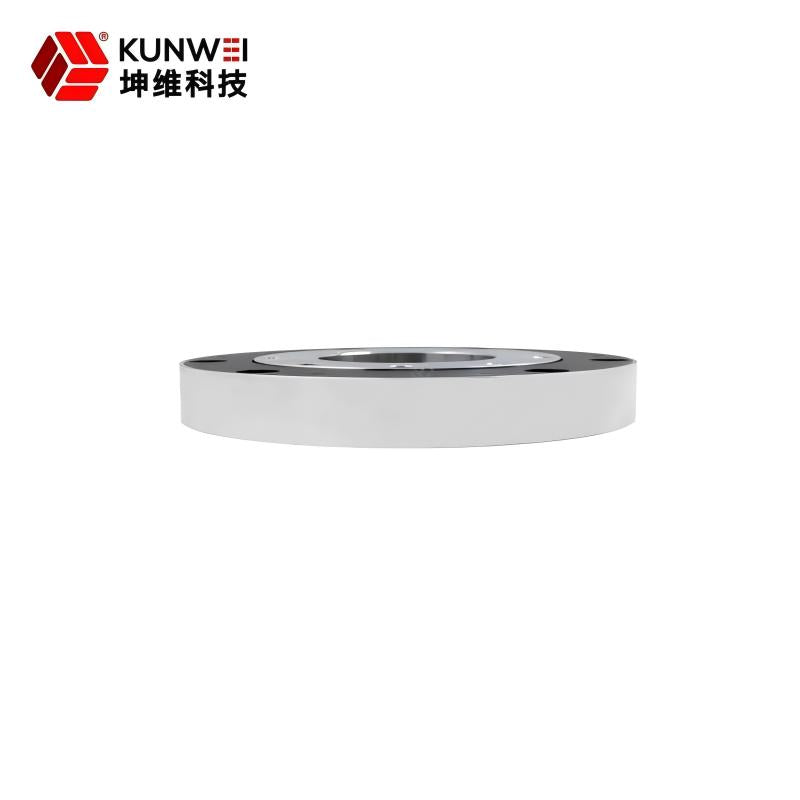

Kunwei KWR200 Series Sensor

$7,470.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Unit KWR200X KWR200M KWR200C KWR200D KWR200F KWR200G KWR200J
Range Fx, Fy N 1000 1800 3000 10000 3200 5000 6000
Range Fz N 1000 1800 3000 10000 6000 5000 6000
Range Mx, My Nm 150 300 450 800 800 750 700
Range Mz Nm 150 300 450 1600 800 750 700
Diameter mm 200 200 200 200 200 200 200
Height mm 40 40 40 40 40 40 55.5
Material Alloy Steel Alloy Steel Alloy Steel Alloy Steel Alloy Steel Aluminum Alloy Alloy Steel
Surface Treatment Electropolishing Electropolishing Electropolishing Electropolishing Electropolishing Electropolishing Electropolishing
Overload Level %FS 300 300 200 150 200 200 200
Resolution %FS 0.03 0.03 0.05 0.03 0.05 0.05 0.05
Repeatability %FS 0.1 0.5 0.5 0.5 0.5 0.5 0.5
Accuracy %FS 0.5 2.5 2.5 3.0 3 3 3
Weight kg 4.5 4.8 4.8 4.8 5.1 5.1 6
Protection Level IP64 IP64 IP64 IP64 IP64 IP64 IP64
Working Temperature °C -10~80 -10~80 -10~80 -10~80 -10~80 -10~80 -10~80
Sampling Frequency Hz 1000 1000 1000 1000 1000 1000 1000
Supply Voltage VDC 12~48 12~48 12~48 12~48 12~48 12~48 12~48
Communication Interface RS422/RS485/MODBUS/CAN/CANFD/TCP/UDP/EtherCAT/USB, etc.
