Kunwei Sensing

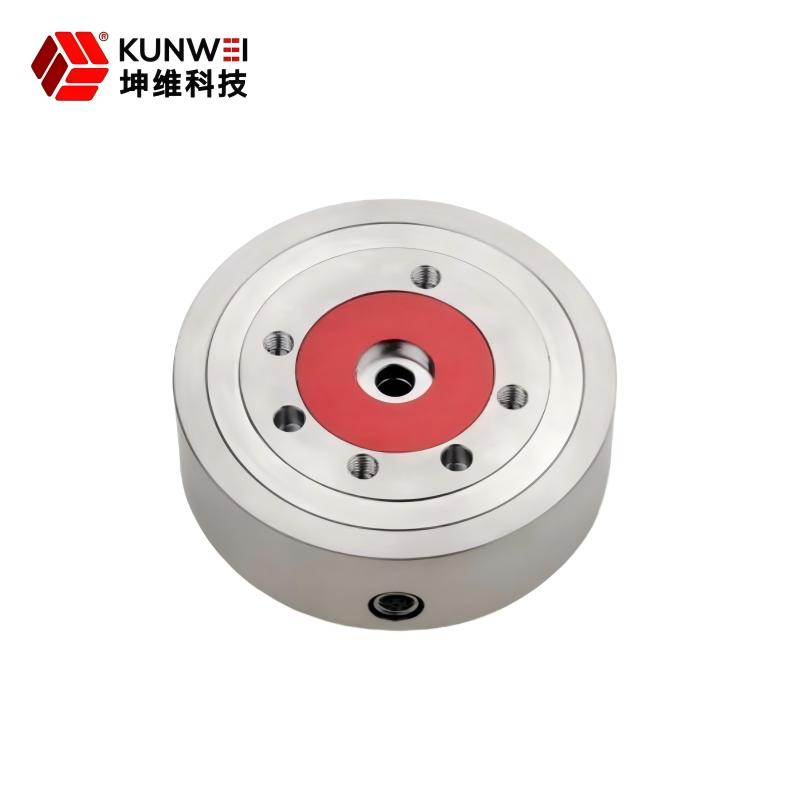

Kunwei HPS92 Series Sensor

$7,950.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Unit HPS92A HPS92B HPS92C
Range Fx, Fy N 180 350 700
Range Fz N 500 1000 2000
Range Mx, My Nm 15 30 60
Range Mz Nm 15 30 60
Diameter mm 92 92 92
Height mm 28.6 28.6 28.6
Material High Performance Titanium Alloy High Performance Titanium Alloy High Performance Titanium Alloy
Overload Level %FS 500 500 500
Resolution %FS 0.03 0.03 0.03
Repeatability %FS 0.1 0.1 0.1
Accuracy* %FS 0.3 0.3 0.5
Weight kg 0.45 0.45 0.45
Protection Level IP64, IP65 & IP68 IP64, IP65 & IP68 IP64, IP65 & IP68
Working Temperature °C -20~80 -20~80 -20~80
Sampling Frequency Hz Up to 30K Up to 30K Up to 30K
Supply Voltage* VDC 24~60 24~60 24~60
Communication Interface RS422 / Ethernet
