Hinson | SKU:

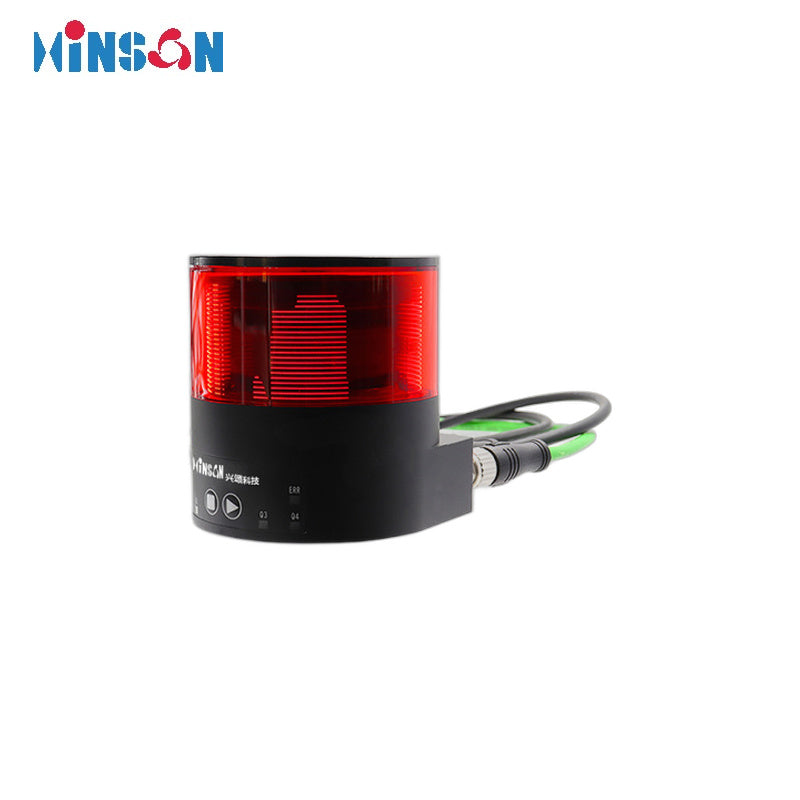

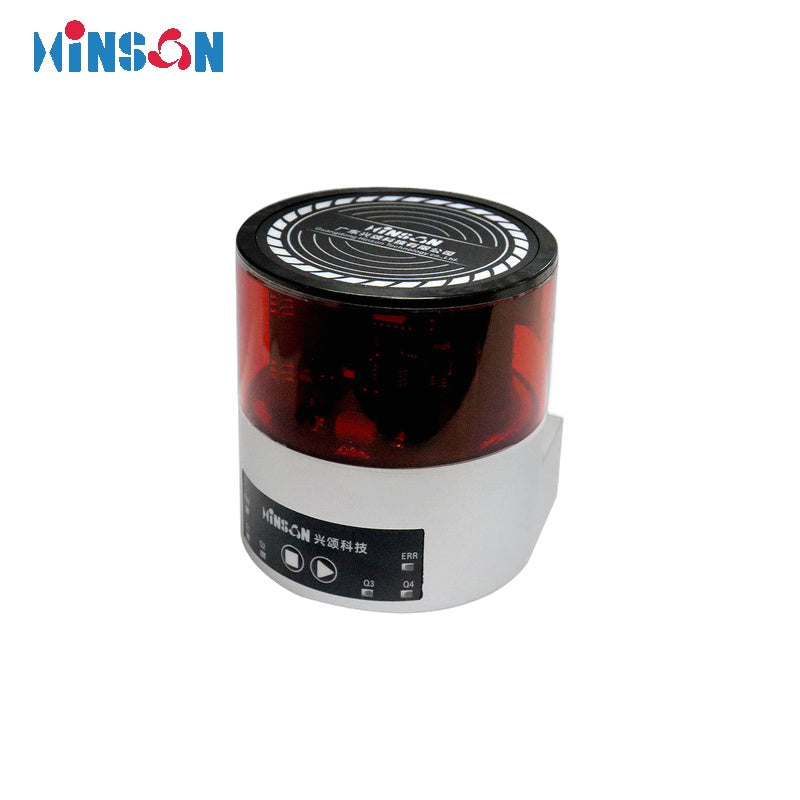

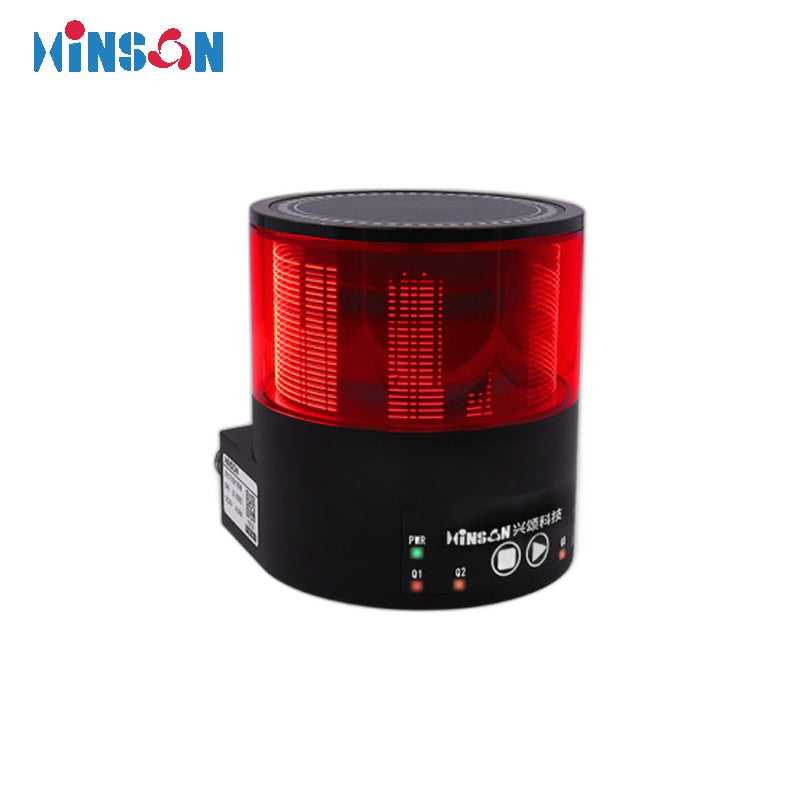

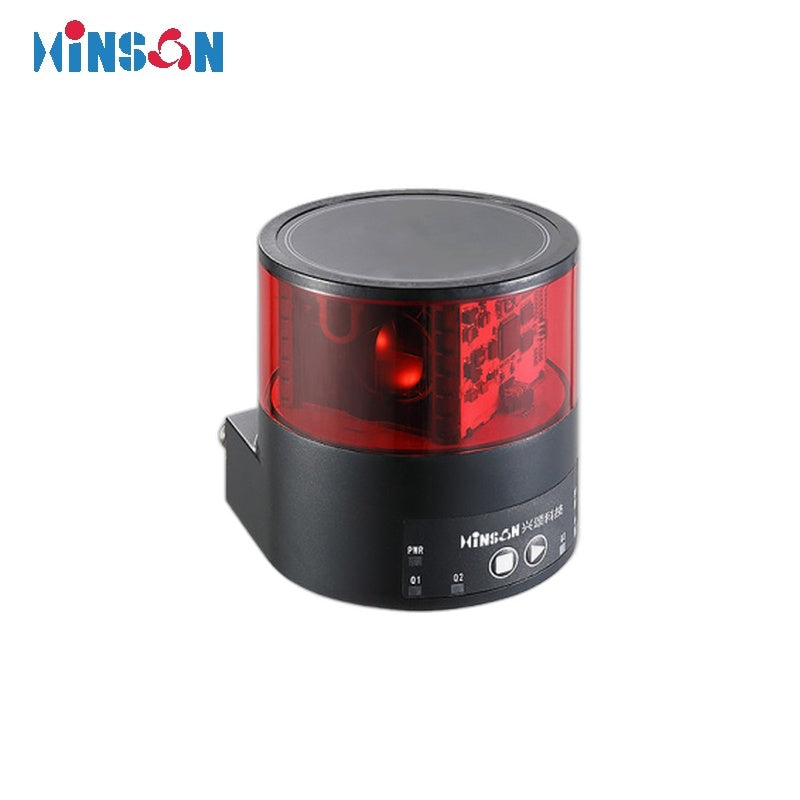

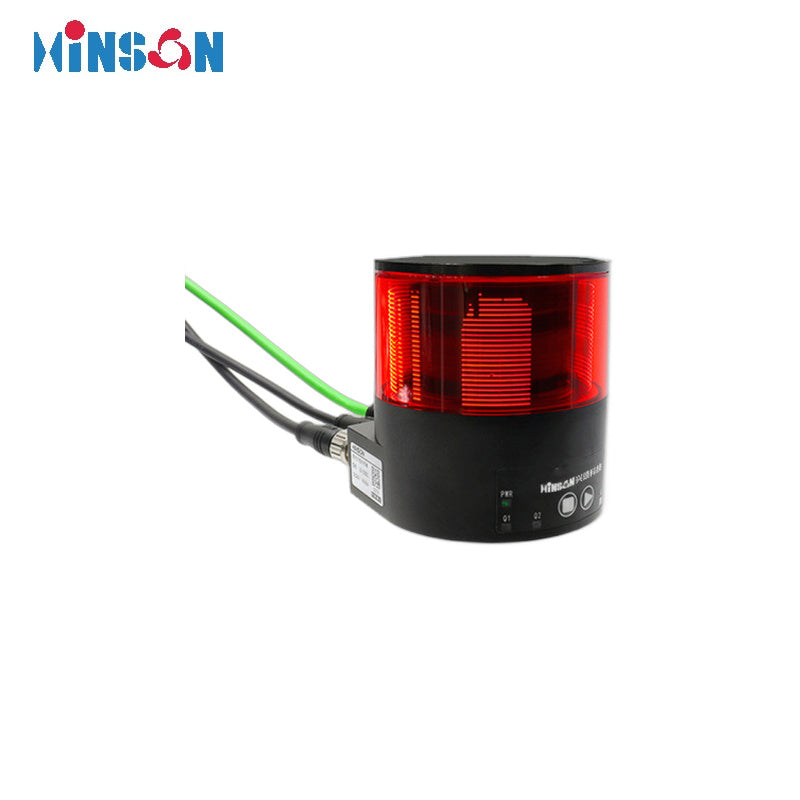

Hinson LE-50621 LiDAR
Regular price
$730.00
Unit price
Hinson LE-50621 LiDAR - LE-50621 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Hinson LE-50621 LiDAR
Regular priceFrom
$730.00
Unit price
Hinson LE-50621 LiDAR - LE-50621 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value (First Set) | Value (Second Set) |
|---|---|---|
| Detection Distance (10% reflectivity) | 0.05 m ~ 20 m | 0.05 m ~ 20 m |
| Detection Distance (90% reflectivity) | 0.05 m ~ 50 m | 0.05 m ~ 50 m |
| Detection Angle | 360° (2D) | 360° (2D) |
| Laser Measurement Frequency | 50K, 100K, 150K, 200K (configurable) | 600 k |
| Angular Resolution | 0.018° (determined by scan frequency, motor speed, sampling times) | 0.018° (determined by scan frequency, motor speed, sampling times) |
| Scan Motor Speed | 10 Hz, 15 Hz, 20 Hz, 25 Hz, 30 Hz (configurable) | 10 Hz, 15 Hz, 20 Hz, 25 Hz, 30 Hz (configurable) |
| Single Point Sampling Times | 1 ~ 50 times (adjustable) | 1 ~ 50 times (adjustable) |
| Recognizable Object Shape | Any shape, resolution depends on detection distance | Any shape, resolution depends on detection distance |
| Measurement Resolution | 1 mm | 1 mm |
| Absolute Accuracy | ±20 mm | ±20 mm |
| Measurement Noise | ±10 mm |
±5 mm |
| Repeat Accuracy | <10 mm | <10 mm |
| Digital Input | 6 × NPN | 6 × NPN |
| Digital Output | 4 × NPN | 4 × NPN |
| RS485 | RS485 (Modbus RTU) | RS485 (Modbus RTU) |
| CAN | CANopen | CANopen |
| Ethernet | TCP/UDP | TCP/UDP |
| Obstacle Avoidance Channels | 64 (each channel provides 3 independent detection zones) | — |
| Number of Echoes | — | 3 (1st, 2nd, last, max. energy) |
| Operating Voltage | DC 18 ~ 60 V | DC 18 ~ 60 V |
| Rated Power | < 7 W | < 7 W |
| Laser Class | 905 nm Class 1 (IEC 60825-1:2014) | 905 nm Class 1 (IEC 60825-1:2014) |

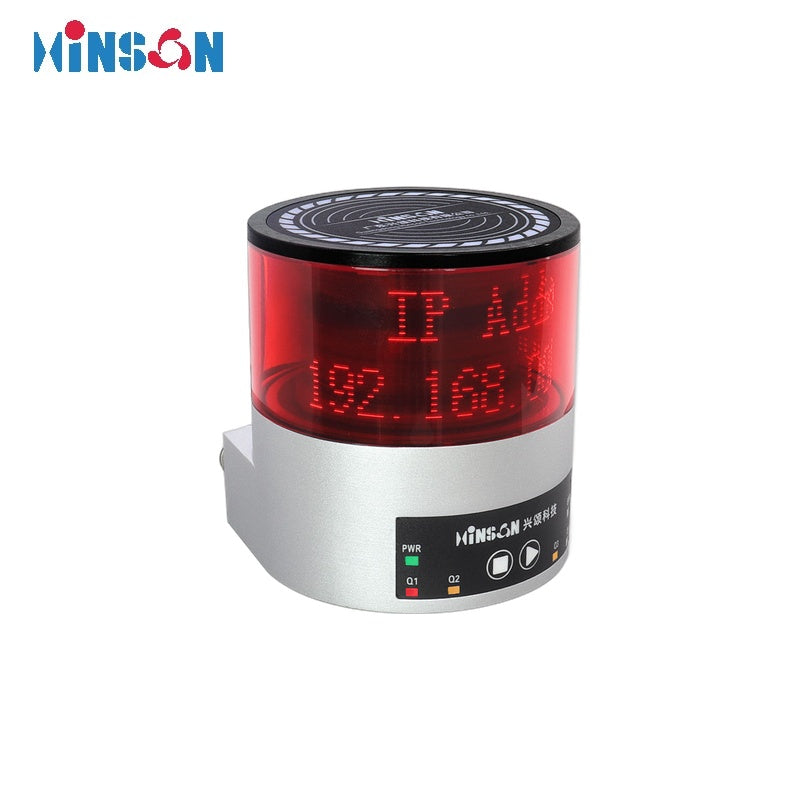

| Indicator LEDs | Green (Power), Red (Fault), Red/Yellow/Orange/Orange (Output status), Red (Window display 24×360 pixels) | Green (Power), Red (Fault), Red/Yellow/Orange/Orange (Output status), Red (Window display 24×360 pixels) |

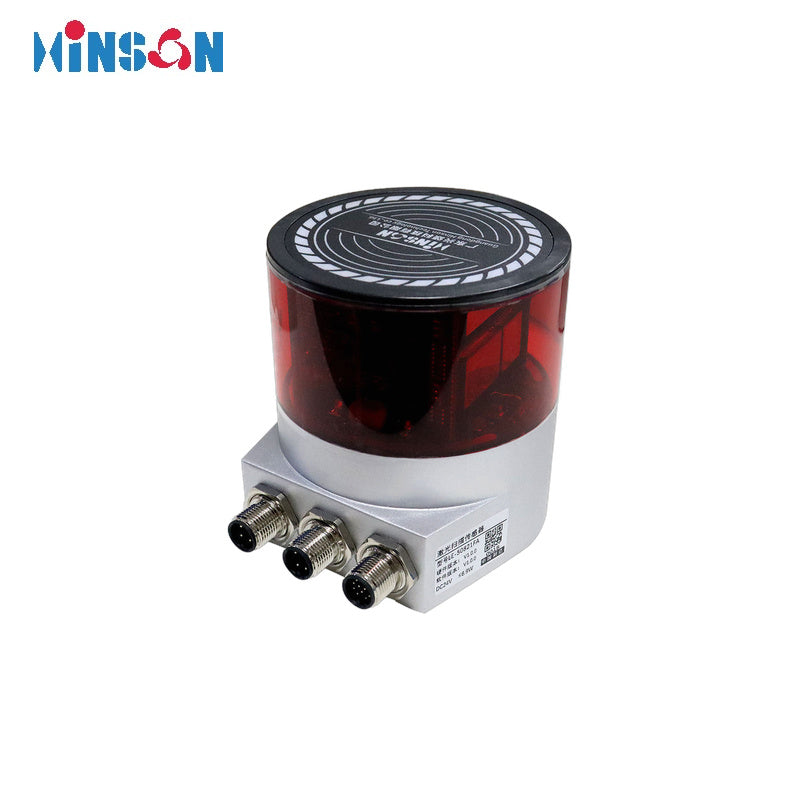

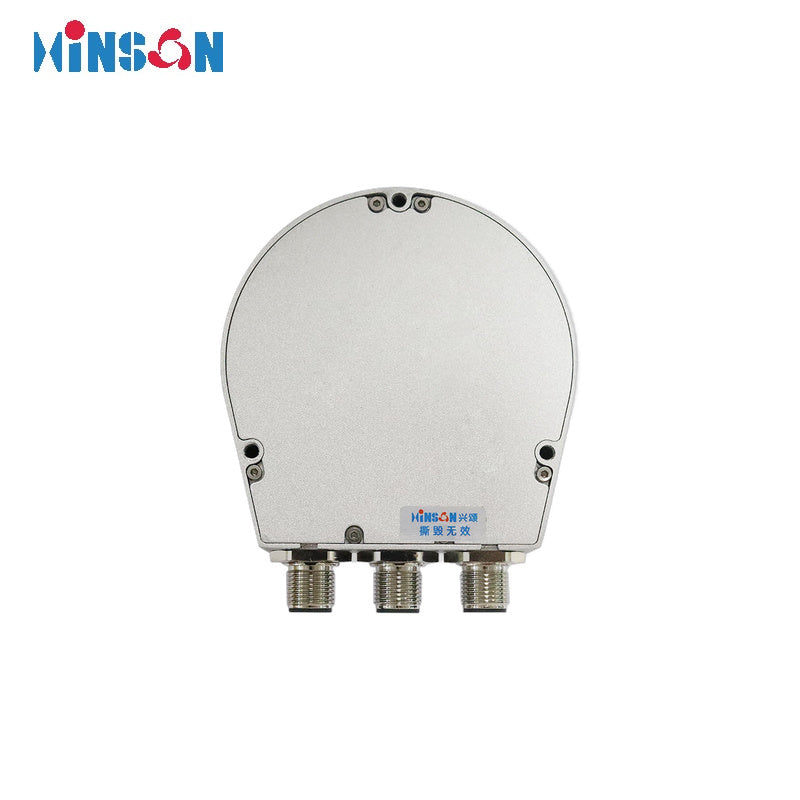

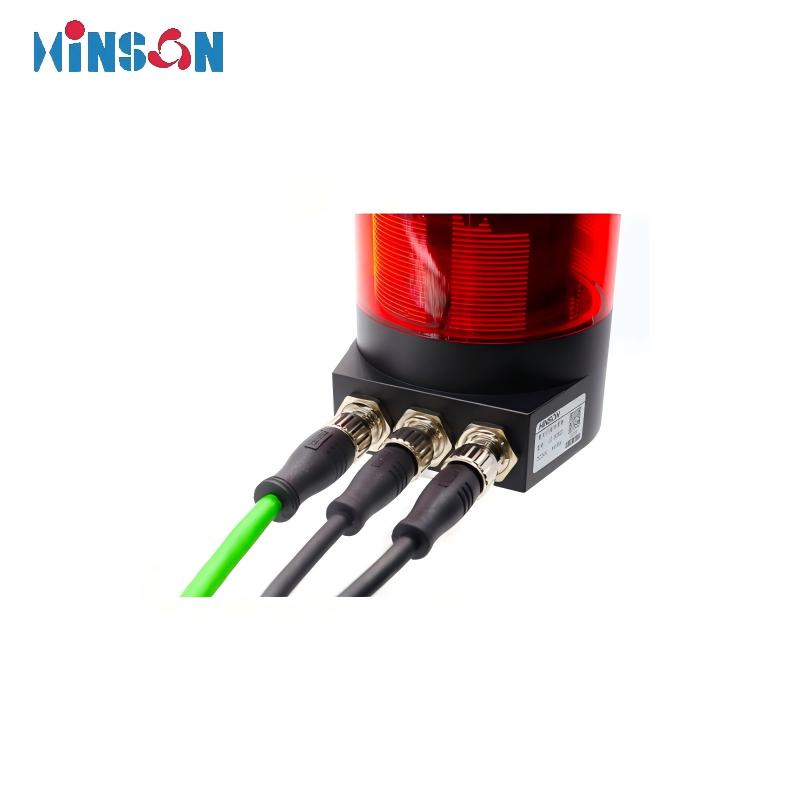

| Cable | M12-4 female (Ethernet), M12-6 female (Power & Comm), M12-12 female (IO ports) (cables sold separately) | M12-4 female (Ethernet), M12-6 female (Power & Comm), M12-12 female (IO ports) (cables sold separately) |
| Material | Aluminum alloy, scanning window / PUMA | Aluminum alloy, scanning window / PUMA |
| Protection Rating | IP65 | IP65 |
| Object Reflectivity | 2 ~ 1000% | 2 ~ 1000% |
| Ambient Light | < 80000 Lux (sunlight resistant) | < 80000 Lux (sunlight resistant) |
| Operating Environment | Indoor, -10°C ~ 50°C, <80% RH (non-condensing, no frost) | Indoor, -10°C ~ 50°C, <80% RH (non-condensing, no frost) |
