Hinson | SKU:
Hinson DE-4211 LiDAR
Regular price
$175.00
Unit price
Hinson DE-4211 LiDAR - DE-4211 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Hinson DE-4211 LiDAR
Regular price
$175.00
Unit price
Hinson DE-4211 LiDAR - DE-4211 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Detection Distance (90% reflectivity) | 0.05 m ~ 4 m |
| Detection Distance (10% reflectivity) | 0.05 m ~ 1.5 m |
| Detection Angle | 120° (4-line, vertical angle 12°) |
| Scan Frequency | 10 Hz × 4 |
| Point Cloud Resolution | 0.5° (minimum resolution for obstacle detection) |
| Measurement Accuracy | ±40 mm |
| Measurement Noise | ±10 mm |
| Detection Output Delay | 0‑500 ms configurable |
| Detection Hold Delay | 0‑500 ms configurable |
| Recognizable Object Shape | Any shape, resolution depends on detection distance |

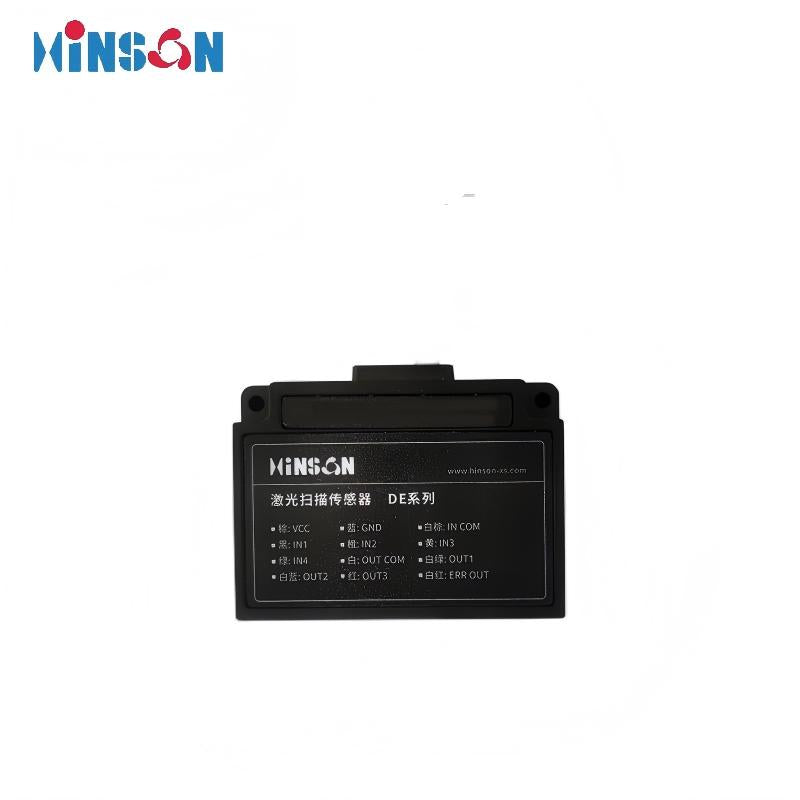

| Digital Input | 4 × NPN |
| Digital Output | 4 × NPN |

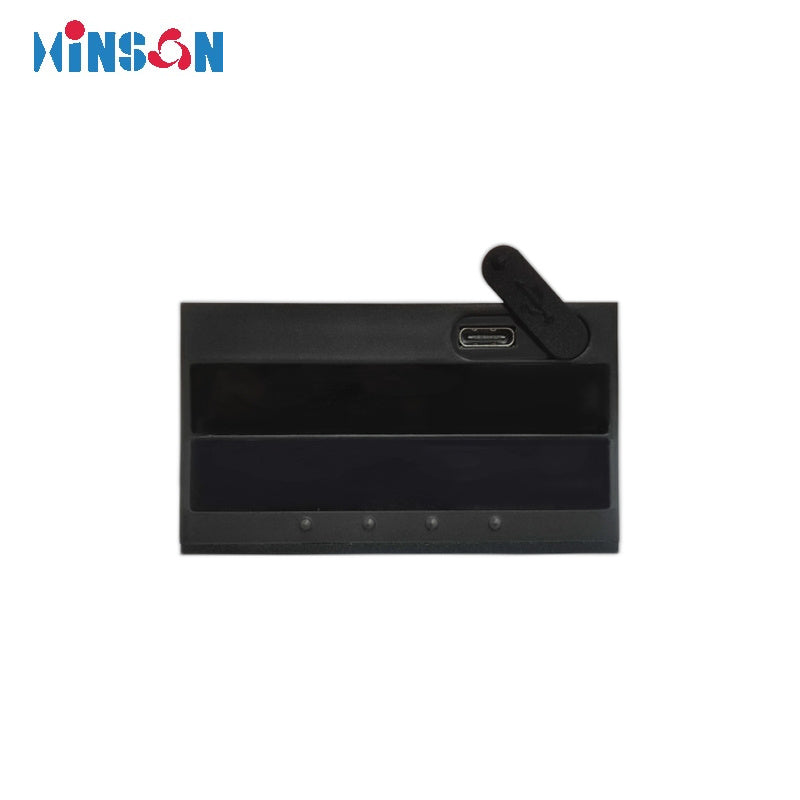

| Type‑C | Supported |
| Number of Channels | 16 (each channel provides 3 independent detection zones) |
| Operating Voltage | DC 12 ~ 30 V |
| Rated Power | < 2 W |
| Laser Class | 905 nm Class 1 (IEC 60825-1:2014) |

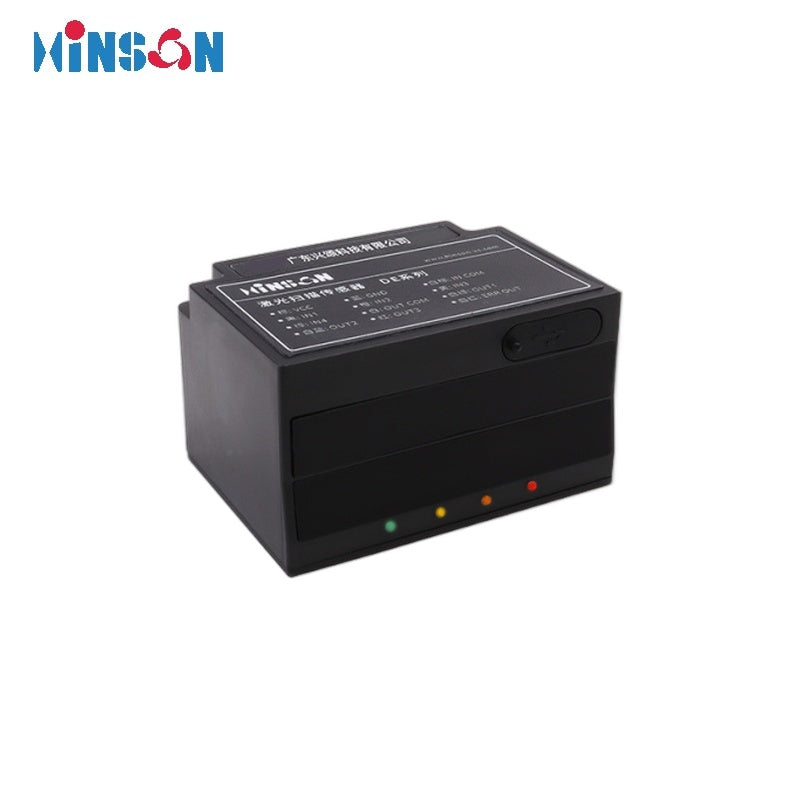

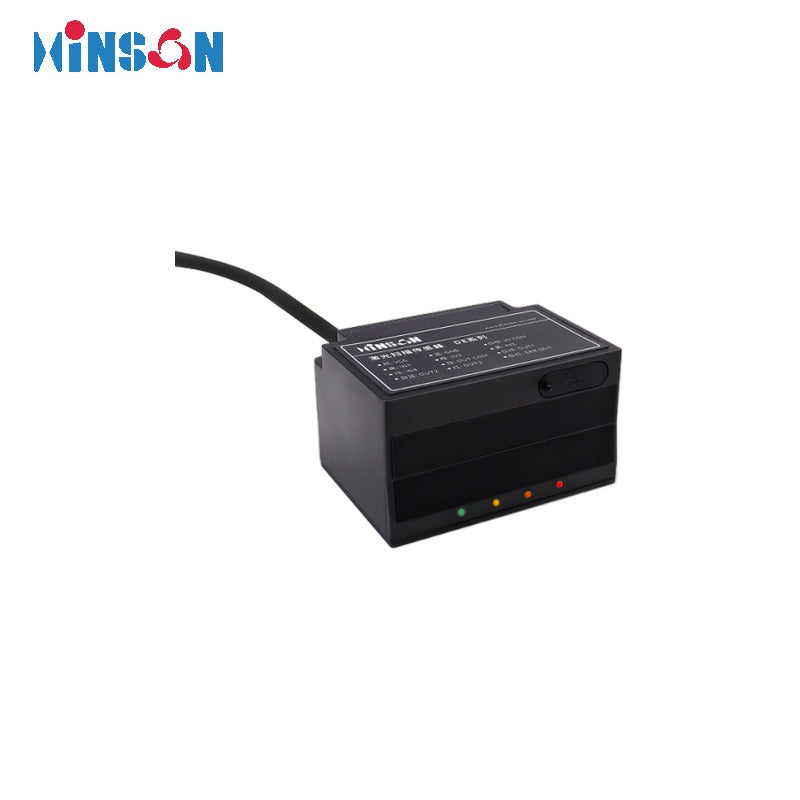

| Indicator LEDs | Green (Power), Yellow (Output 1), Orange (Output 2), Red (Output 3) |

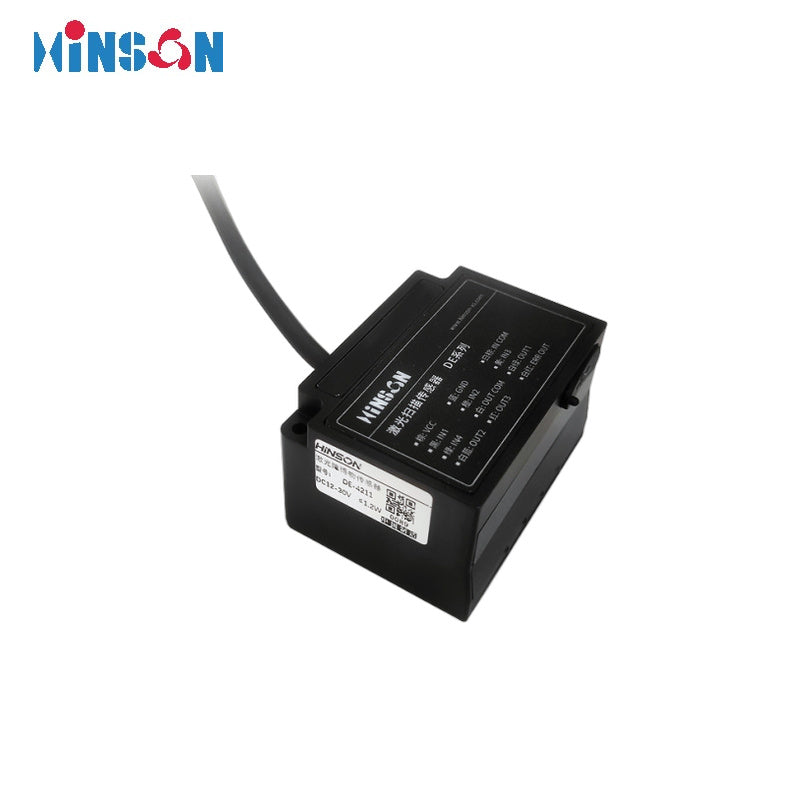

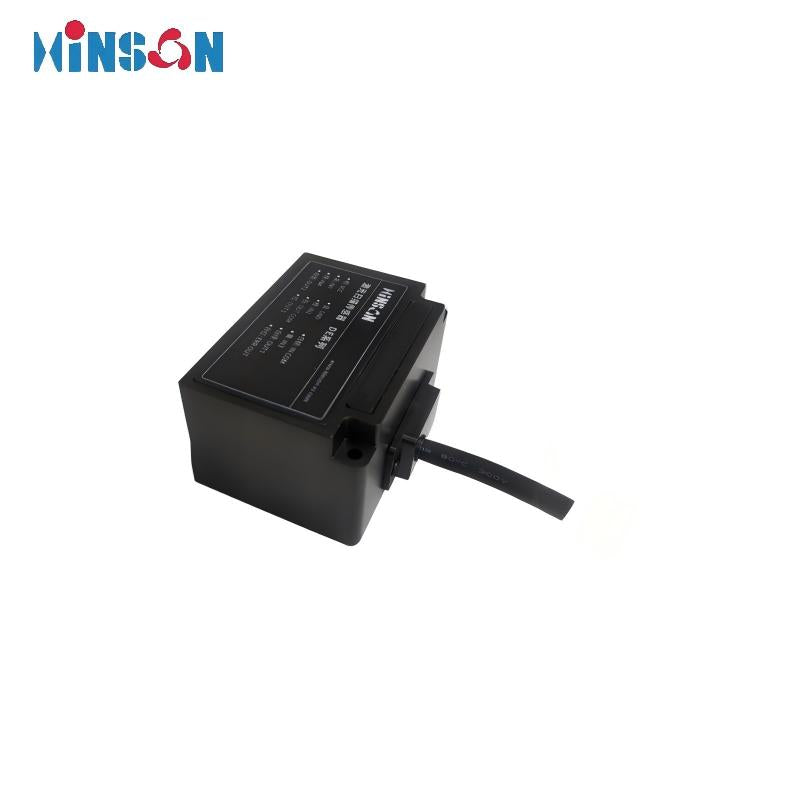

| Cable | 1.5 m (custom length available) |
| Object Reflectivity | 2 ~ 1000% |
| Ambient Light | < 80000 Lux (sunlight resistant) |
| Operating Environment | Indoor, -10°C ~ 50°C, < 80% RH (non‑condensing) |
