HIGH TORQUE | SKU:

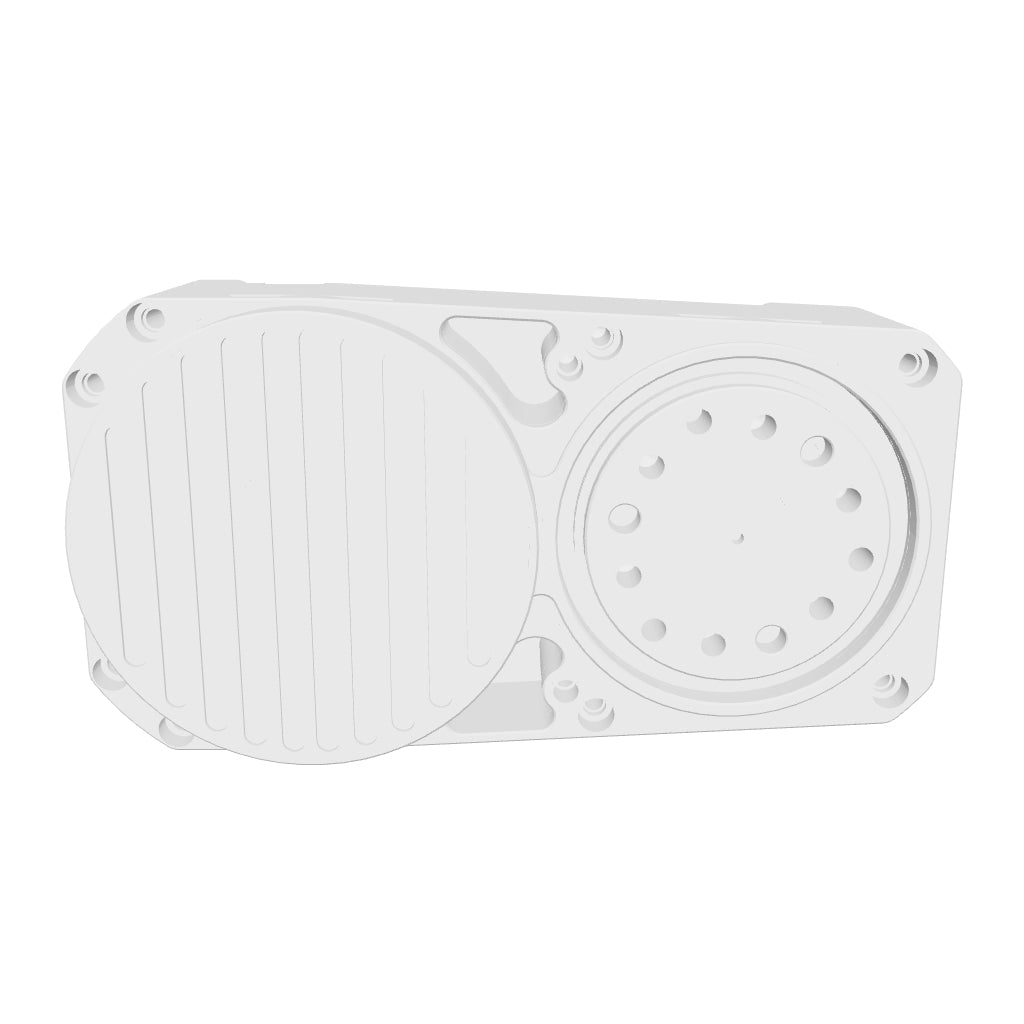

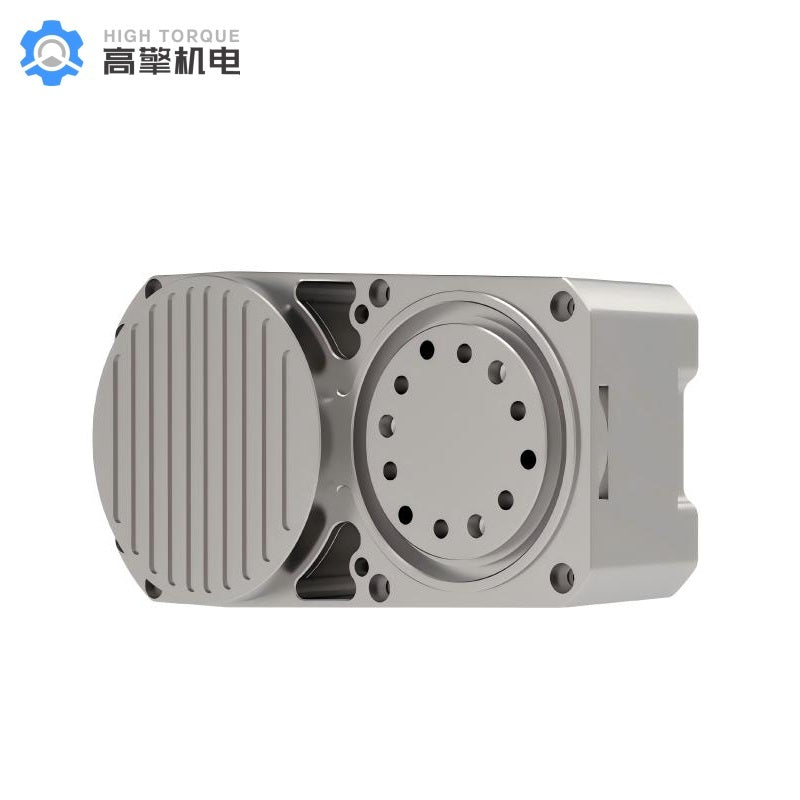

HIGH TORQUE HTPU-60BM-35-NE Motor
Regular price
$355.00
Unit price
HIGH TORQUE HTPU-60BM-35-NE Motor - HTPU-60BM-35-NE is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HIGH TORQUE HTPU-60BM-35-NE Motor
Regular priceFrom
$355.00
Unit price
HIGH TORQUE HTPU-60BM-35-NE Motor - HTPU-60BM-35-NE is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Length and Width |
115mm
|
| Width |
61.9mm
|
| Height | 37mm |
| Weight | 558g |
| Backlash | <10Arcmin |
| Repeat Positioning Accuracy | <12Arcmin |
| Absolute Positioning Accuracy | <15Arcmin |
| Torque Constant | 0.056Nm/A |
| Number of Pole Pairs | 14 |
| Reduction Ratio | 35 |
| Locked-rotor Torque | 36Nm |
| No-load RPM | 60RPM |
| Rated Torque | 10Nm |
| Rated RPM | 50RPM |
| Rating | 52W |
