HESAI

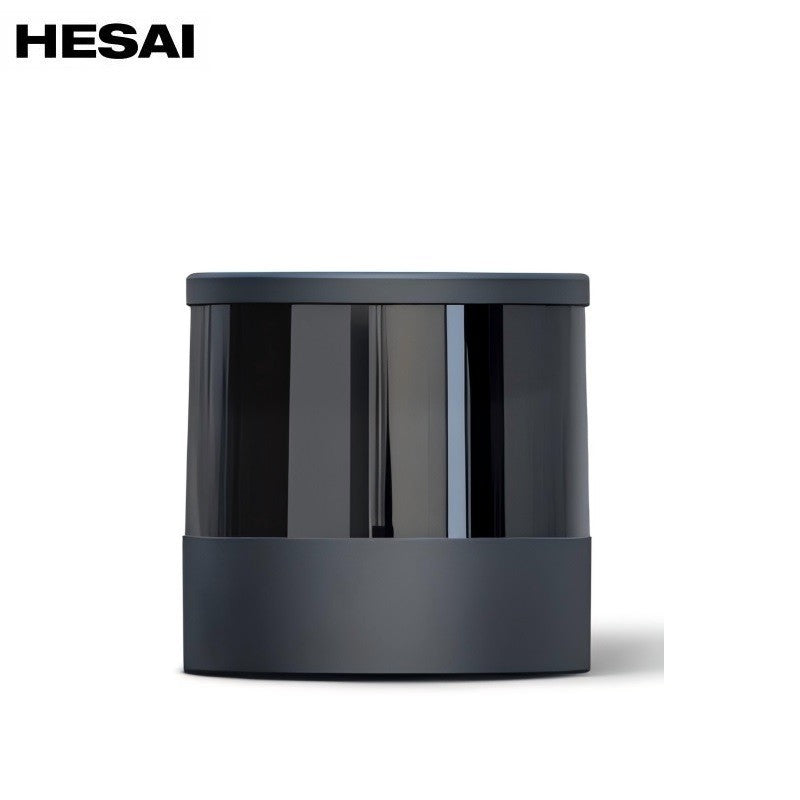

HESAI OT128 LiDAR

Get Your Personalized Quote!

Pricing for this specialized component is tailored to your specific project requirements and configuration needs. To receive a detailed quotation, please provide your contact information in the section below. Our dedicated sales specialists will reach out promptly to discuss your application and provide accurate pricing.

Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information



Technical Specifications

Parameter Value
Model OT128
Scanning method
Mechanical rotation
Number of channels
128
Instrumented range 0.3 to 230 m
Ranging capability 1 to 200 m (at 10% reflectivity)
Ranging accuracy ±3 cm (3 to 200 m, typical)
Horizontal FOV 360°
Horizontal resolution Configurable on-the-fly
0.1°/0.2° (10 Hz)
0.2°/0.4° (20 Hz)
Vertical FOV
40° (-25° to +15°)
Vertical resolution 0.125° (Channel 24 to 89)
0.36° (Channels 8 to 24, 89 to 121)
0.67° (Channels 4 to 8, 121 to 125)
1.2° to 1.72° (Channels 1 to 4, 125 to 128)
Frame rate 10 Hz, 20 Hz
Return mode
 Single Return: Last/Strongest/First
Dual Return: Last and Strongest, Last and First, First and Strongest
Wavelength
905 nm
Laser class
Class 1 Eye Safe
Ingress protection
IP6K7 & IP6K9K
Dimensions
Height: 132.3 mm
Top/Bottom: Φ111.4/116.0 mm or Φ111.4/118.0 mm
Rated voltage range
DC 9 to 32 V
Power consumption
29 W
Operating temperature
-40℃ to 75℃
Storage temperature
-40℃ to 95℃
Weight
2.2 kg
Data transmission
Automotive Ethernet, 1000BASE-T1, slave mode
Measurements
Distance, azimuth angle, and reflectivity
Valid point rate
Single Return: 3456000 pts/sec (max)
Dual Return:   6912000 pts/sec (max)
Point cloud data rate
Single Return:   130.61 Mbps (max)
Dual Return:   261.22 Mbps (max)
Clock source
PTP (802.1AS Automotive, 802.1AS AUTOSAR)
PTP clock accuracy
≤1 μs
PTP clock drift
≤1 μs/s


OT128_User_Manual.pdf

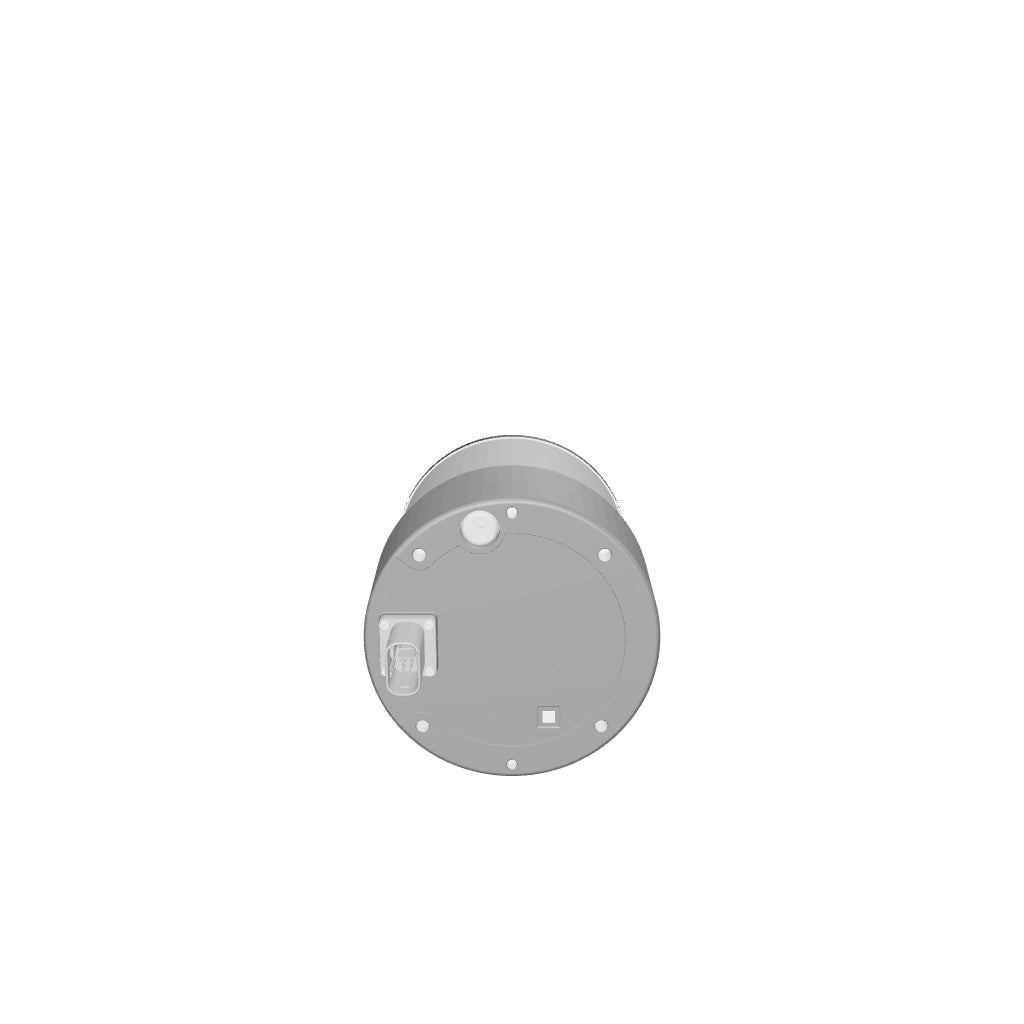

HESAI_OT128_LiDAR_stp.zip
