HESAI | SKU:

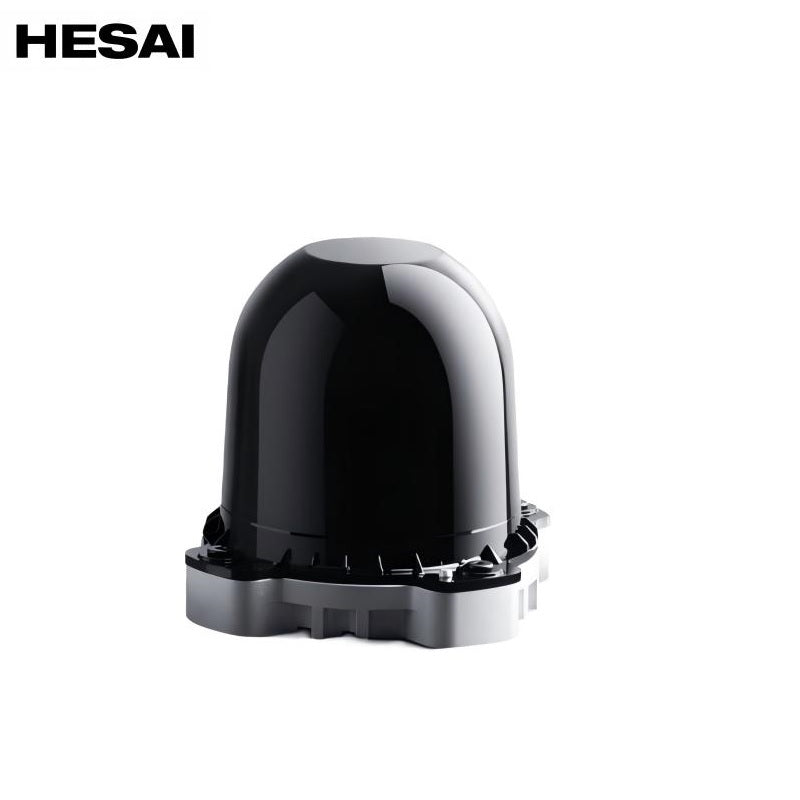

HESAI JT16 LiDAR
Regular price
$745.00
Unit price
/
Unavailable
HESAI JT16 LiDAR - HESAI JT16 LiDAR is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HESAI JT16 LiDAR
Regular price
From
$745.00
Unit price
/
Unavailable
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Model | JT16 |
|
Scanning method
|
Mechanical rotation
|
| Number of channels |
16
|
| Instrumented range | 0.15 to 100 m |
| Ranging capability | 30 m (at 10% reflectivity, for all channels) |
| Ranging accuracy |
±3 cm (typical)
|
|
Ranging precision
|
3 cm (typical, 1σ)
|
| Horizontal FOV | 360° |
| Horizontal resolution | 0.6° (5 Hz) 1.2° (10 Hz) |
| Vertical FOV |
40° (0° to 40°)
|
| Vertical resolution | 2.67° (average) |
| Frame rate | 5/10 Hz |
|
Return mode
|
Single return: Last/Strongest (default) |
| Wavelength |
905 nm
|
|
Laser class
|
Class 1 Eye Safe
|
|
Ingress protection
|
IP6K6
|
|
Dimensions
|
Height: 64 mm
Bottom: Φ 61.53/75.5 mm |
|
Rated voltage range
|
DC 12 to 16 V
|
|
Power consumption
|
4.3 W
|
|
Operating temperature
|
-20℃ to 55℃
|
|
Storage temperature
|
-40℃ to 70℃
|
|
Weight
|
199.7 g
|
|
Data transmission
|
RS485 (3000000 8-N-1)
|
|
Measurements
|
Distance, azimuth, and reflectivity
|
|
Valid point rate
|
48000 pts/sec
|
|
Point cloud data rate
|
1.92 Mbp
|
