HESAI

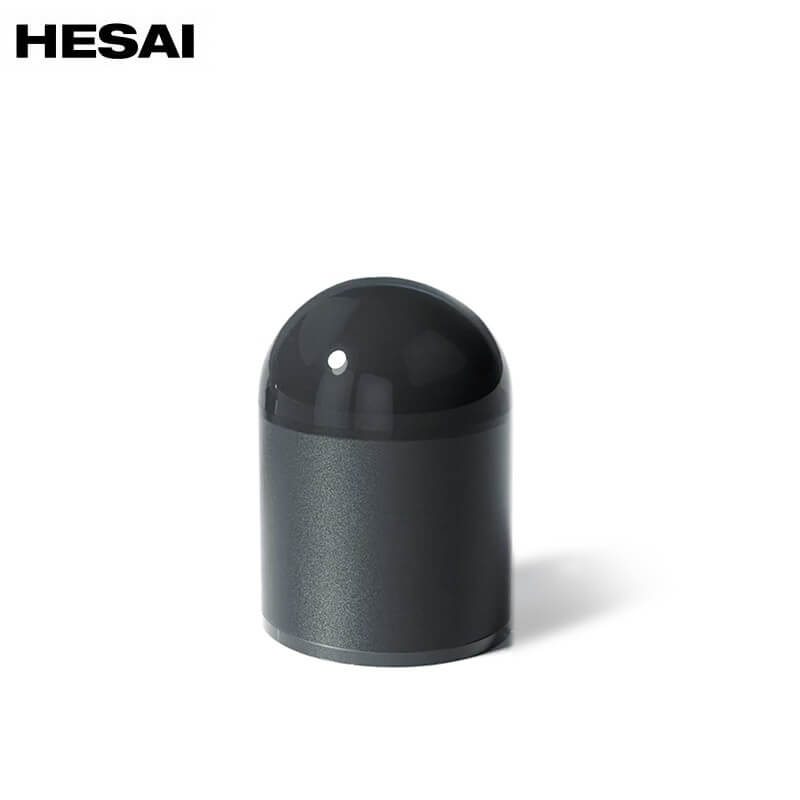

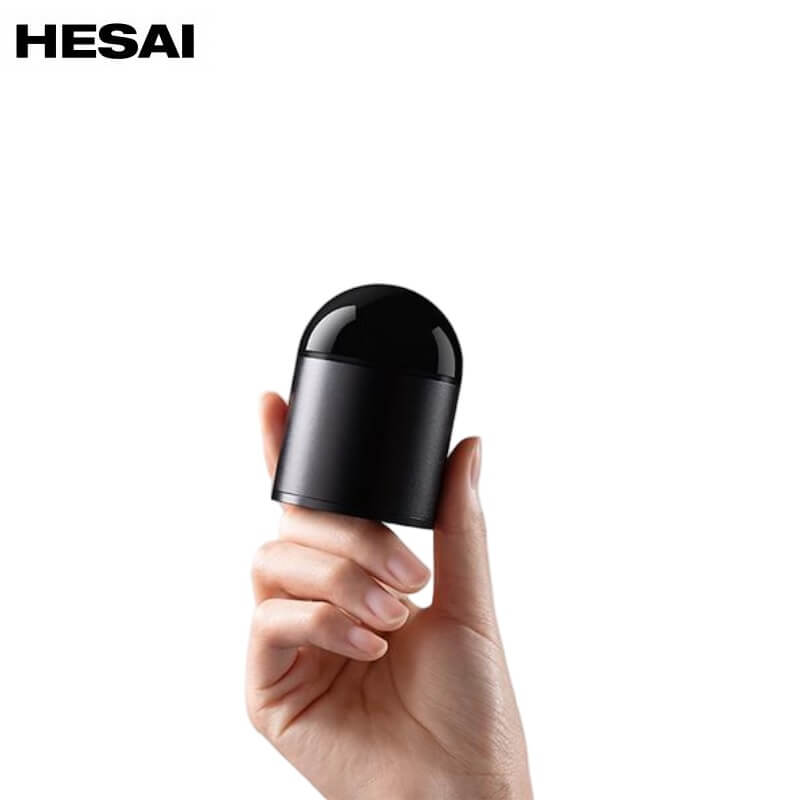

HESAI JT128 LiDAR

$1,490.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Technical Specifications

Parameter Value
   Model   JT128
   Scanning method
  Mechanical rotation
   Number of channels
  16
   Instrumented range   0.15 to 100 m
   Ranging capability   30 m (at 10% reflectivity, for all channels)
   Ranging accuracy
  ±3 cm (typical)
   Ranging precision
  3 cm (typical, 1σ)
   Horizontal FOV   360°
   Horizontal resolution 0.6° (5 Hz)
1.2° (10 Hz)
   Vertical FOV
40° (0° to 40°)
   Vertical resolution 2.67° (average)
   Frame rate 5/10 Hz
Return mode
 Single return:   Last/Strongest (default)
   Wavelength
905 nm
Laser class
Class 1 Eye Safe
Ingress protection
IP6K6
Dimensions
Height: 64 mm
Bottom: Φ 61.53/75.5 mm
Rated voltage range
DC 12 to 16 V
Power consumption
4.3 W
Operating temperature
-20℃ to 55℃
Storage temperature
-40℃ to 70℃
Weight
199.7 g
Data transmission
RS485 (3000000 8-N-1)
Measurements
Distance, azimuth, and reflectivity
Valid point rate
48000 pts/sec
Point cloud data rate
1.92 Mbp
