HAITAI | SKU:

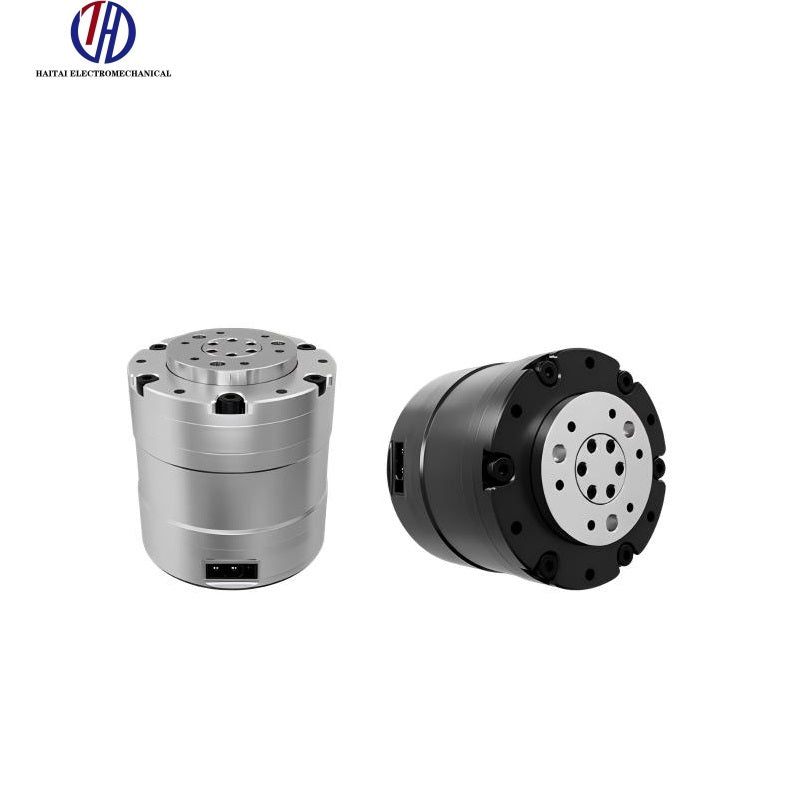

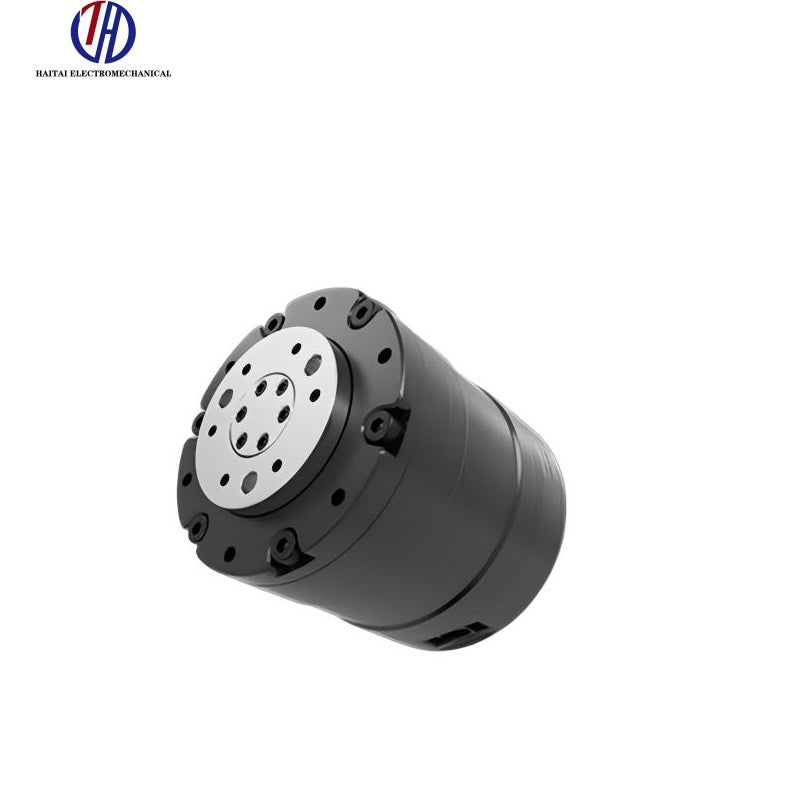

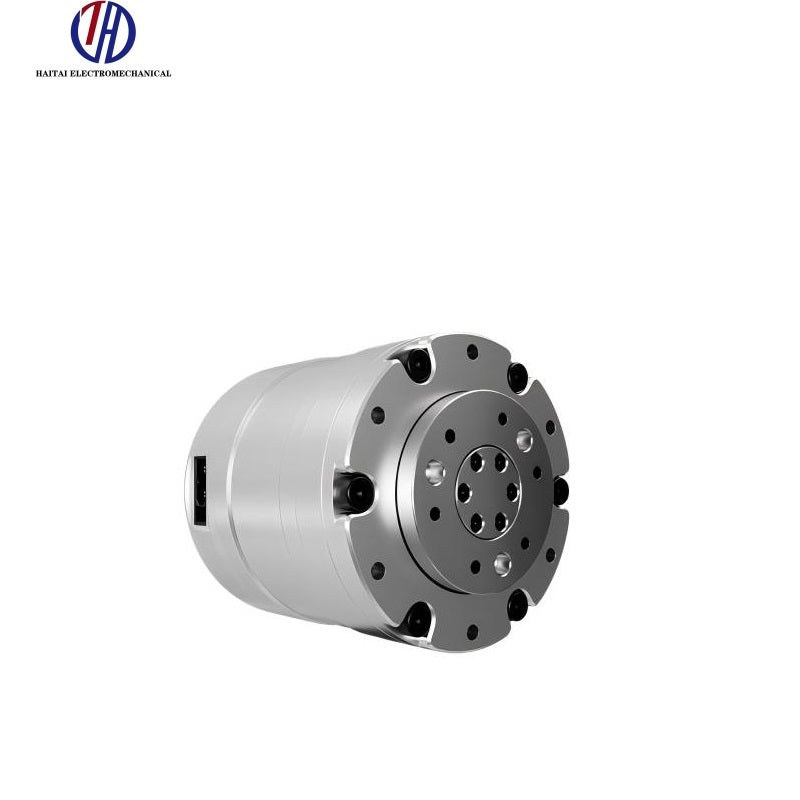

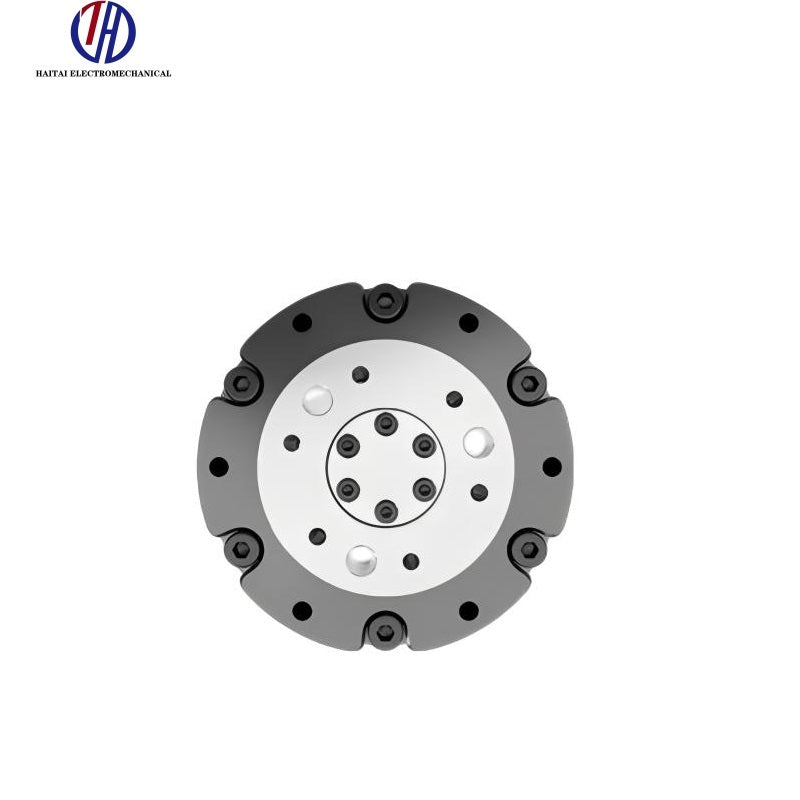

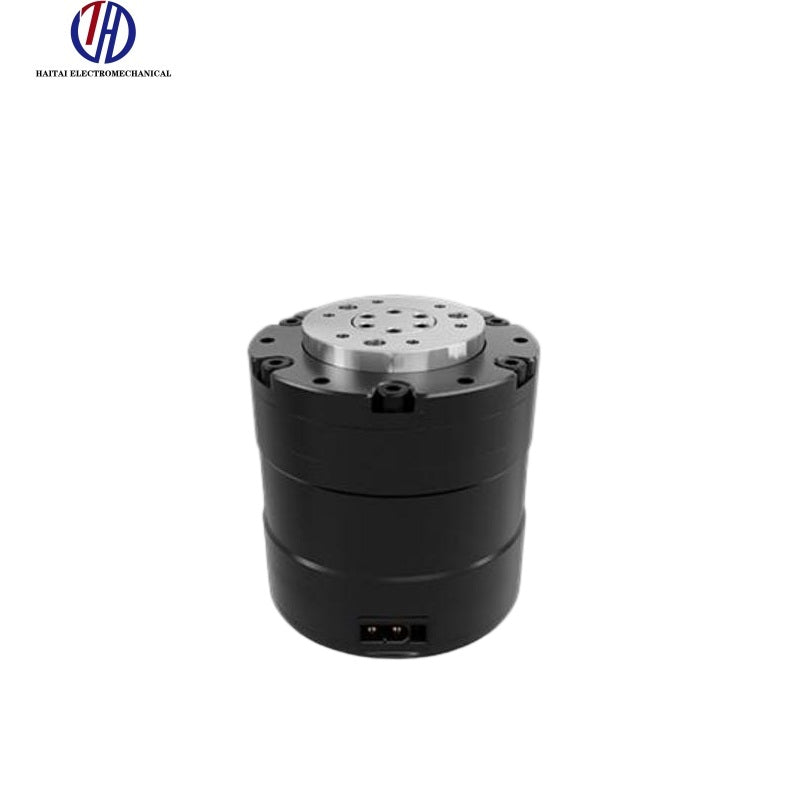

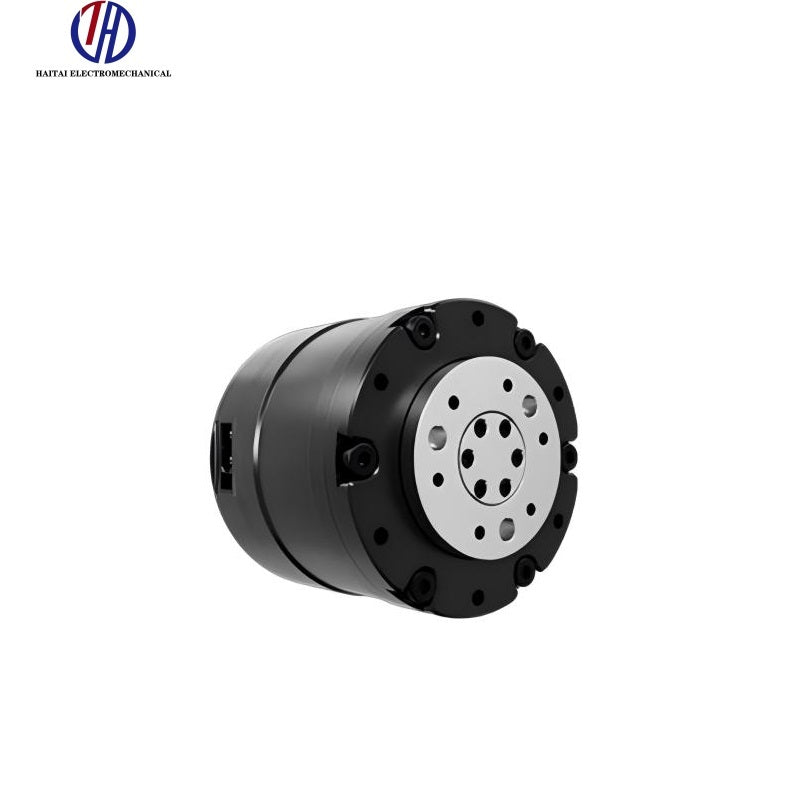

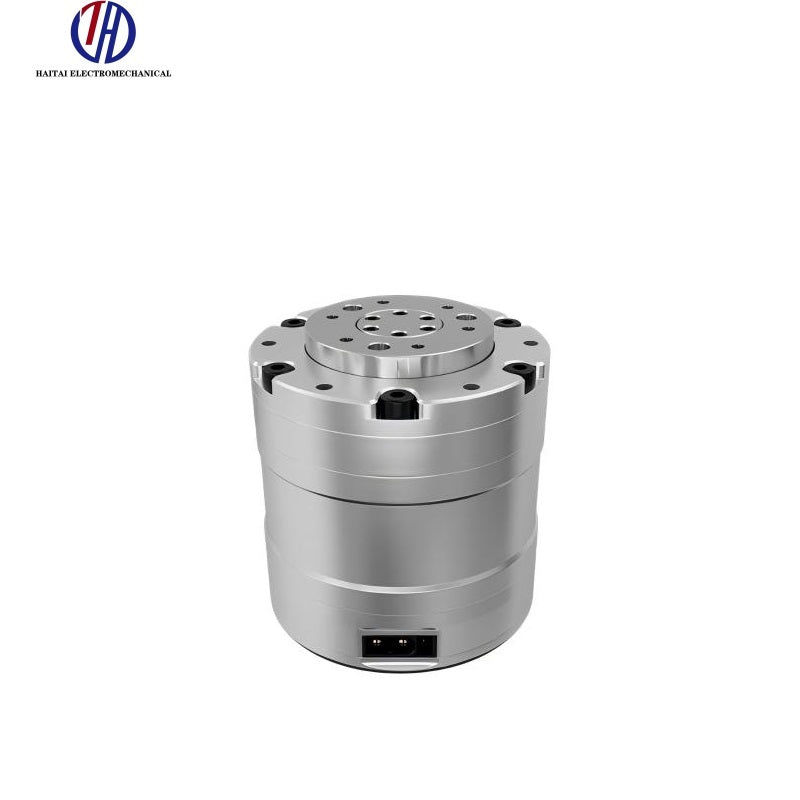

HAITAI HT4310-J36-2E Motor
Regular price
$710.00
Unit price
/
Unavailable
HAITAI HT4310-J36-2E Motor - HT4310-J36-2E Motor / Silver is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HAITAI HT4310-J36-2E Motor
Regular price
$710.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Reducer Ratio | 36 |
| Nominal Voltage | 24V |
| Nominal Current | 6.1A |
| Nominal Power | 146.4W |
| Nominal Speed | 78rpm |
| Nominal Torque | 12Nm |
| Peak Speed | 93rpm |
| Peak Current | 18A |
| Peak Torque | 36Nm |
| Motor Efficiency | 70% |
| Torque Constant | 1.4Nm/A |
| Weight | 377g |
| Reducer Backlash | 10Arcmin |
| Motor Size (Diameter×Thickness) | 56×60mm |
| Communication Protocol | CAN |
| Communication Baudrate | 1M |
