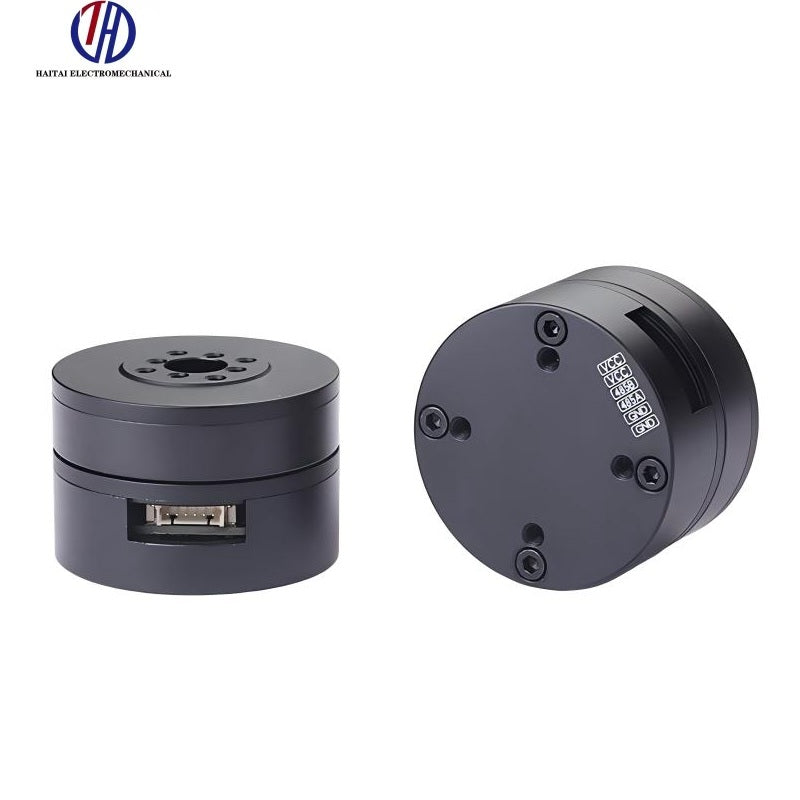

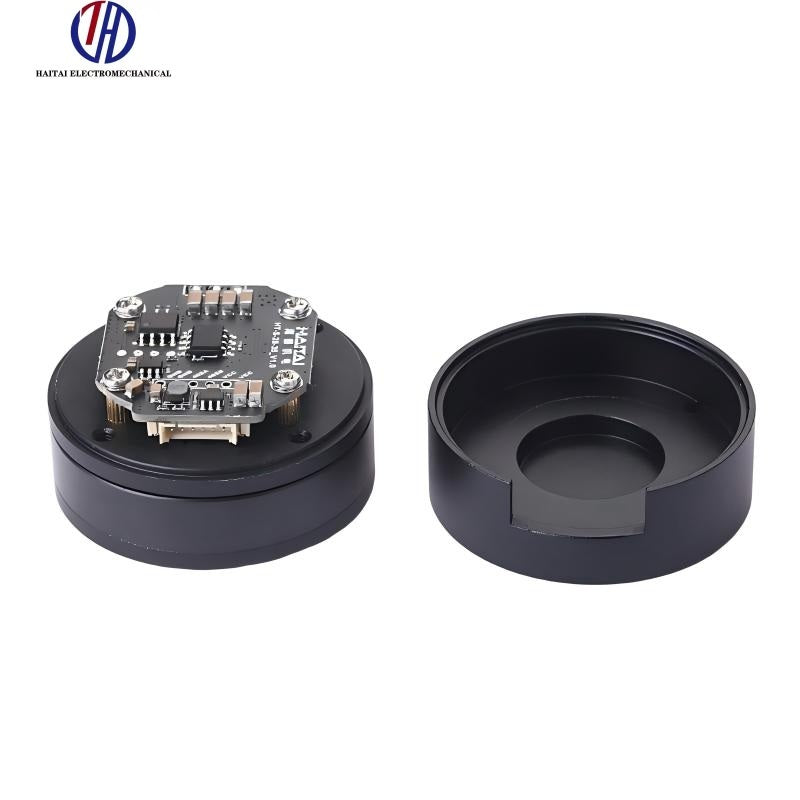

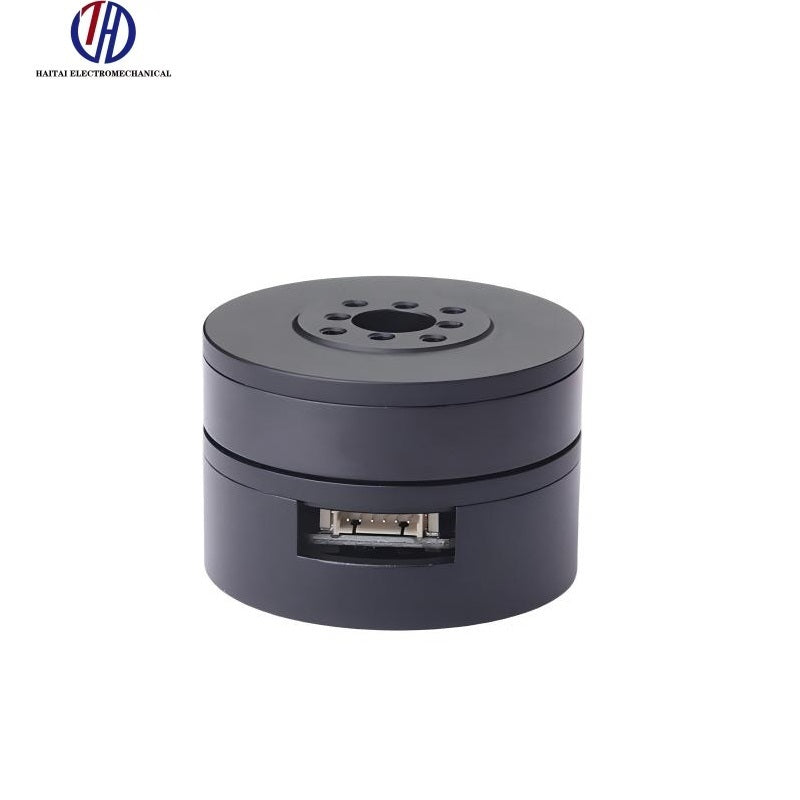

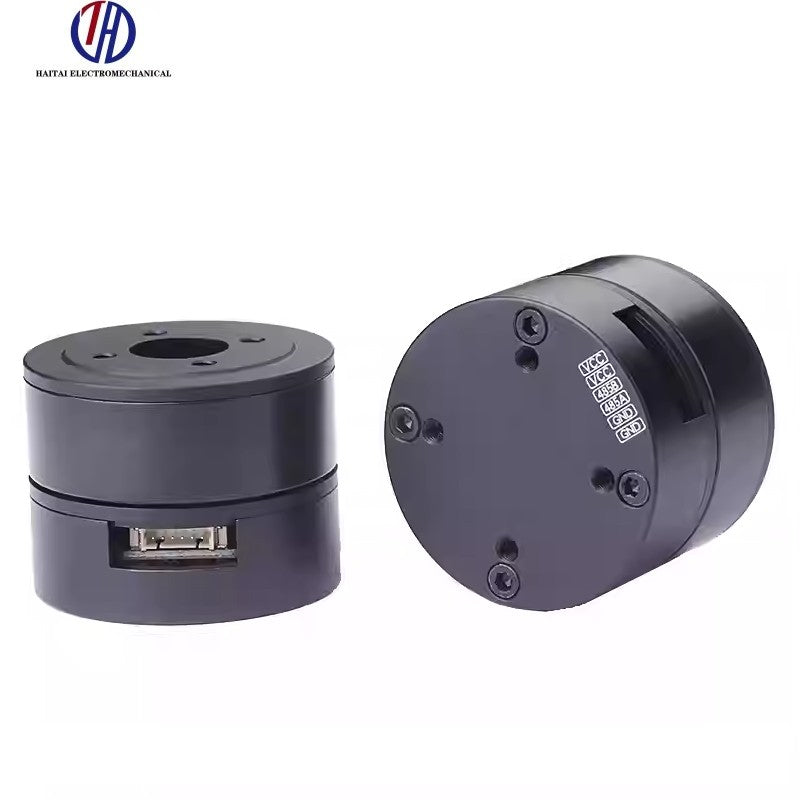

HAITAI HT-S-3505 Motor

$90.00

Version

HT-S-3505 Inculde Driver (RS485)

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Turns	40
Wire Diameter*Strands	0.21mm
Nominal Voltage	12V
Nominal Current	1.5A
Nominal Torque	0.08N.M
Nominal Speed	1400rpm
Max No-load Speed	1800rpm
Stall Torque	0.21N.M
Stall Current	2A
Line Resistance	5.2Ω
Wiring Connection	Y
Phase to Phase Inductance	0.66mH
Speed Constant	116rpm/v
Torque Constant	0.05N.M/A
Rotor Inertia	55gcm^2
Number of Pole Pairs	11Pairs
Motor Weight	78.5g
Connector	ZH1.25/6Pin
Drive Input Voltage Range	12-24V
Drive Current Range	0.03-2.5A
Communication	RS485
Encoder Resolution	14-bit/0.022°
Control Modes	Torque Mode (Open Loop) Speed Mode Position Mode
Working Temperature	-40°C to 85°C
Max Demagnetize Temperature	120°C
