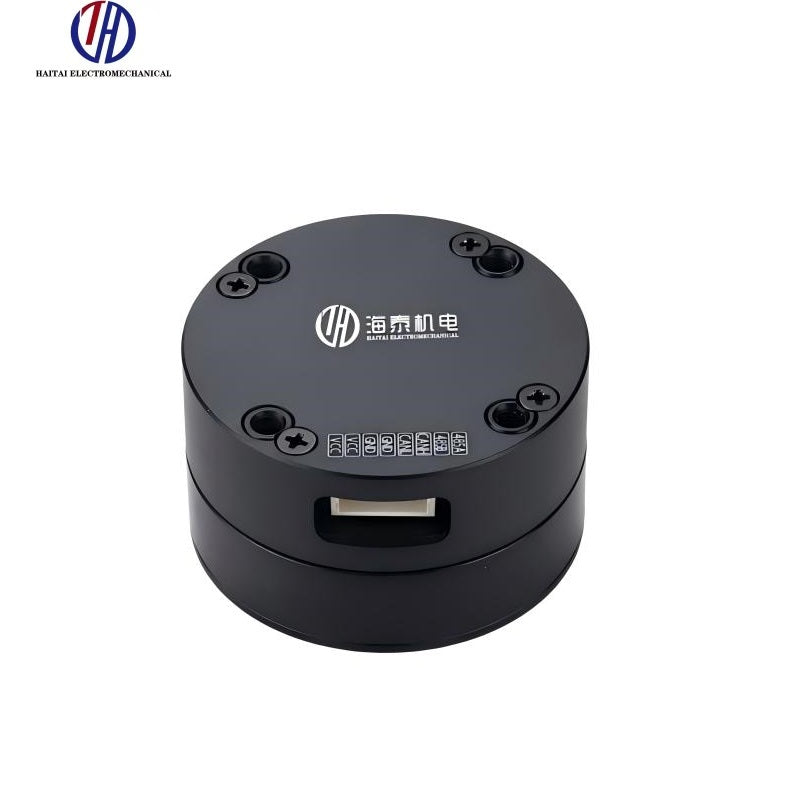

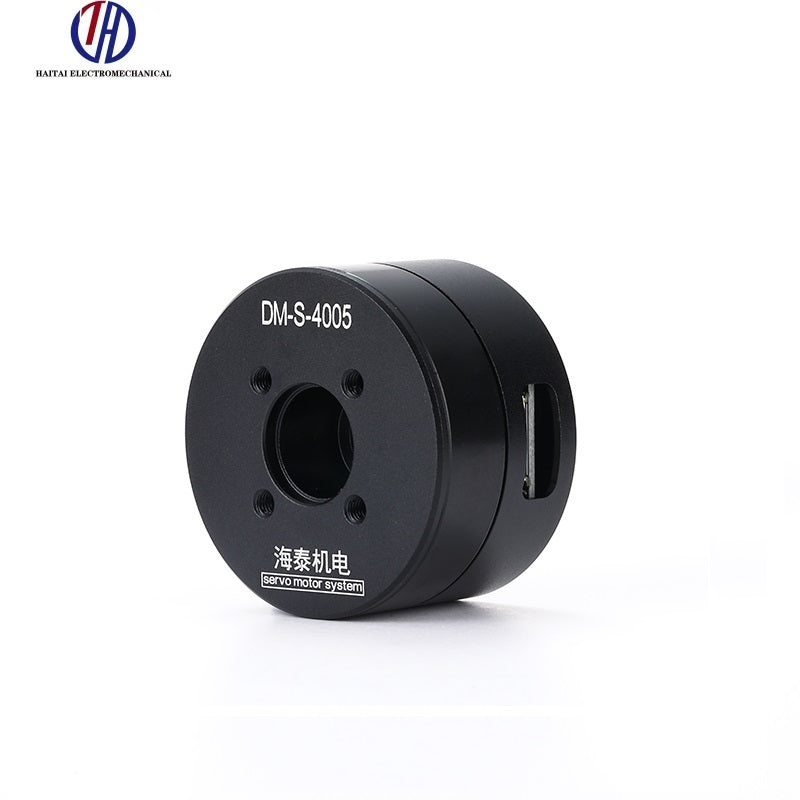

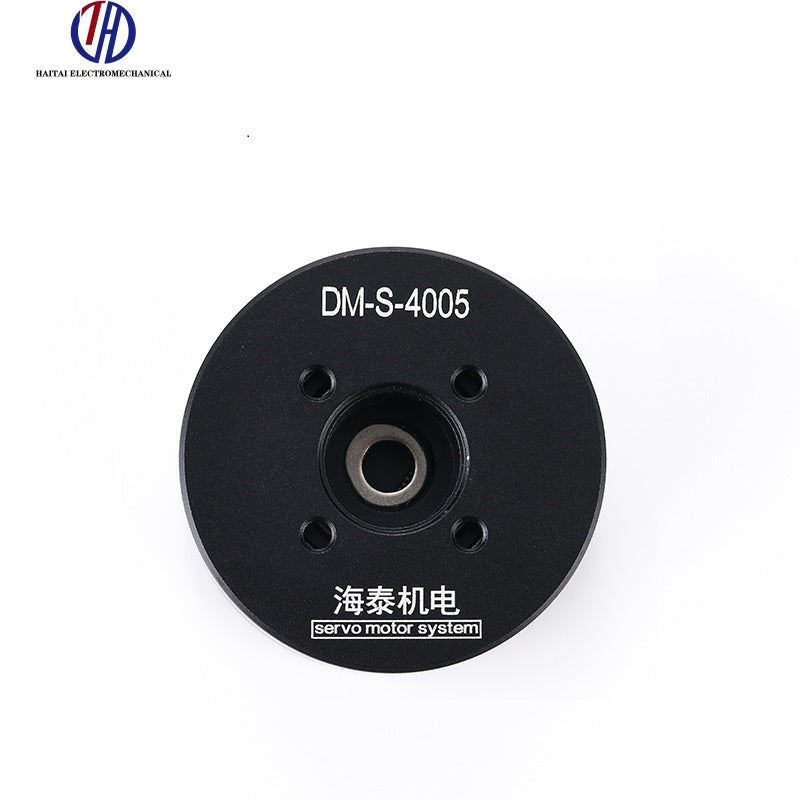

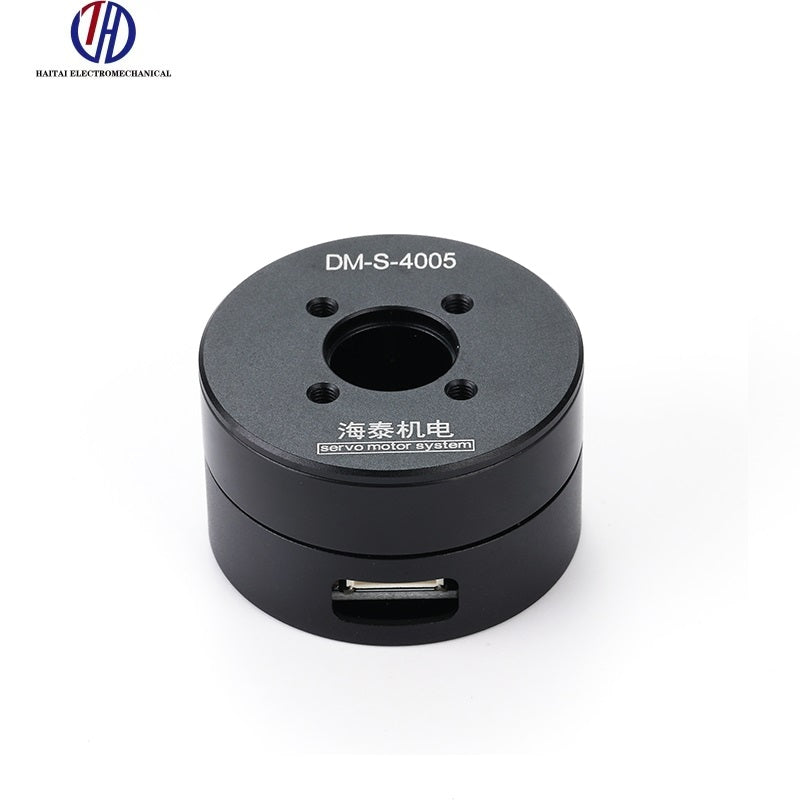

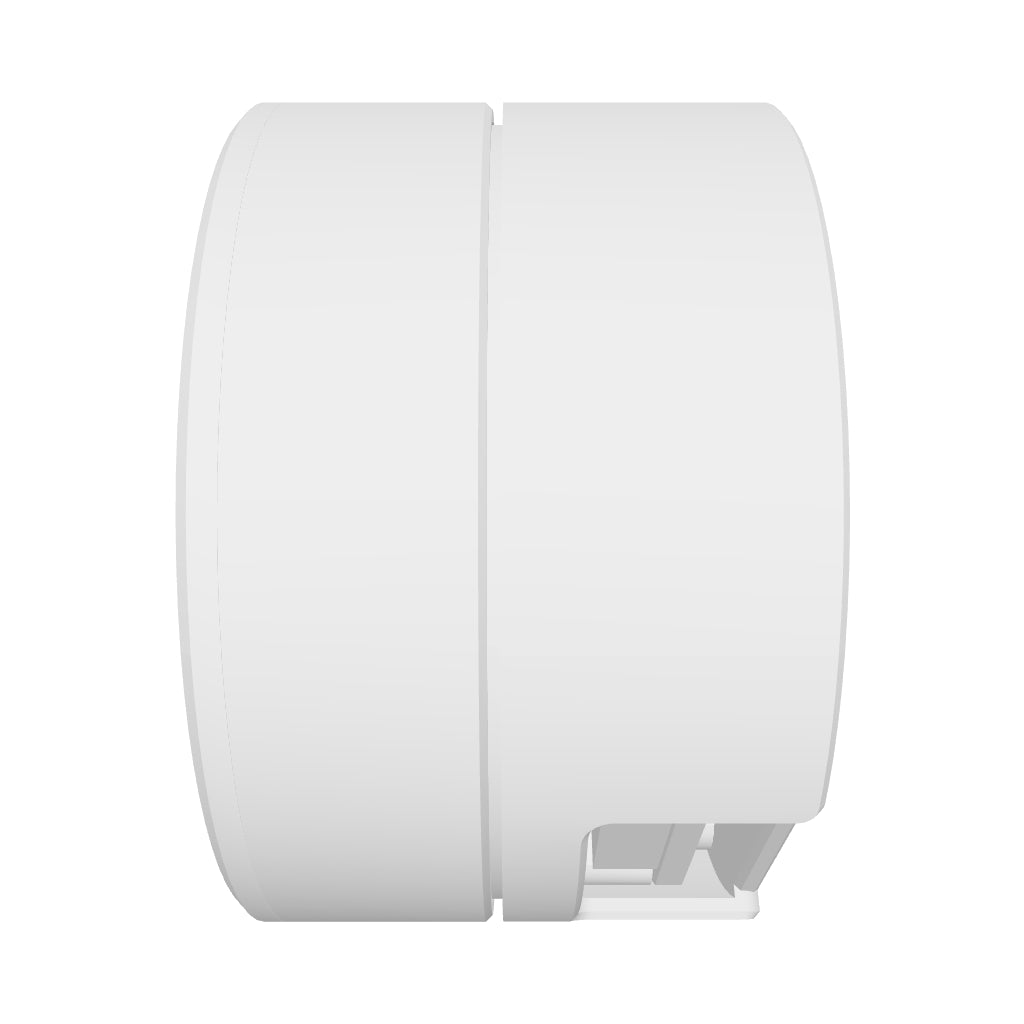

HAITAI DM-S-4005 Motor
Regular price
$75.00
Unit price
HAITAI DM-S-4005 Motor - DM-S-4005 (RS485 & CAN) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HAITAI DM-S-4005 Motor
Regular price
$75.00
Unit price
HAITAI DM-S-4005 Motor - DM-S-4005 (RS485 & CAN) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Voltage | 12V |
| Voltage Range | 10～28V |
| Nominal Current | 1.1A |
| Nominal Power | 13.2W |
| Nominal Torque | 0.09N.M |
| Nominal Speed | 467RPM |
| No-load Max Speed | 1412RPM |
| Peak Torque | 0.15N.M |
| Peak Current | 1.9A |
| Speed Constant | 117rpm/v |
| Torque Constant | 0.08N.M/A |
| Rotor Inertia | 65gcm^2 |
| Number of Pole Pairs | 11Pairs |
| Phase Resistance | 3.17Ω |
| Phase Inductance | 0.54mH |
| Motor Weight | 70g |
| Communication | RS485/CAN |
| Encoder Type | Single-turn Absolute |
| Resolution | 14bit |
| Working Temperature | -20～80℃ |
