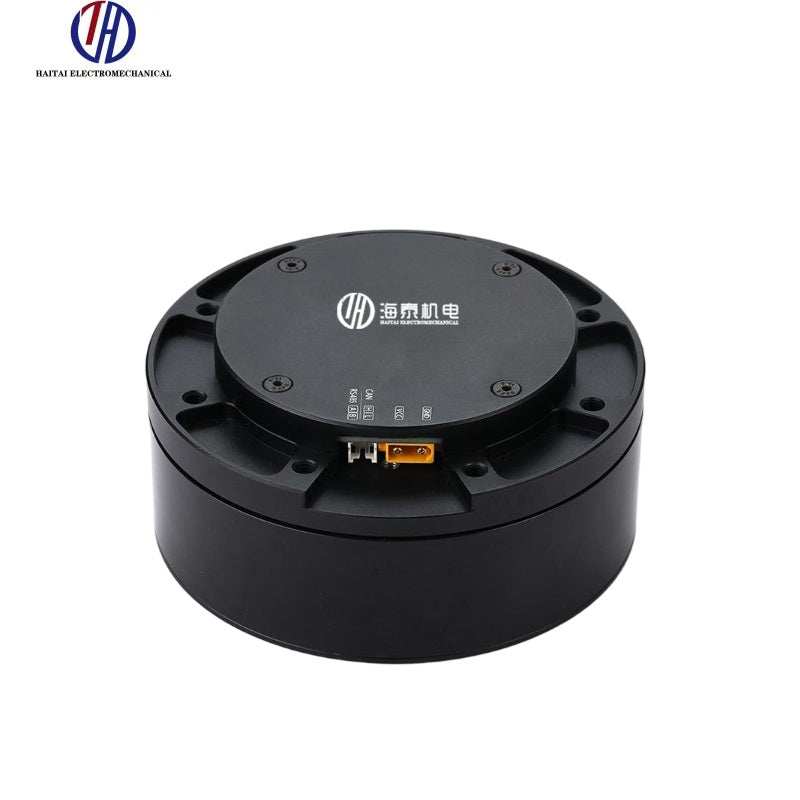

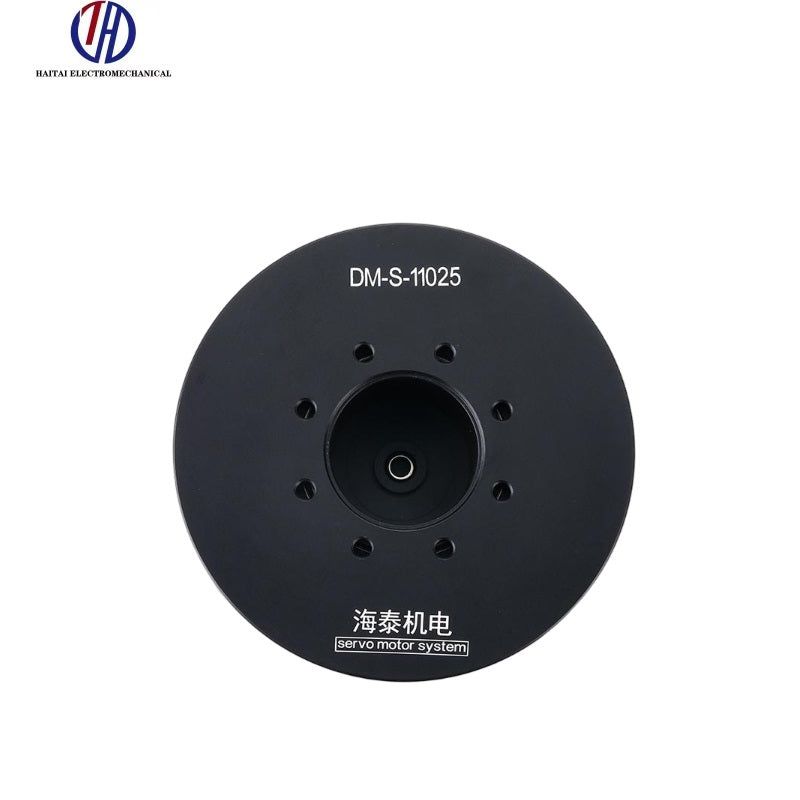

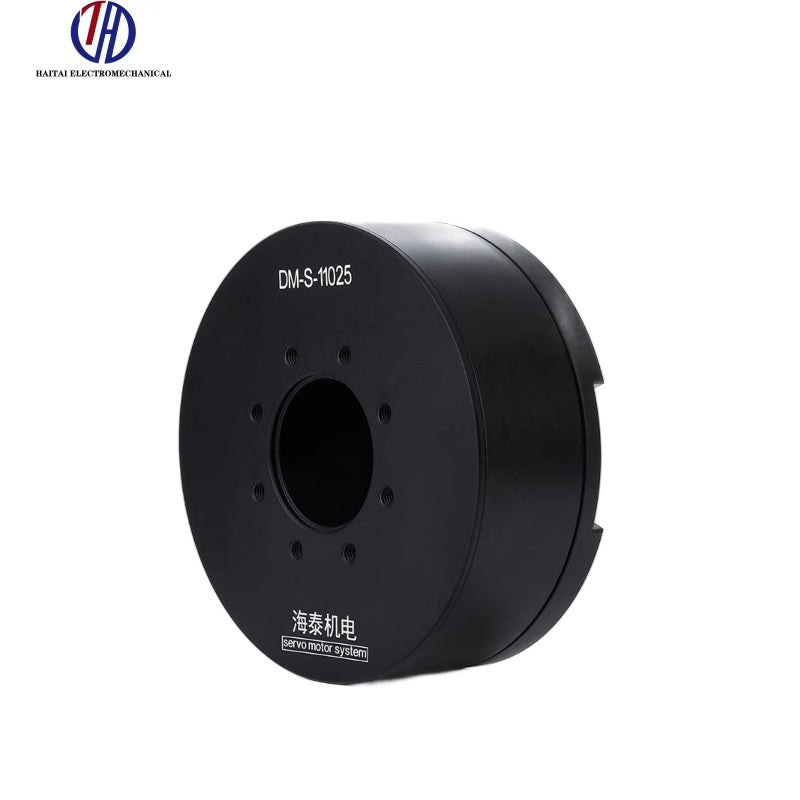

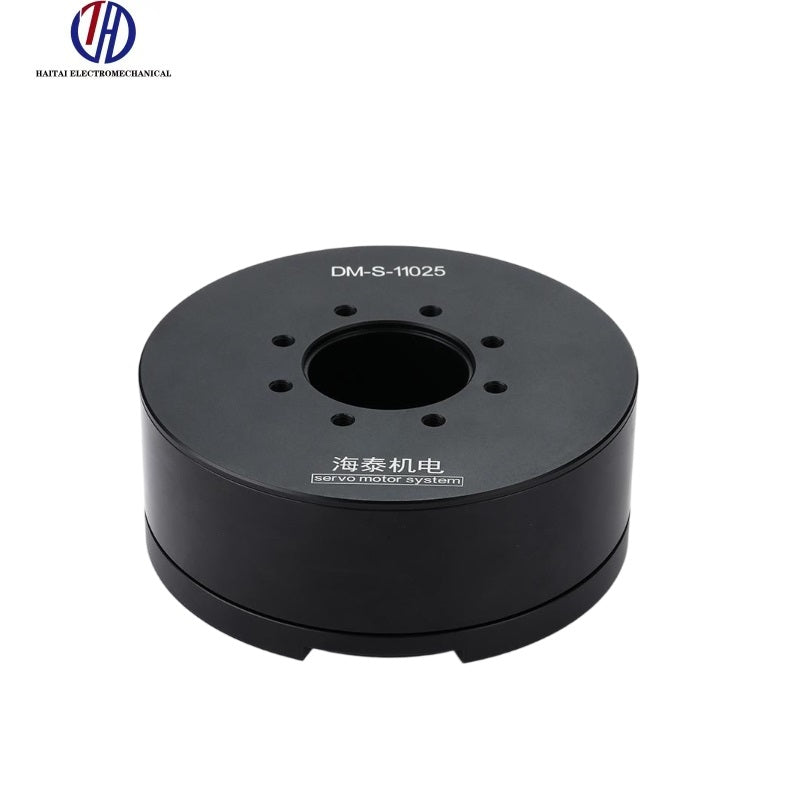

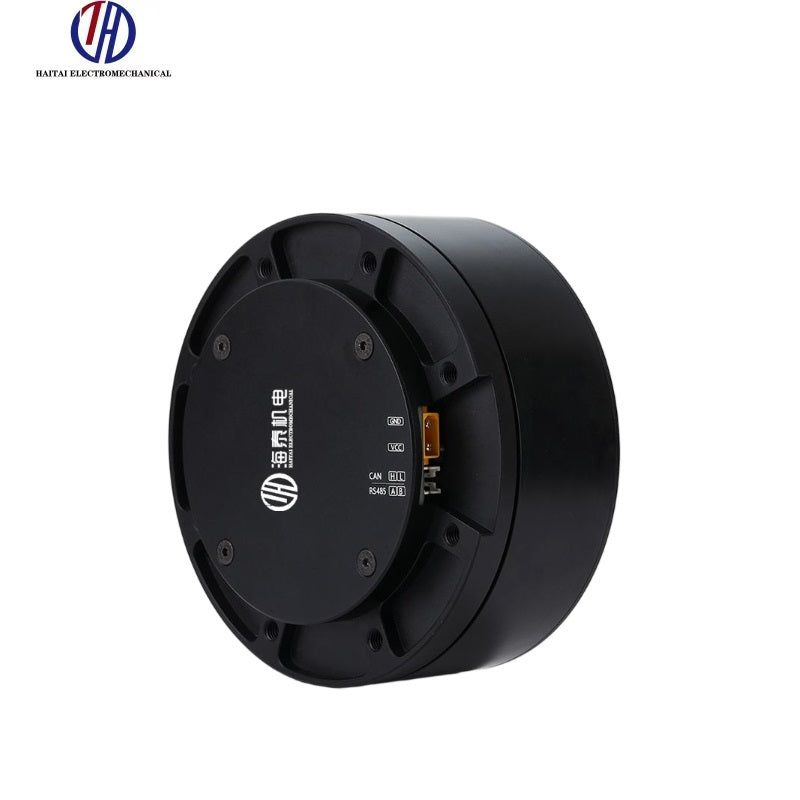

HAITAI DM-S-11025 Motor
Regular price
$255.00
Unit price
HAITAI DM-S-11025 Motor - DM-S-11025 (RS485 & CAN) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HAITAI DM-S-11025 Motor
Regular price
$255.00
Unit price
HAITAI DM-S-11025 Motor - DM-S-11025 (RS485 & CAN) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Voltage | 36V |
| Voltage Range | 12～40V |
| Nominal Current | 3.8A |
| Nominal Power | 136.8W |
| Nominal Torque | 4N.M |
| Nominal Speed | 168RPM |
| No-load Max Speed | 330RPM |
| Peak Torque | 8.5N.M |
| Peak Current | 16A |
| Speed Constant | 9.2rpm/v |
| Torque Constant | 1.03N.M/A |
| Rotor Inertia | 7796gcm^2 |
| Number of Pole Pairs | 21Pairs |
| Phase Resistance | 1.5Ω |
| Phase Inductance | 1.13mH |
| Motor Weight | 1028g |
| Communication | RS485/CAN |
| Encoder Type | Single-turn Absolute |
| Resolution | 14bit |
| Working Temperature | -20～80℃ |
