Feetech | SKU:
FEETECH SM8512BL Servo Motor
Regular price
$212.00
Unit price
/
Unavailable
FEETECH SM8512BL Servo Motor - SM-8512BL / MODBUS-RTU Protocol is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments

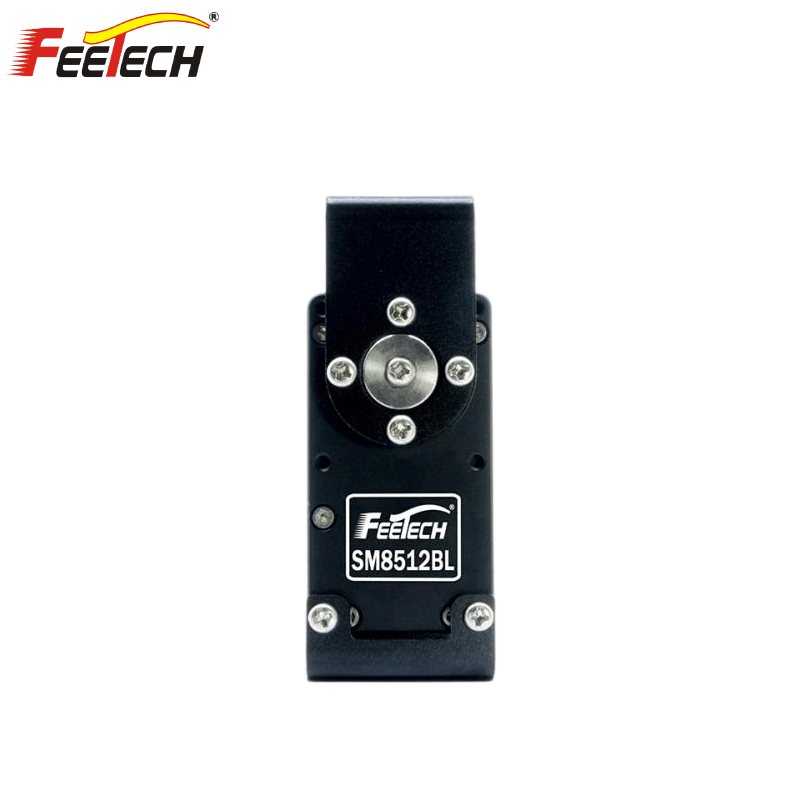

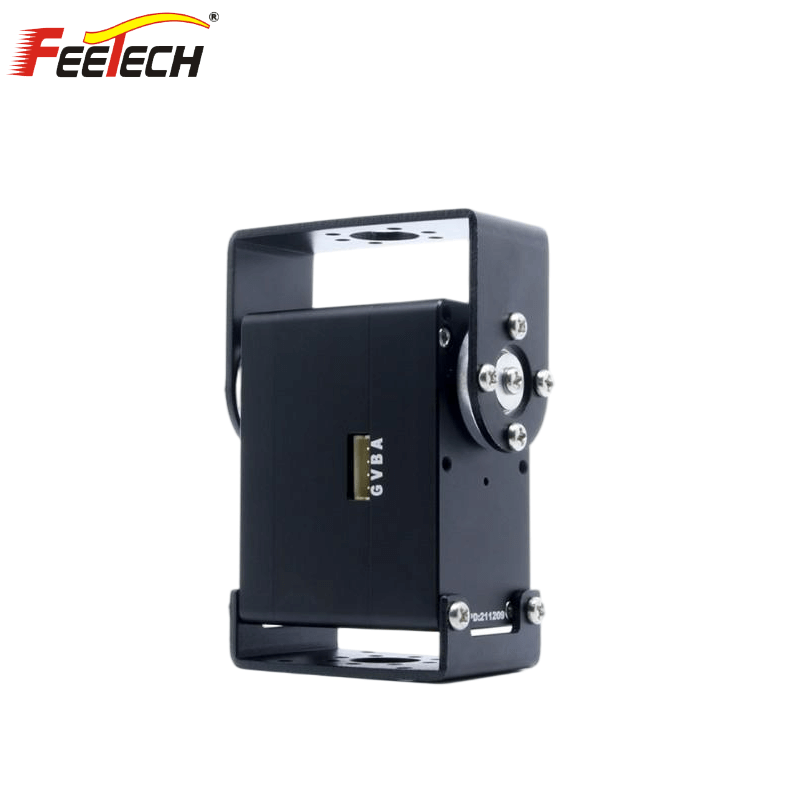

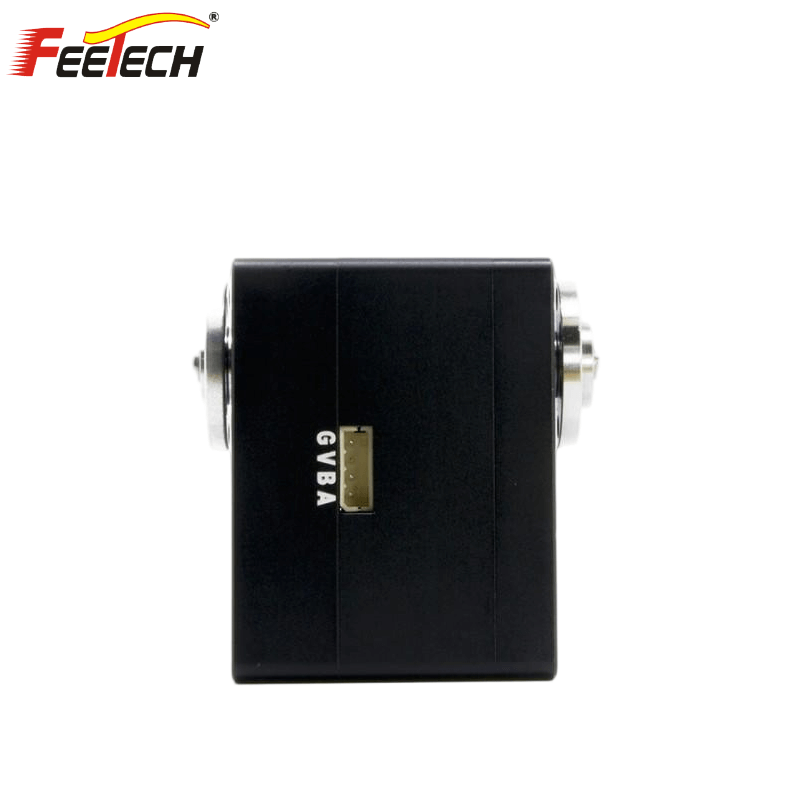

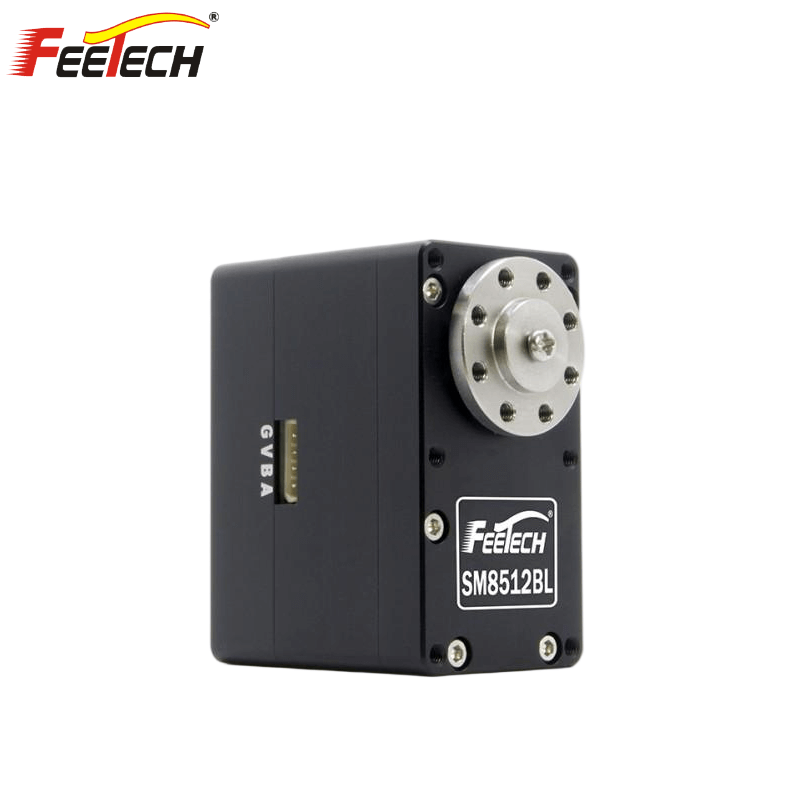

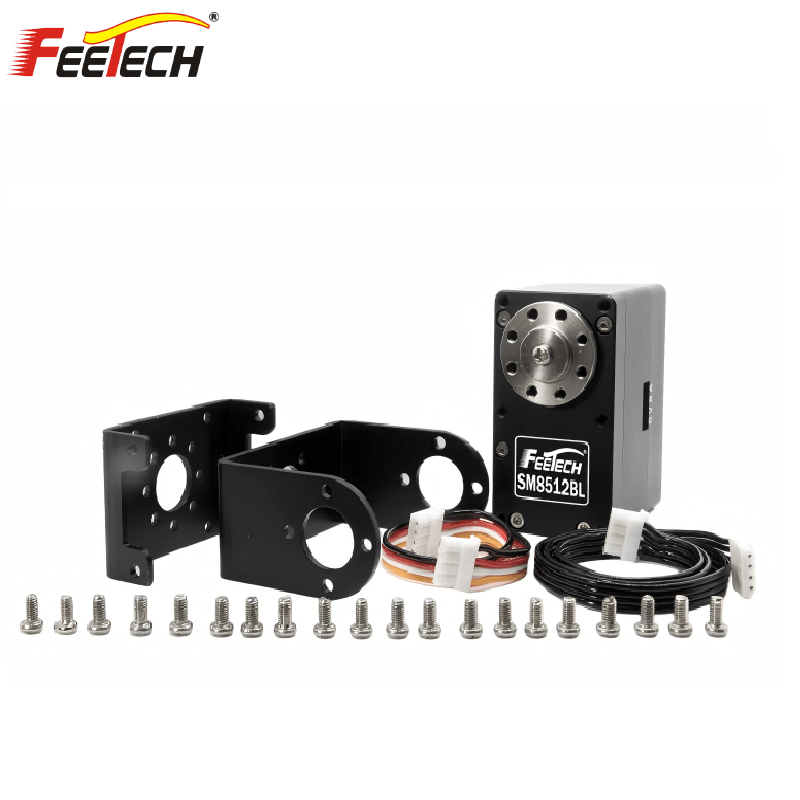

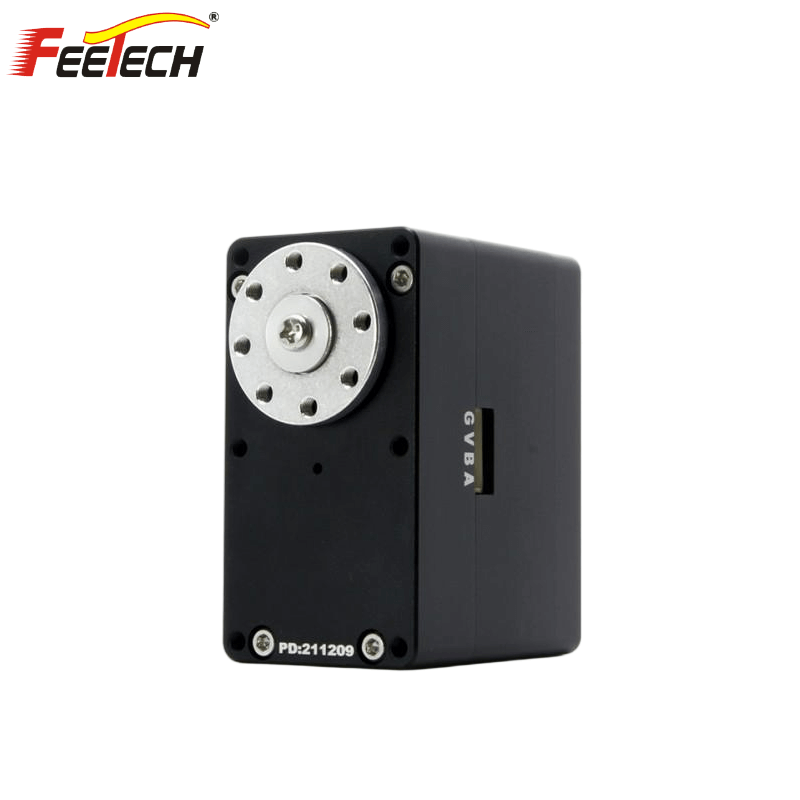

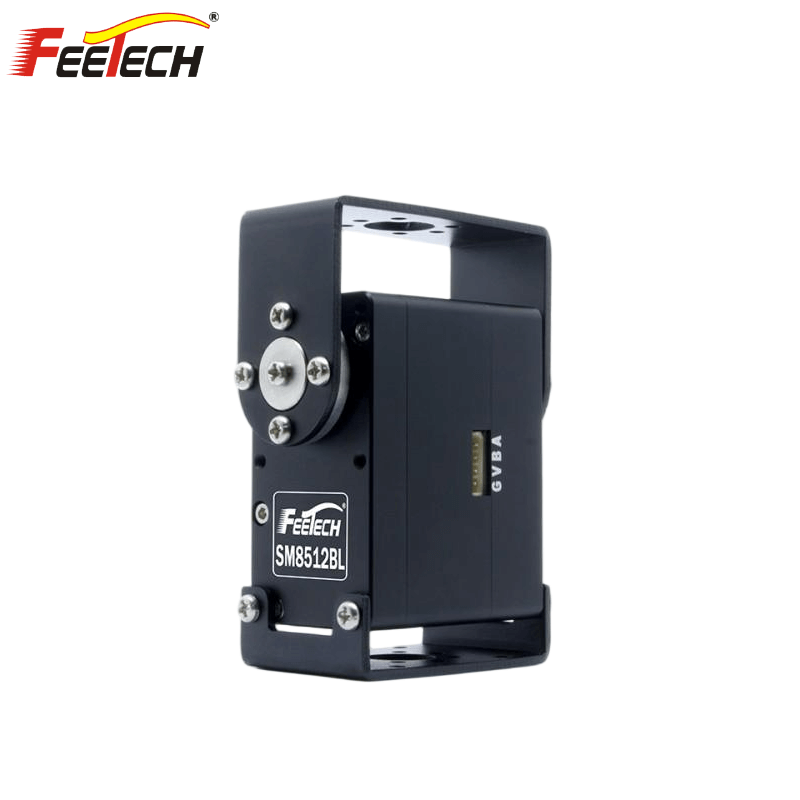

FEETECH SM8512BL Servo Motor
Regular price
From
$212.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SM-8512BL |
| Product Name | 12V 85kg.cm Serial Control RS485 Servo |
| Storage Temperature Range | -30℃～80℃ |
| Operating Temperature Range | -20℃～70℃ |
| Dimensions | A：62mm B：34mm C：47mm |
| Weight | 215±1g |
| Gear type | Steel |
| Limit angle | No limit |
| Bearing | Ball bearings |
| Horn gear spline | 15T(7.6mm) |
| Horn type | Aluminium |
| Case | Aluminium |
| Connector wire | 40CM |
| Motor | Brushless Motor |
| Operating Voltage Range | 12V |
| No load speed | 0.167sec/60degree@12V |
| Runnig current(at no load) | 540 mA@12V |
| Peak stall torque | 85kg.cm@12V |
| Rated torque | 28kg.cm@12V |
| Stall current | 7.9A@12V |
| Command signal | Digital Packet |
| Protocol Type | Half Duplex Asynchronous Serial Communication |
| ID range | 0-253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Running degree | 360° (when 0~4095) |
| Feedback | Load, Position, Speed, Input Voltage, Current, Temperature |
