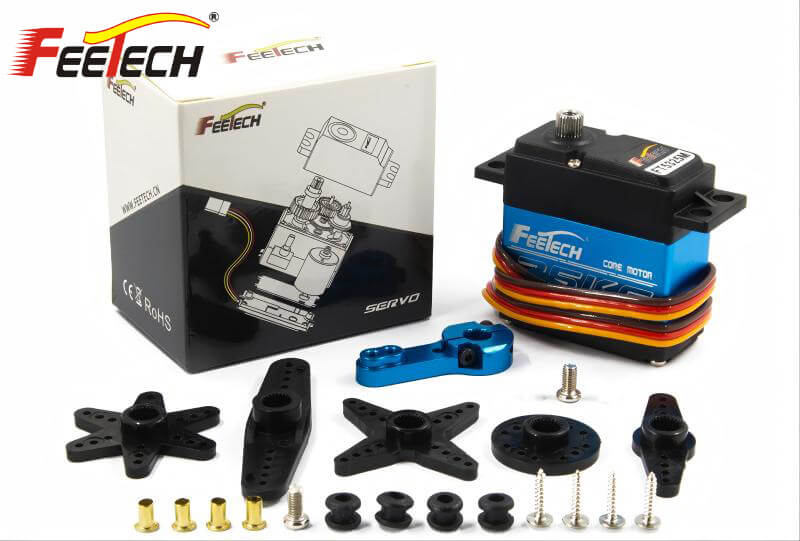

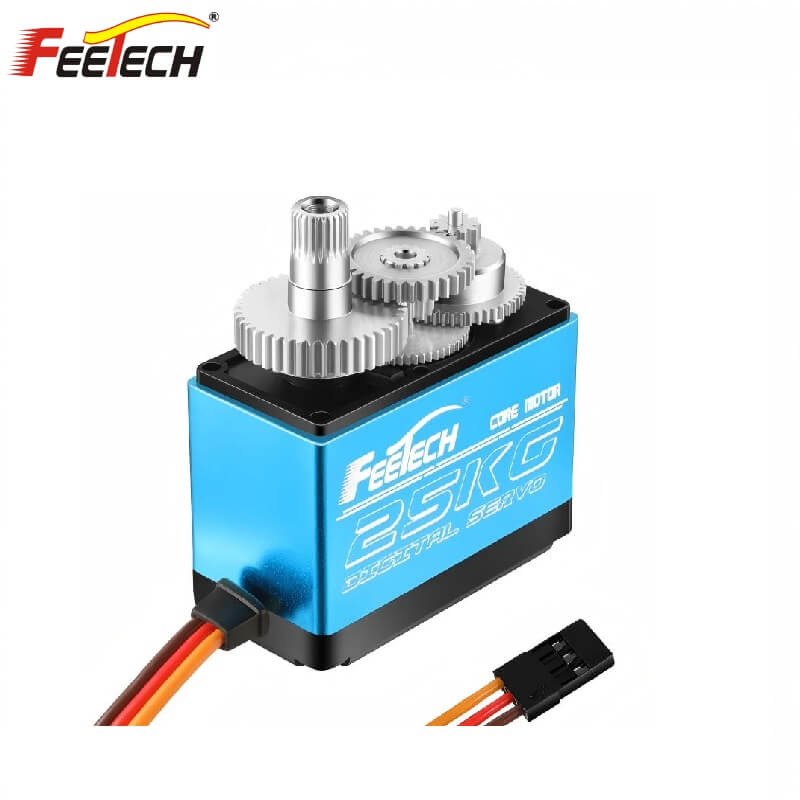

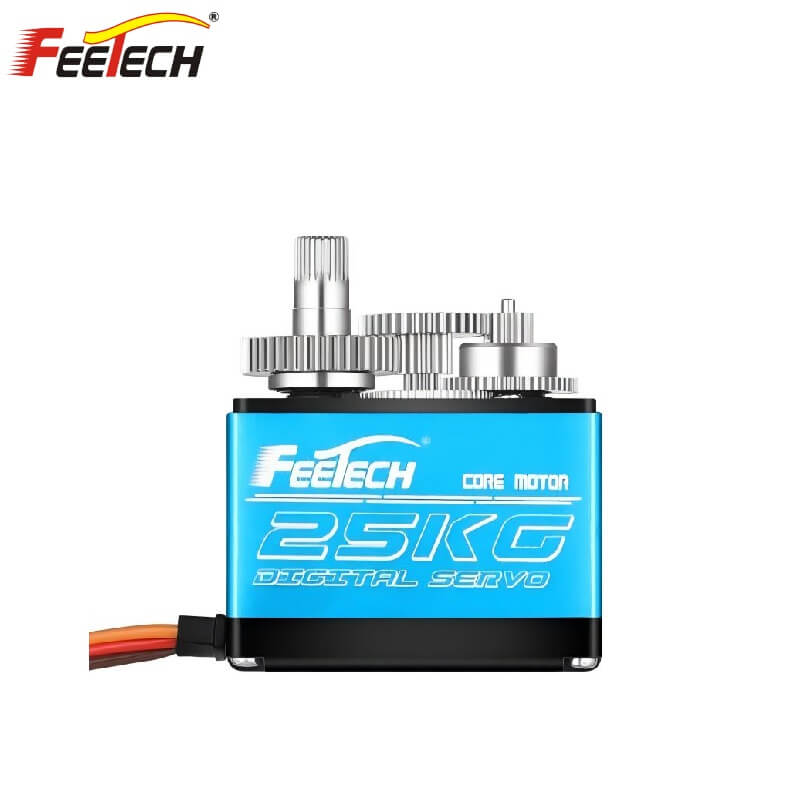

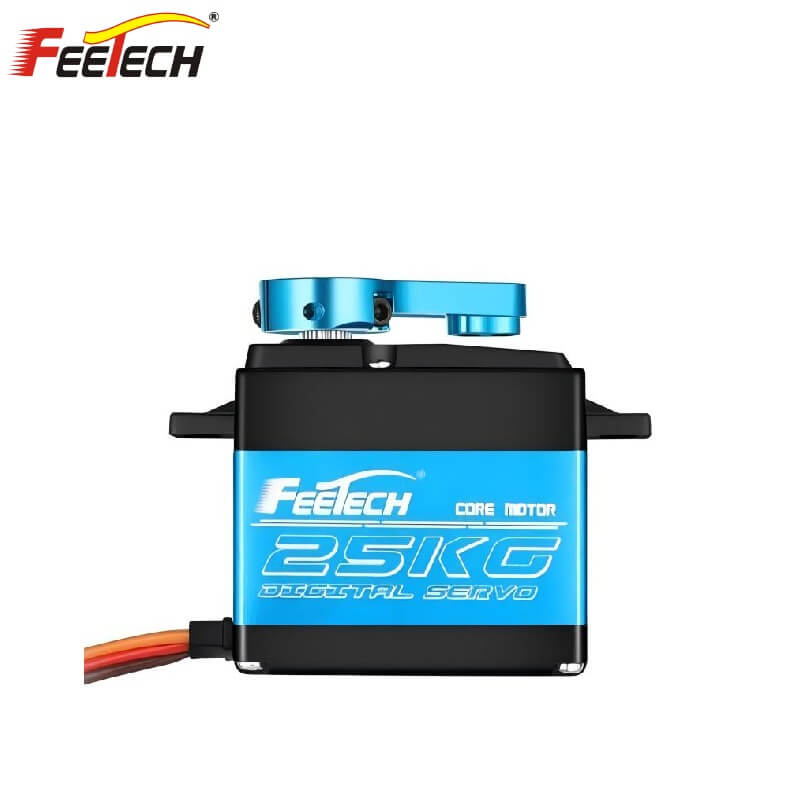

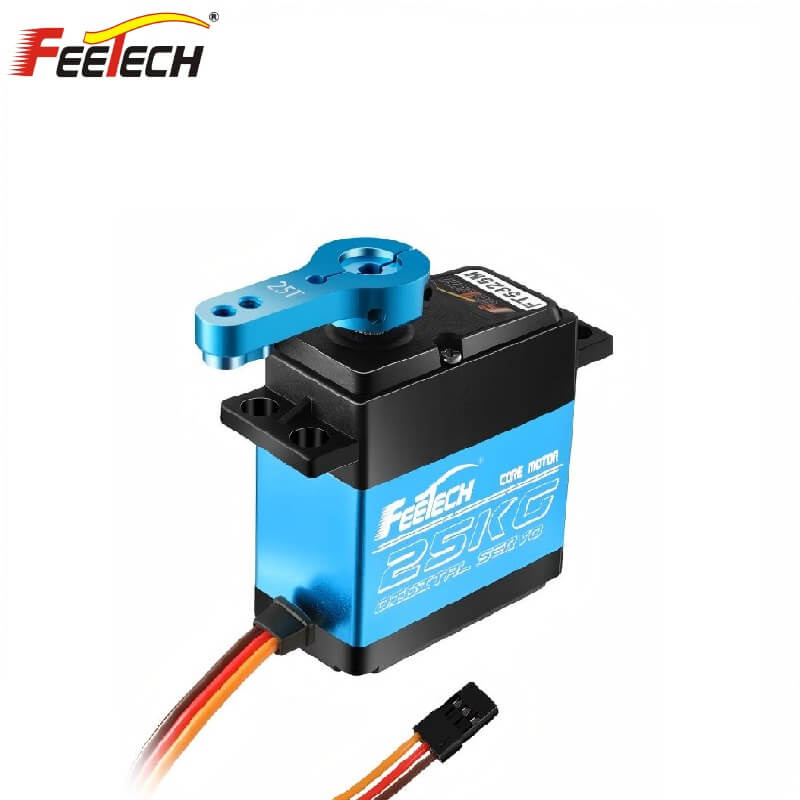

FEETECH FT5330M Servo Motor
Regular price
$19.00
Unit price
/
Unavailable
FEETECH FT5330M Servo Motor - FT-5330-C001 (7.4V35KG) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT5330M Servo Motor
Regular price
$19.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | |
|---|---|
| Model | FT5330M |
| Product Name |
7.4V 35kg.cm digital 180 degree aluminum middle shell steel gear iron core servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -20℃～60℃ |
| Dimensions |
A：55mm B：20mm C:43mm |
| Weight | 67土1g |
| Gear type |
Steel Gear |
| Limit angle |
NO limit |
| Bearing |
Ball bearings |
| Horn gear spline | 25T/5.9mm |
| Horn type |
Plastic,POM |
| Case | PA+Aluminium |
| Connector wire | 30CM |
| Motor |
Core Motor |
| Operating Voltage Range | 6V-7.4V |
| Idle current (at stopped) | 6MA@7.4V |
| No load speed | 0.192sec/60°@7.4V |
| Runnig current(at no load) | 180mA@7.4V |
| Peak stall torque | 35.5kg.cm@7.4V |
| Rated torque | 11.8kg.cm@7.4V |
| Stall current |
3.9A@7.4V |
| Command signal |
Pulse width modification |
| Amplifier type | Digital compara tor |
| Pulse width range |
500~2500usec |
| Stop position |
1500 sec |
| Running degree |
180° Continuous Rotation |
| Dead band width | ≤4 μsec |
| Rotating direction | Counterclockwi se (1500→2000μ sec) |
