Feetech | SKU:

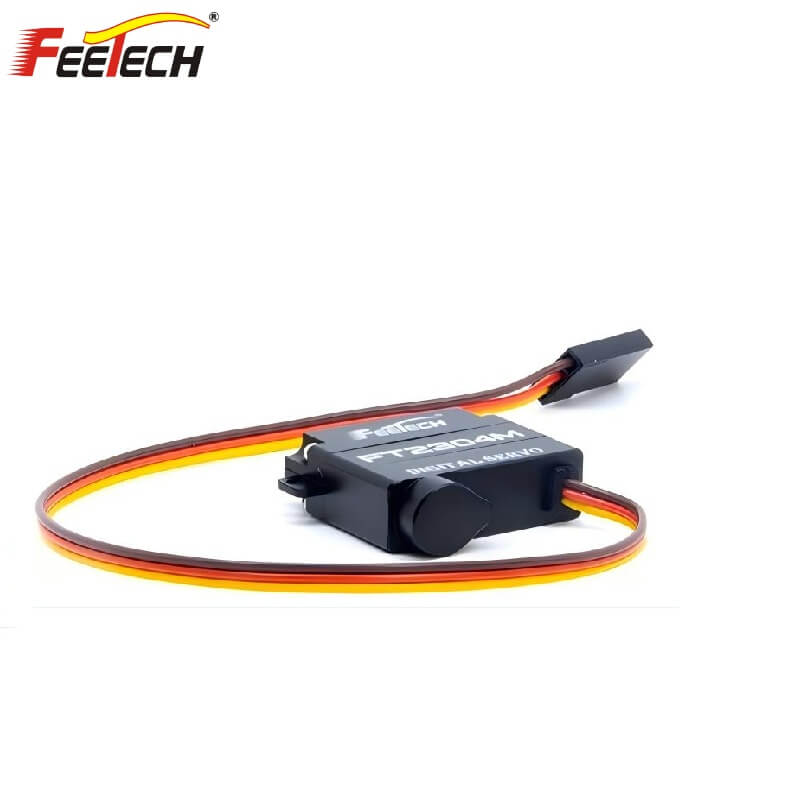

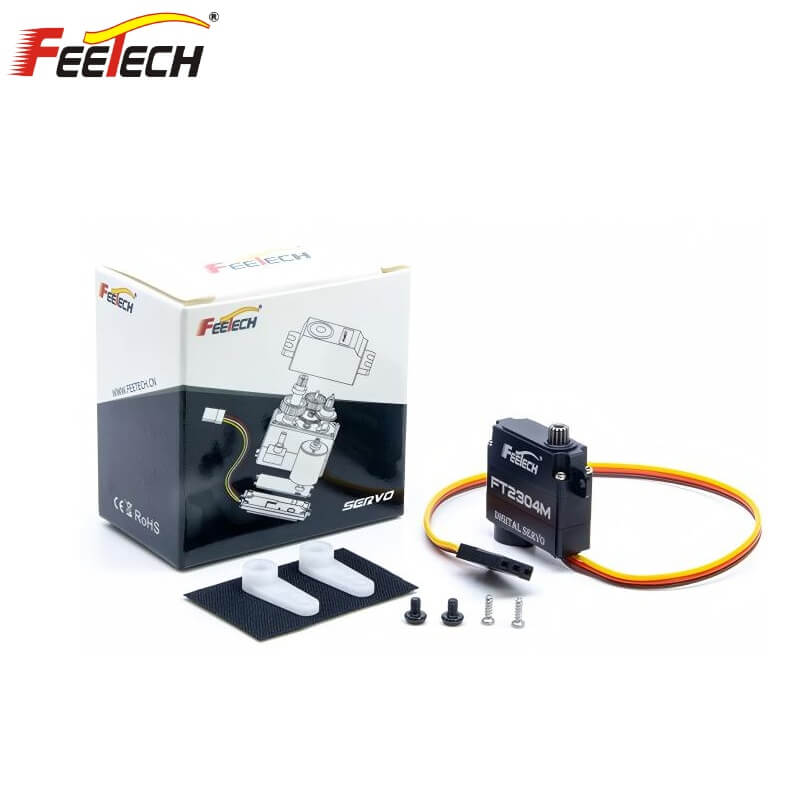

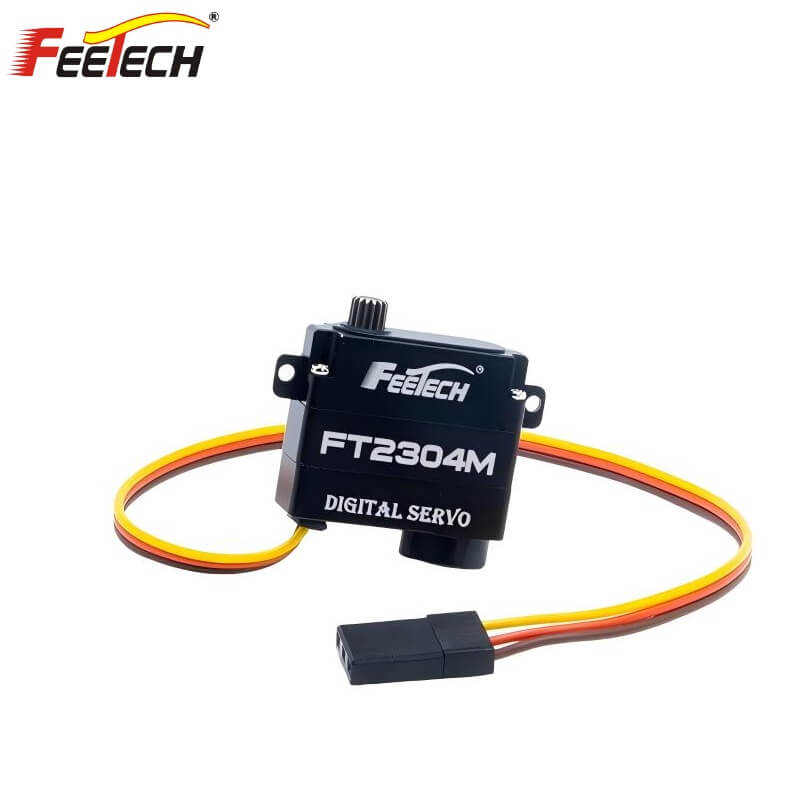

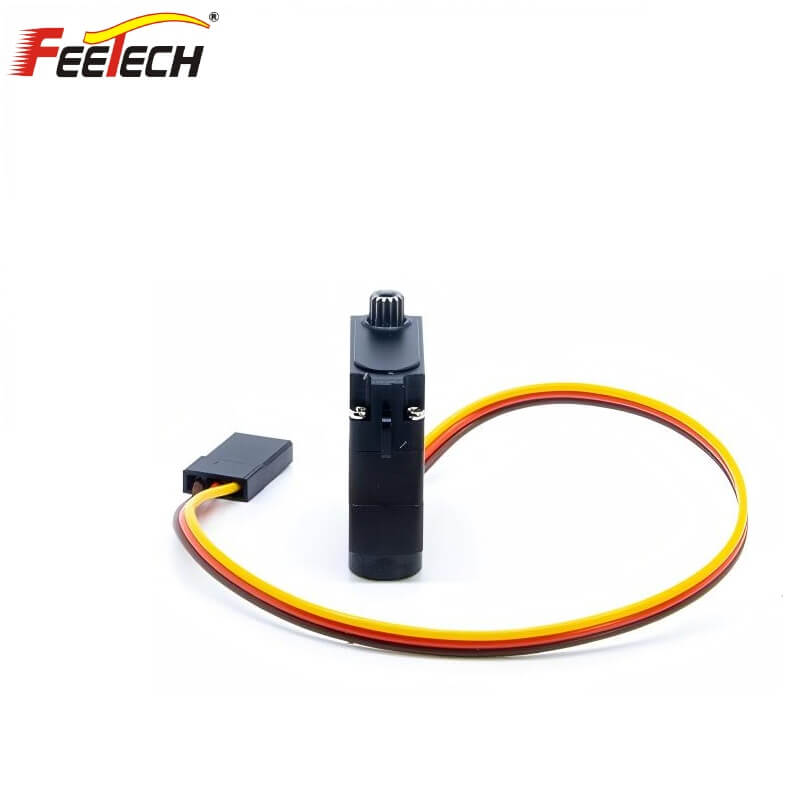

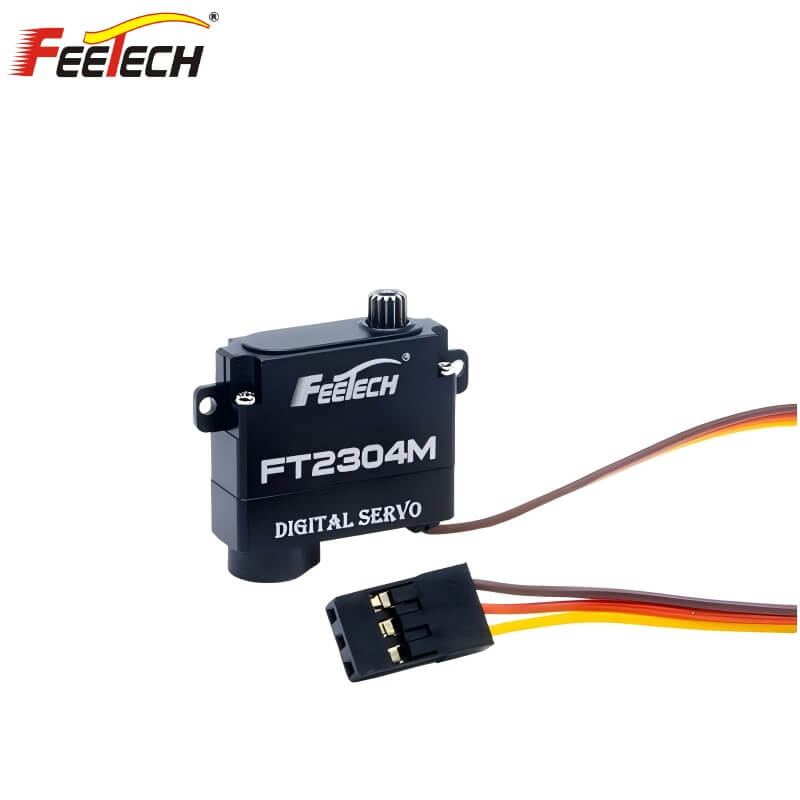

FEETECH FT2304M Servo Motor
Regular price
$40.00
Unit price
/
Unavailable
FEETECH FT2304M Servo Motor - FT2304M-C001 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT2304M Servo Motor
Regular price
$40.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|---|---|
| Model | FT2304M |
| Product Name | 6V 3.0kg.cm Digital 120 Degree Aluminum Case Steel Gear Coreless Servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -20℃～60℃ |
| Size | A：23.5mm B：8mm C: 23.4mm |
| Weight | 11±1g |
| Gear type | Metal Gear |
| Limit angle |
NO limit |
| Bearing |
Ball bearings |
| Horn gear spline | 15T/3.9mm |
| Gear Ratio | 1/293 |
| Case | PA+Aluminum |
| Connector wire | 18CM |
| Motor |
Coreless Motor |
| Operating Voltage Range | 3.5V-8.4V |
| Idle current(at stopped) | 10MA@6V |
| No load speed | 0.08sec/60°@6V |
| Runnig current(at no load) | 60mA@6V |
| Peak stall torque | 3.2kg.cm@6V |
| Rated torque | 1.0kg.cm@6V |
| Stall current | 1.2A@6V |
| Command signal | Pulse width modification |
| Amplifier type | Digital comparator |
| Pulse width range | 800~2200 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 120°(at 800→2200μsec) |
| Dead band width | ≤4 μ sec |
| Rotating direction | Counterclockwise (1500→2000 μ sec) |
