Feetech | SKU:

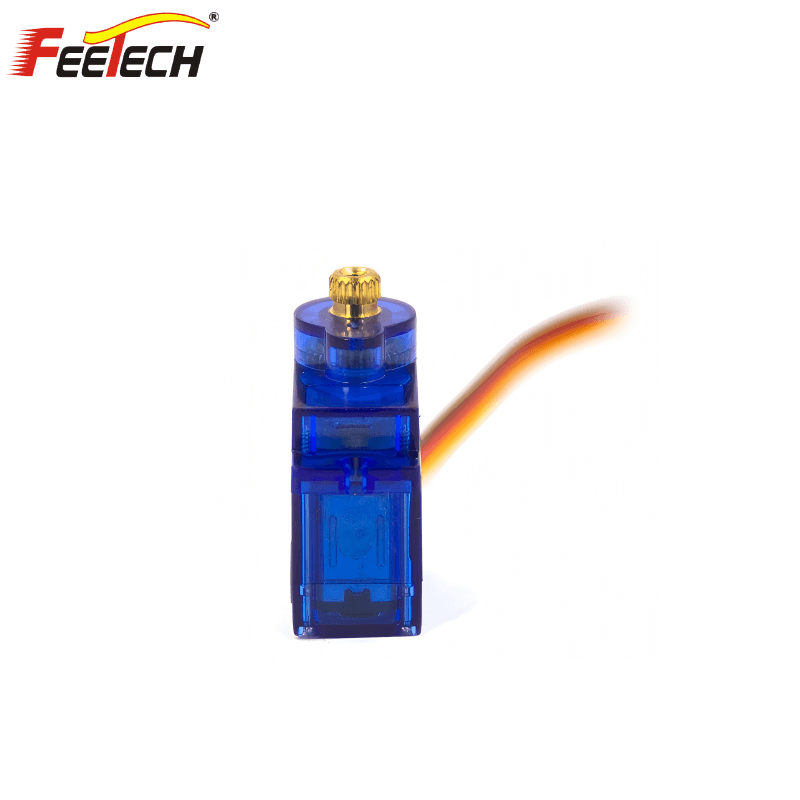

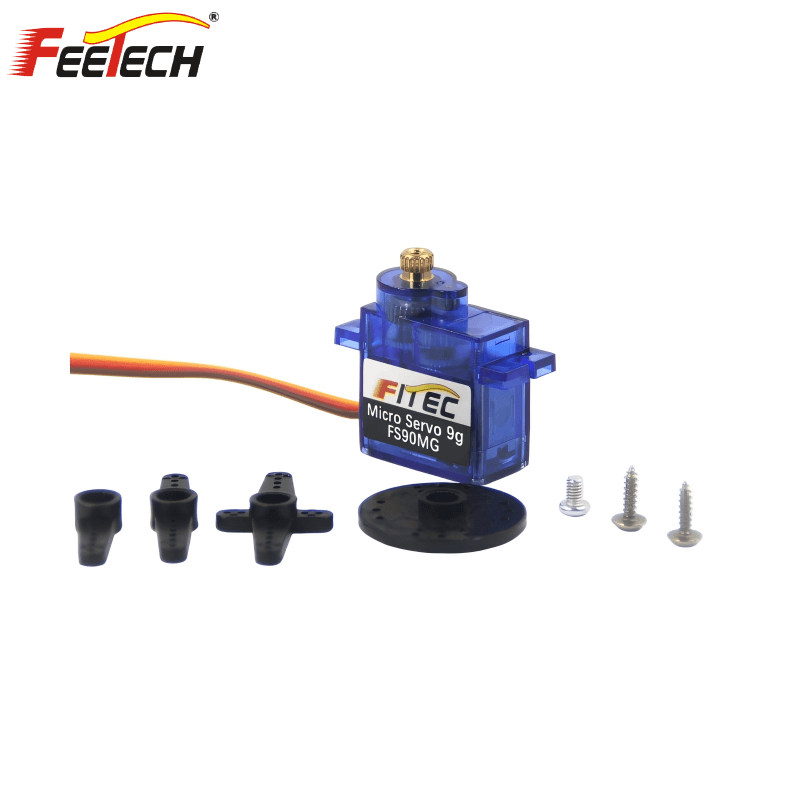

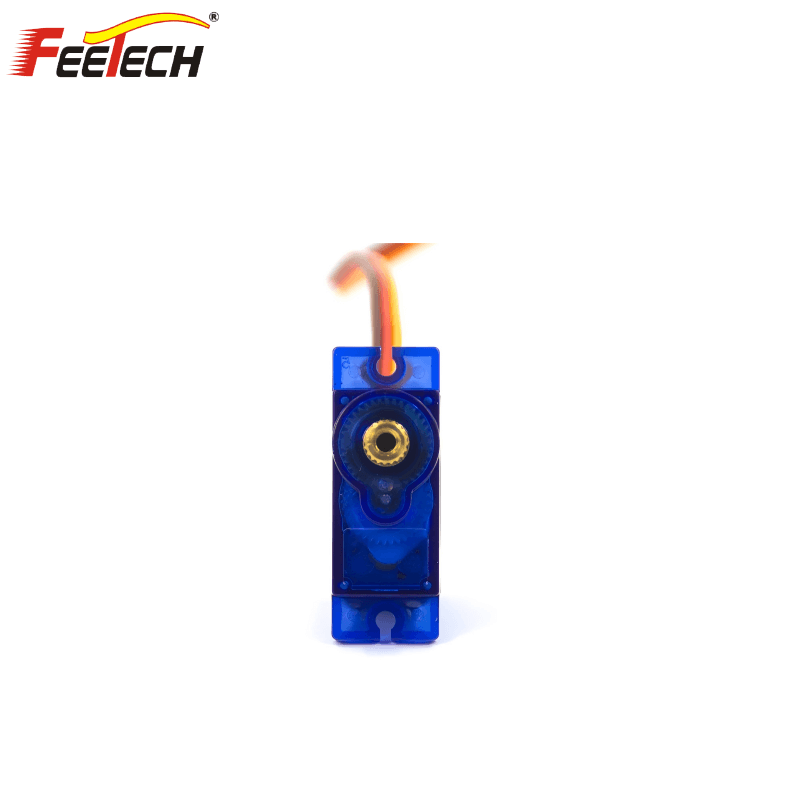

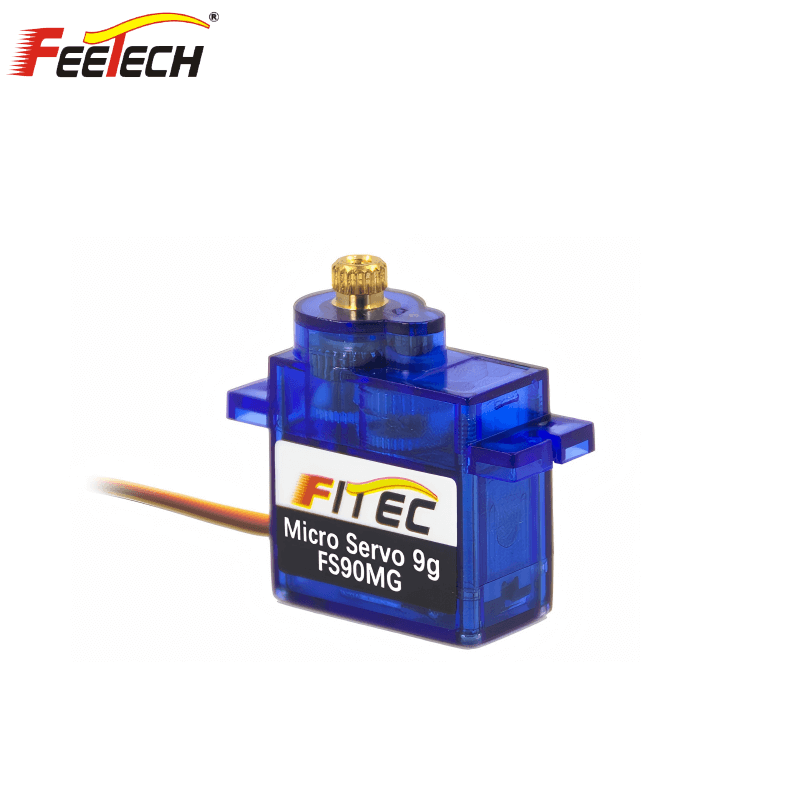

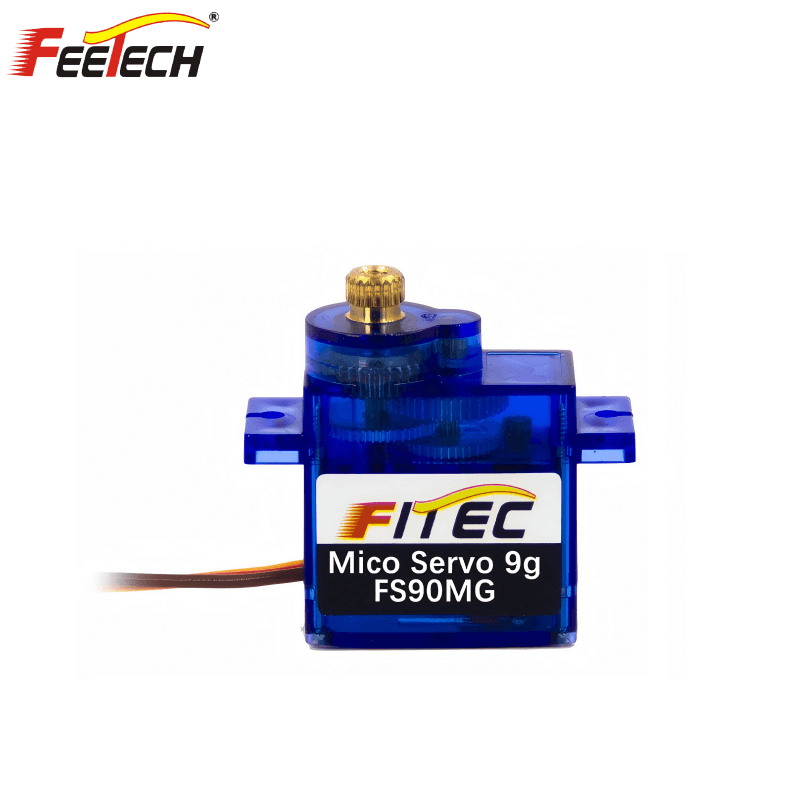

FEETECH FS90MG Servo Motor
Regular price
$20.00
Unit price
/
Unavailable
FEETECH FS90MG Servo Motor - FS90MG is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FS90MG Servo Motor
Regular price
$20.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|
|---|---|---|
| Model | FS90MG | |
| Product Name | 6V 2.2kg.cm Digital Servo | |
| Storage Temperature Range |
-30℃～80℃ |
|
| Operating Temperature Range | -1℃～70℃ | |
| Size | A：22.5mm B：12.1mm C：26.7mm | |
| Weight | 12.7± 1g | |
| Gear type | Copper | |
| Limit angle |
180degree |
|
| Bearing |
NO Ball bearings |
|
| Horn gear spline | 21T | |
| Horn type | Plastic,POM | |
| Case | ABS | |
| Connector wire | 250mm | |
| Motor |
Metal brush motor |
|
| Operating Voltage Range | 4.8-6V | |
| Idle current(at stopped) | 5mA-6mA | |
| No load speed | 0.07sec/60degr@6V | |
| Runnig current(at no load) | 220 mA @6V | |
| Peak stall torque | 2.2kg.cm@6V | |
| Rated torque | 0.7kg.cm@6V | |
| Stall current | 800mA@6V | |
| Running degree | 180°(when 500～2500 μsec) | |
| Rotating direction |
CW(when 1500～900 µsec) CCW(when 1500～2100 µsec) |
