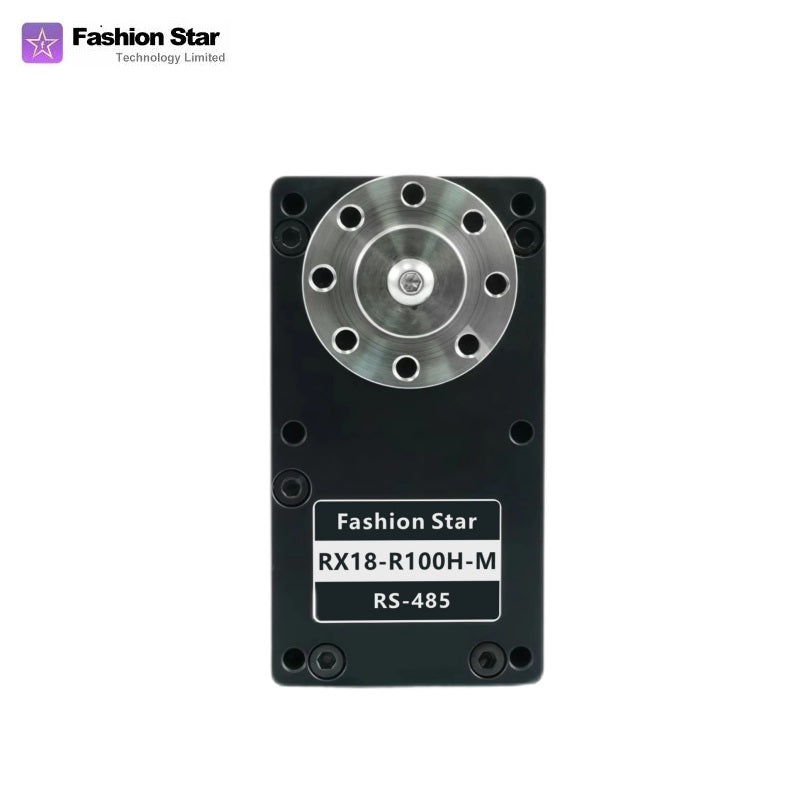

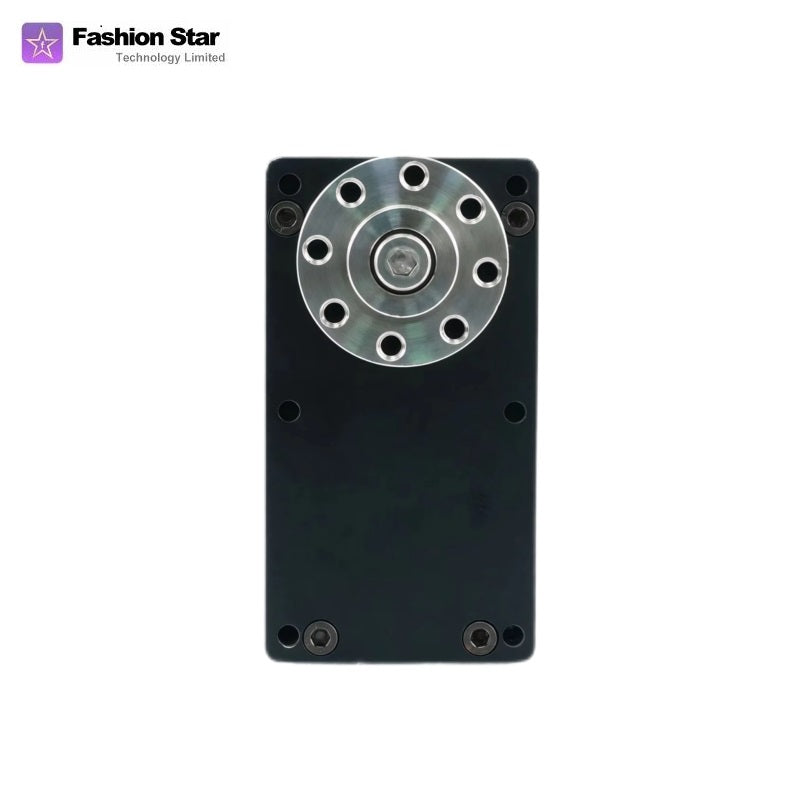

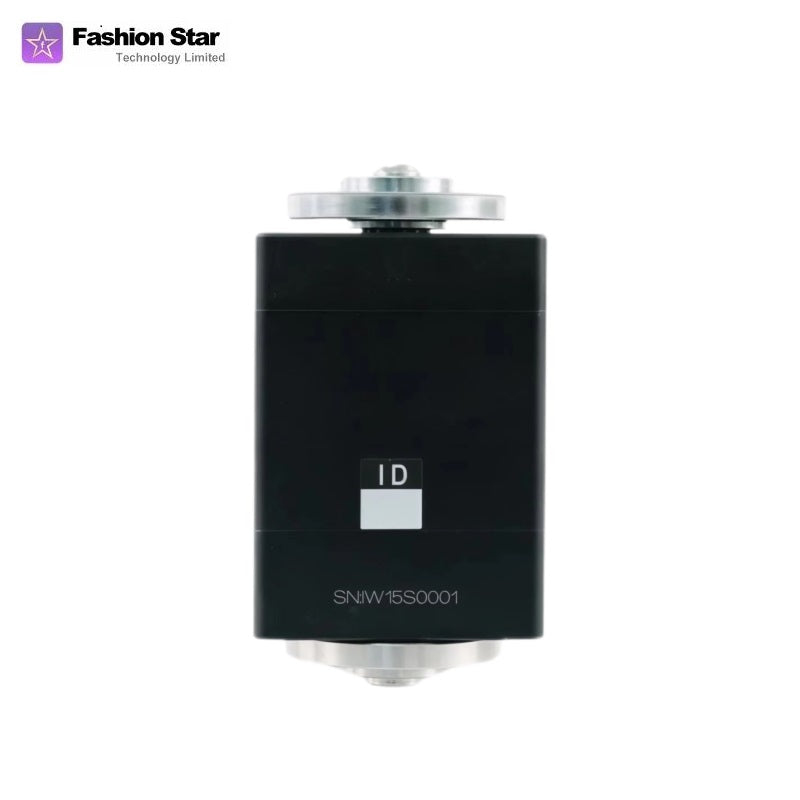

Fashion Star RX18-R100H-M RS485 Bus Servo

$300.00

Version

HX18-R100H-M (Single Shaft) 12V HX18-R100W-M (Single Shaft) 24V

Accessory Kit

NOT Include UC-05 RS485/USB Debugging Adapter

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Working Voltage	9.0-12.6V
Motor Type	Brushless Motor
Stall Torque	100kg-cm (9.80N·m)
No-load Speed	42.0rpm (0.238sec@60°)
Working Mode	Single-turn Angle Mode Multi-turn Angle Mode Wheel Mode Damping Mode
Protection Mode	Voltage Protection Stall Protection Power Protection Temperature Protection
Working Temperature	-10 ~ 60°C
Stall Current	13A
No-load Current	300mA
Standby Current	50mA
Position Sensor	12bit Non-contact Encoder (Magnetic Encoder)
Effective Angle	360°
Resolution	4096 [steps/360°]
Processor	32bit MCU
Feedback Signal	Voltage \| Current \| Temperature \| Angle \| Power
Communication Protocol	RS-485
Baud Rate	9600~1Mbps
ID Range	0~254
Gear Material	Full Metal Stainless Steel Combination
Gear Ratio	392:1
Output Gear	Stainless Steel / Ø6mm / 25T
Shell Material	Full Aluminum Alloy Body

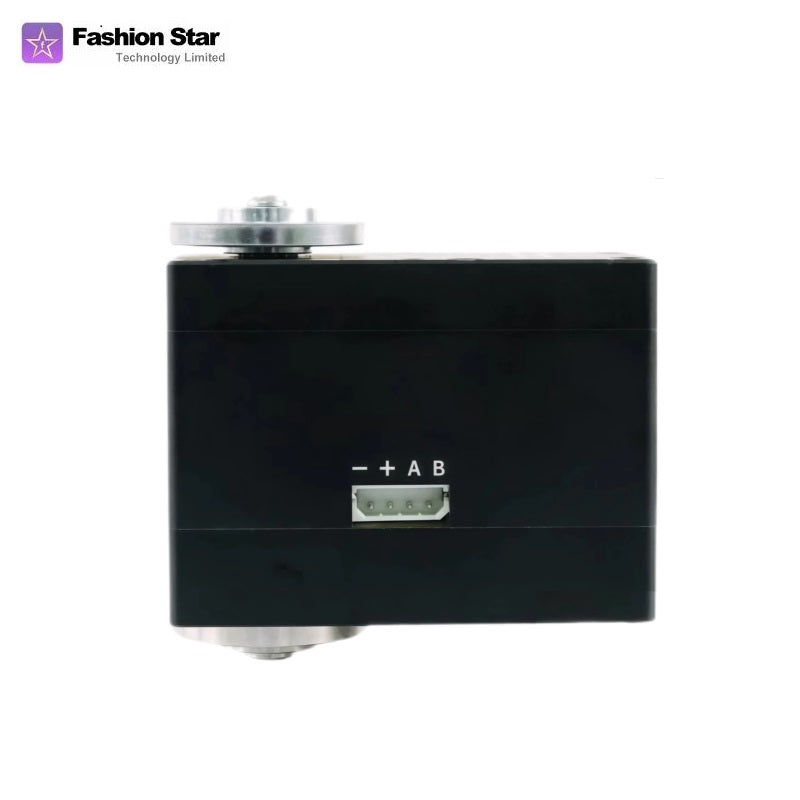

Interface Type	PH2.0-4pin
Appearance	Dual Shaft
Dimensions	63×34×47mm
Weight	242g
