Fashion Star

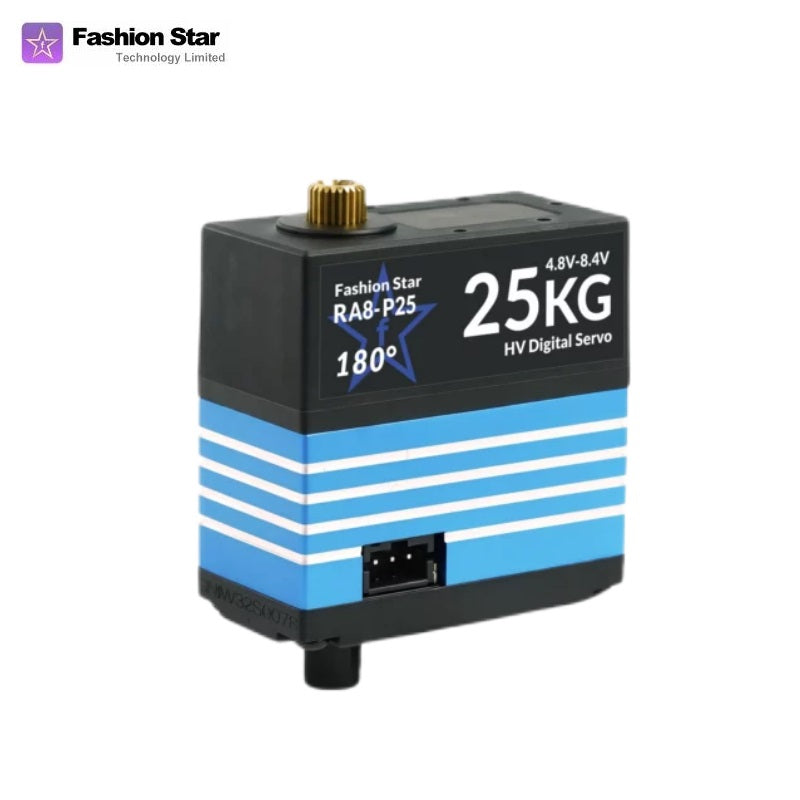

Fashion Star RA8-P25 Digital Servo

$20.00

Version

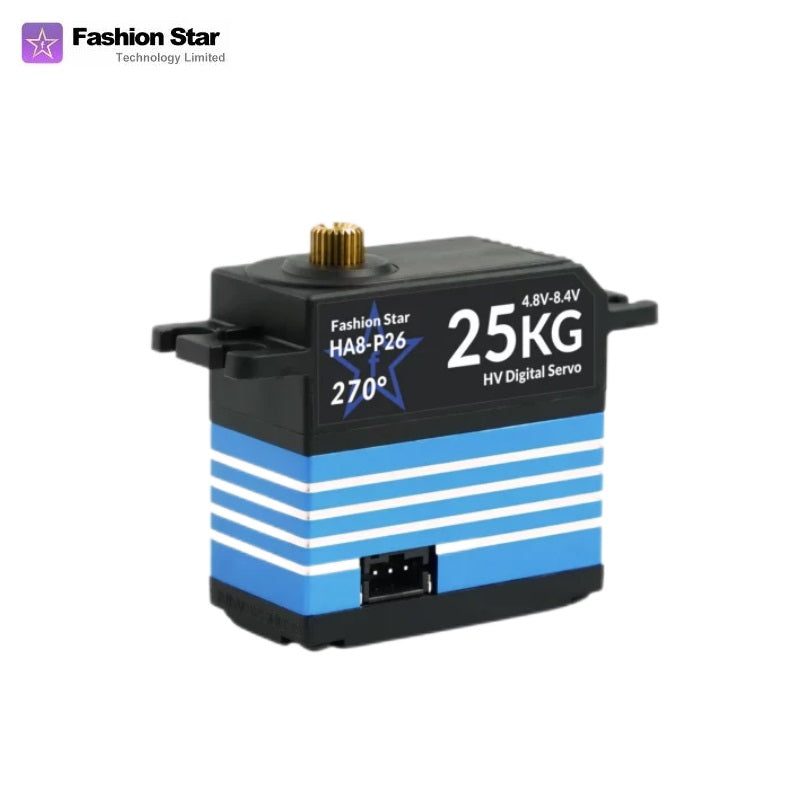

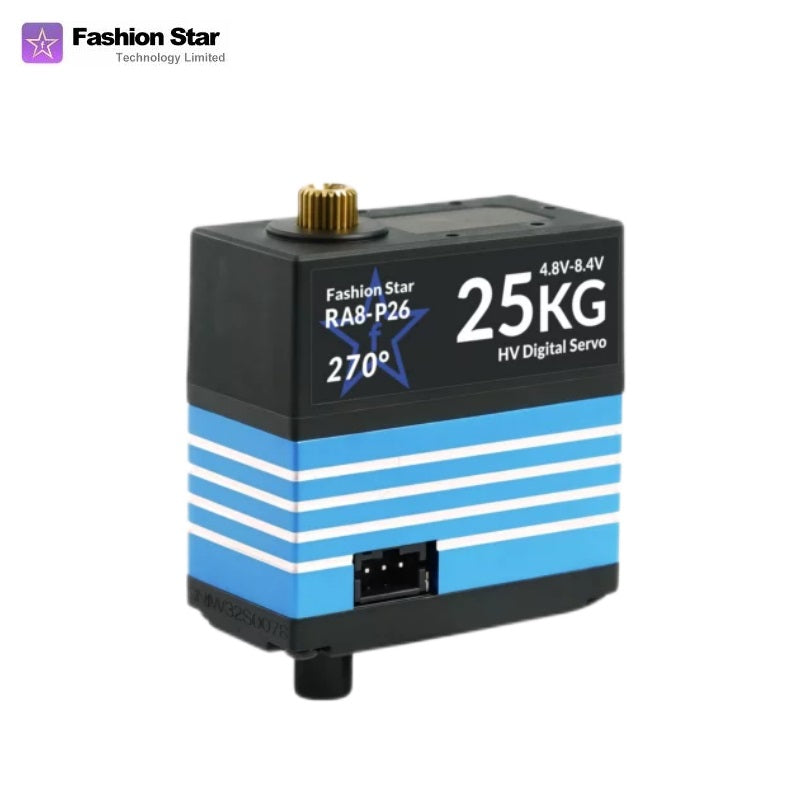

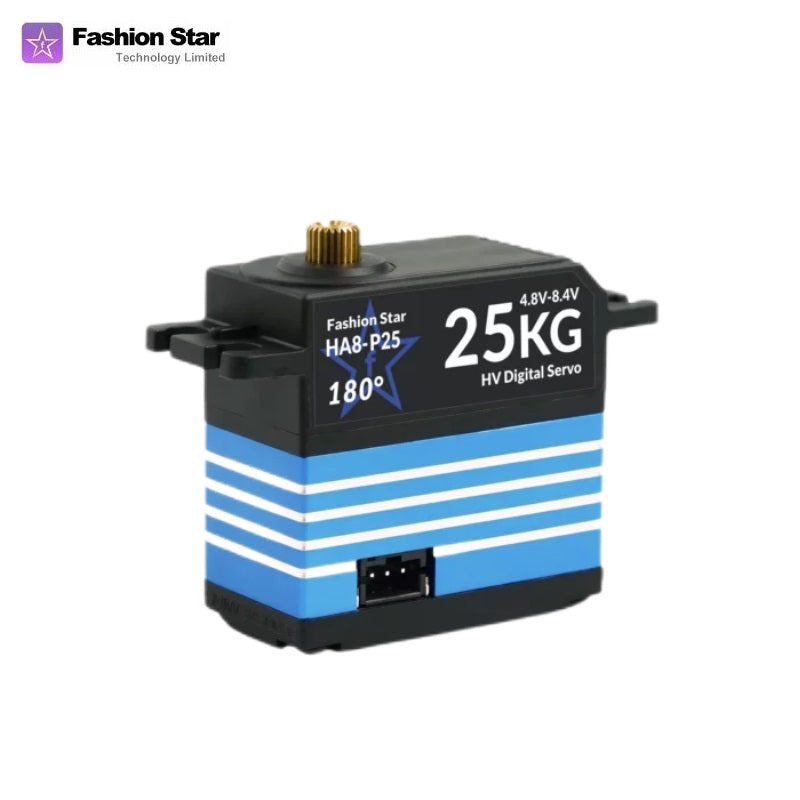

HA8-P25 (180° Single Shaft) RA8-P25 (180° Dual Shaft) HA8-P26 (270° Single Shaft) RA8-P26 (270° Dual Shaft)

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	HA8-P25 / RA8-P25	HA8-P26 / RA8-P26
Operating Voltage	4.8-8.4V	4.8-8.4V
Motor Type	Iron Core	Iron Core
Position Sensor	Potentiometer	Potentiometer
Effective Angle	180°	270°
Stall Torque	25Kg-cm@7.4V	25Kg-cm@7.4V
No-load Speed	0.150sec/60°@7.4V	0.150sec/60°@7.4V
Stall Current	3A	3A
No-load Current	200mA	200mA
Standby Current	20mA	20mA
Drive Method	PWM	PWM
Pulse Width Range	500-2500μs	500-2500μs
Dead Band	3μs	3μs
Frequency Range	50-333Hz	50-333Hz
Gear Ratio	273:1	273:1
Output Gear Spline	Copper/Φ6mm/25T	Copper/Φ6mm/25T
Appearance	Single/Dual Shaft	Single/Dual Shaft
Interface Type	PH2.0×2	PH2.0×2
Case Material	Aluminum Middle / Plastic Top&Bottom	Aluminum Middle / Plastic Top&Bottom
Dimensions	40×40×20mm	40×40×20mm
Weight	64g / 63g	64g / 63g
