Fashion Star

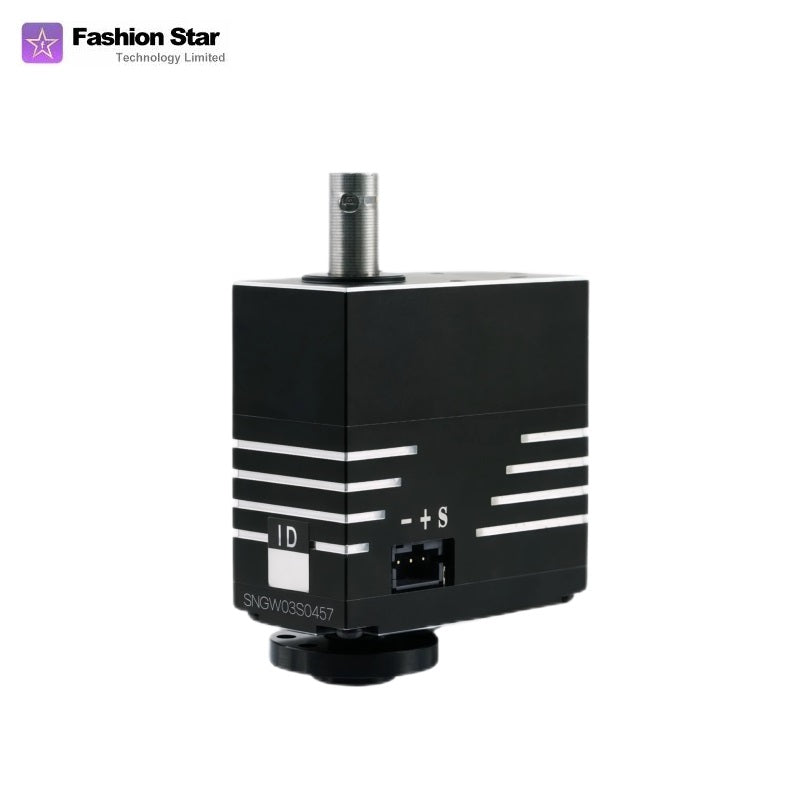

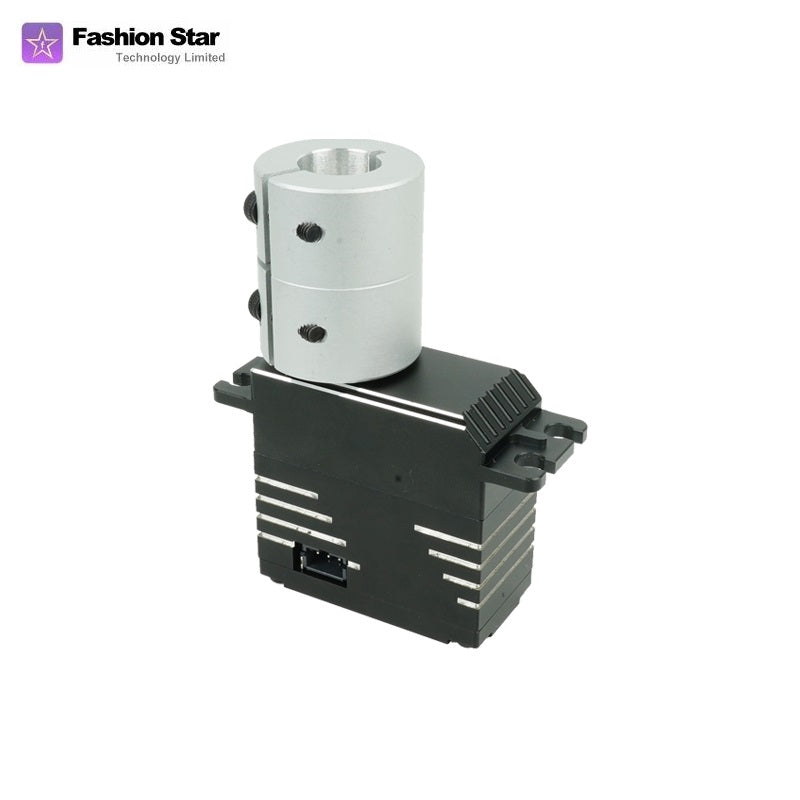

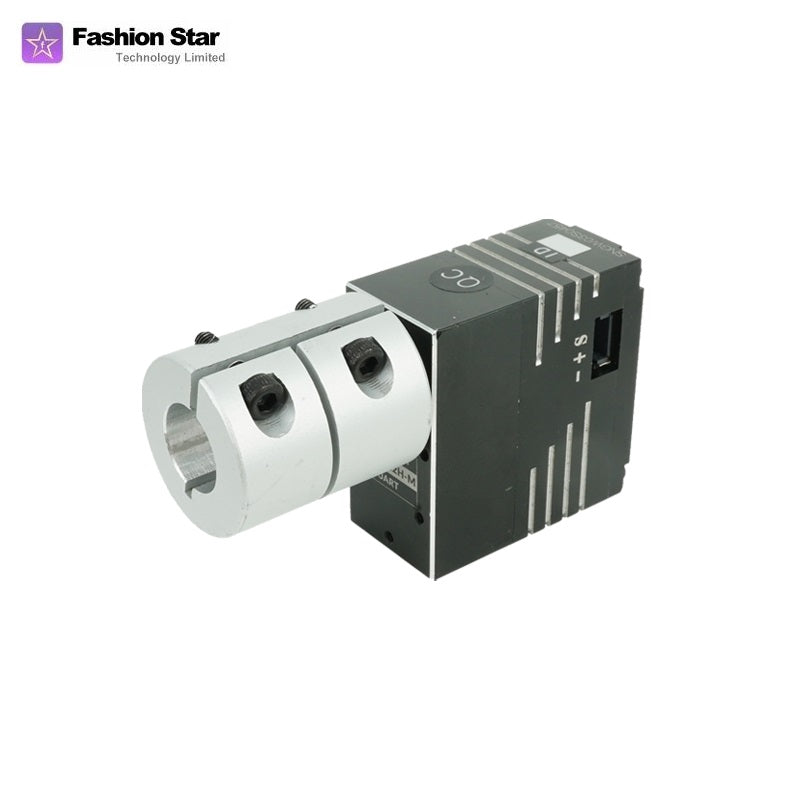

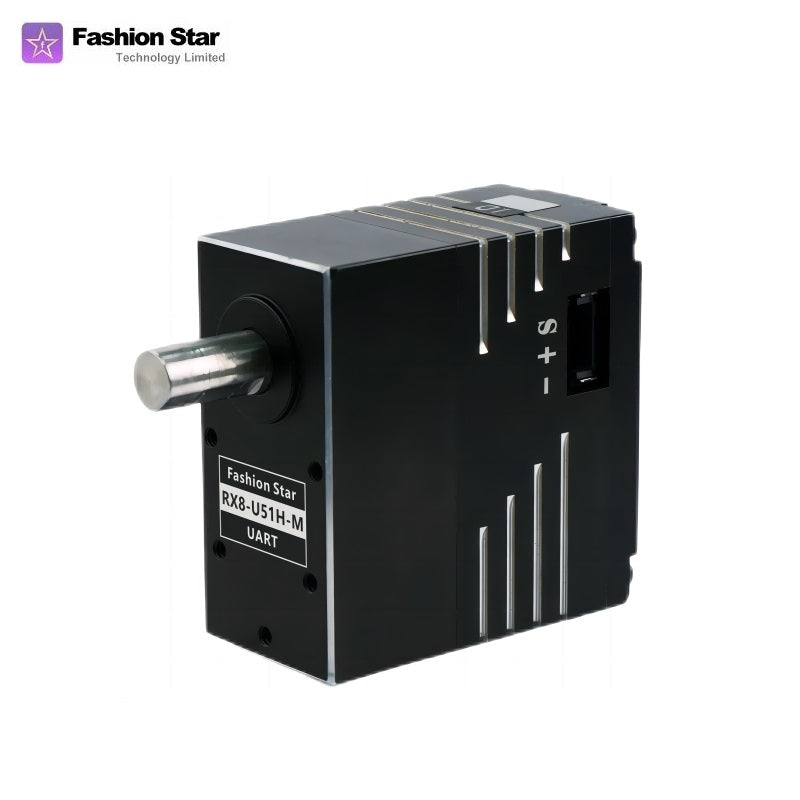

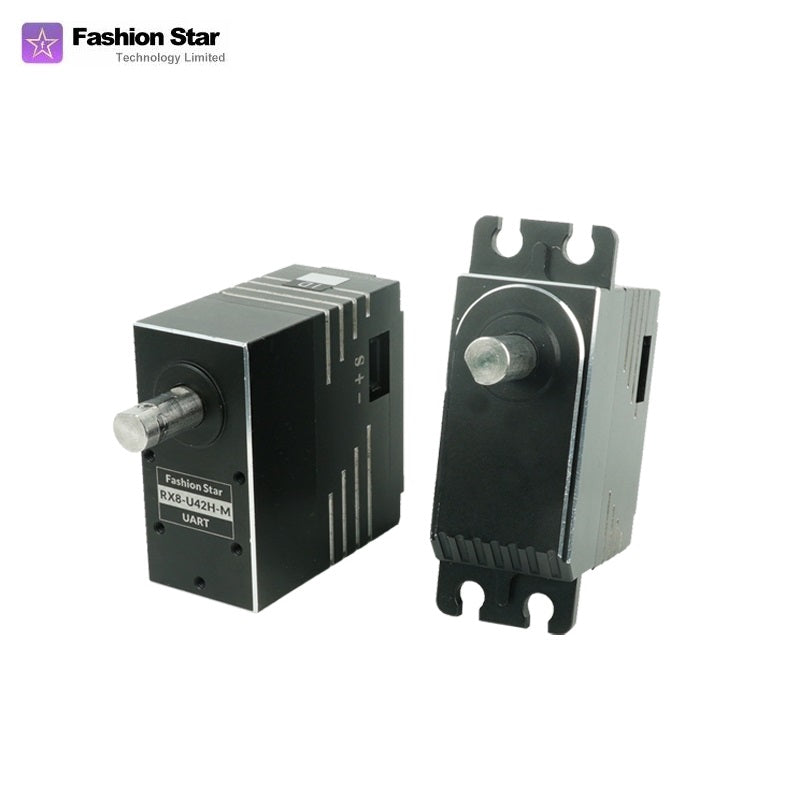

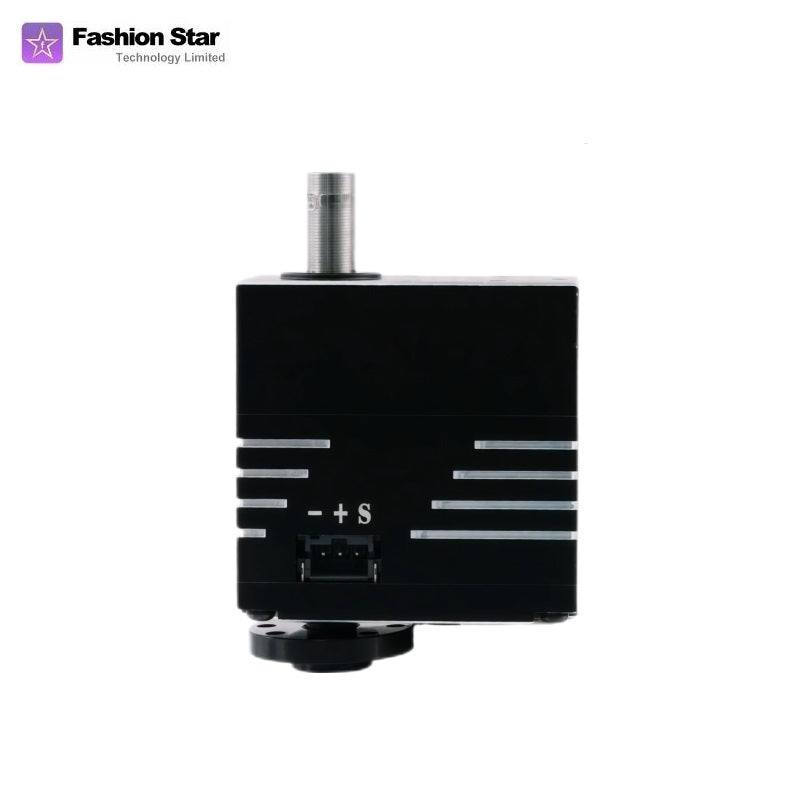

Fashion Star HX8-U51H-M UART Bus Servo

$195.00
Version
Accessory Kit

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information




Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Voltage 9.0-12.6V
Motor Type Brushless Motor
Stall Torque 50kg-cm (4.90N·m)
No-load Speed 70.0rpm (0.151sec@60°)
Working Mode Single-turn Angle Mode
Multi-turn Angle Mode
Wheel Mode
Damping Mode
Protection Mode Voltage Protection
Stall Protection
Power Protection
Temperature Protection
Operating Temperature -10 ~ 60°C
Stall Current 5.5A
No-load Current 300mA
Standby Current 40mA
Position Sensor 12bit Non-contact Encoder (Magnetic)
Effective Angle 360°
Resolution 4096 [steps/360°]
Processor 32bit MCU
Feedback Signal Voltage | Current | Temperature | Angle | Power
Communication Protocol UART/TTL
Baud Rate 9600~1Mbps
ID Range 0~254
Gear Material Full Metal Stainless Steel Combination
Gear Ratio 387:1
Output Shaft Stainless Steel / ø6mm / D-Type
Case Material Full Aluminum Alloy Body
Connector Type PH2.0
Appearance Single Shaft | Double Shaft
Dimensions 40×40×20mm
Weight 83g

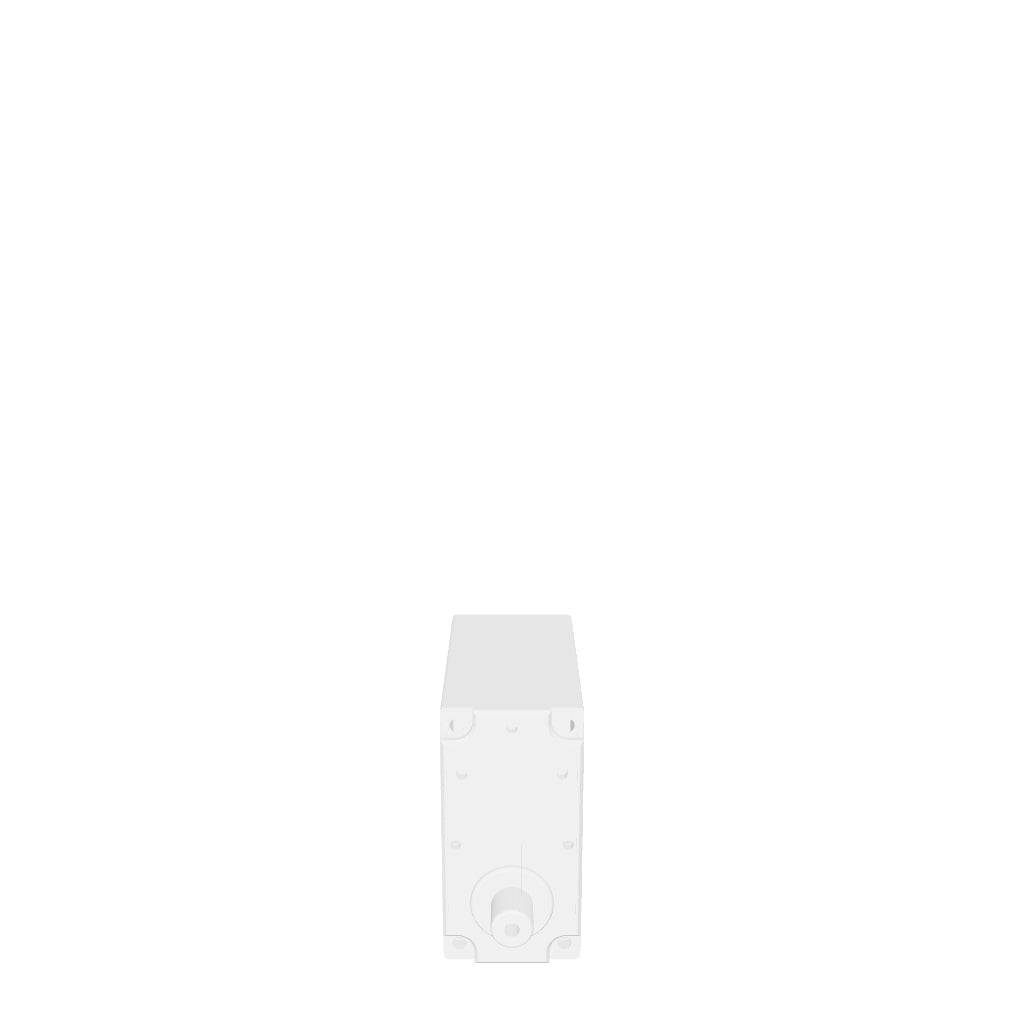

Fashion Star 50KG(D)-Dual Shaft Servo-3D Model.stp

Fashion Star 50KG(D)-Dual Shaft Servo-Product_instalation_drawing.pdf

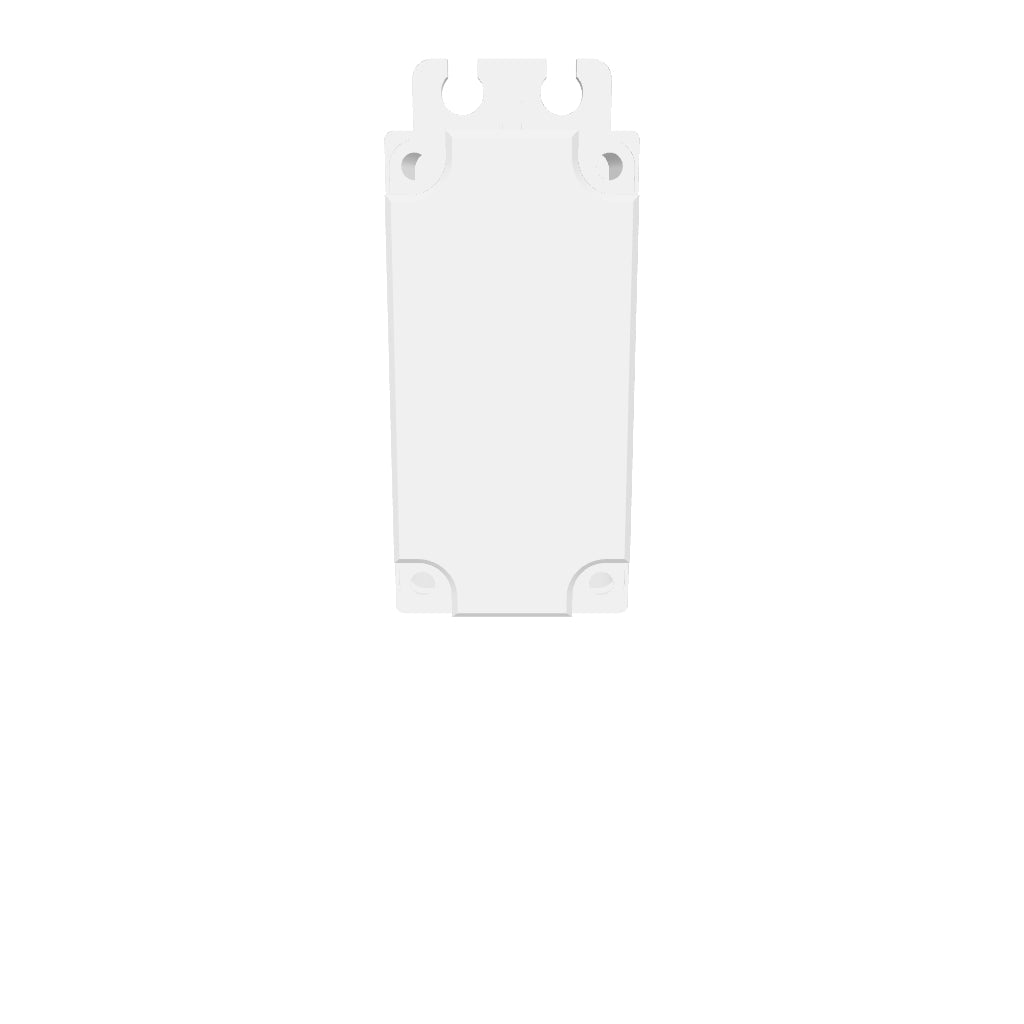

Fashion Star 50KG(D)-Single Shaft Servo-3D Model.stp

Fashion Star 50KG(D)-Single Shaft Servo-Product_instalation_drawing.pdf
