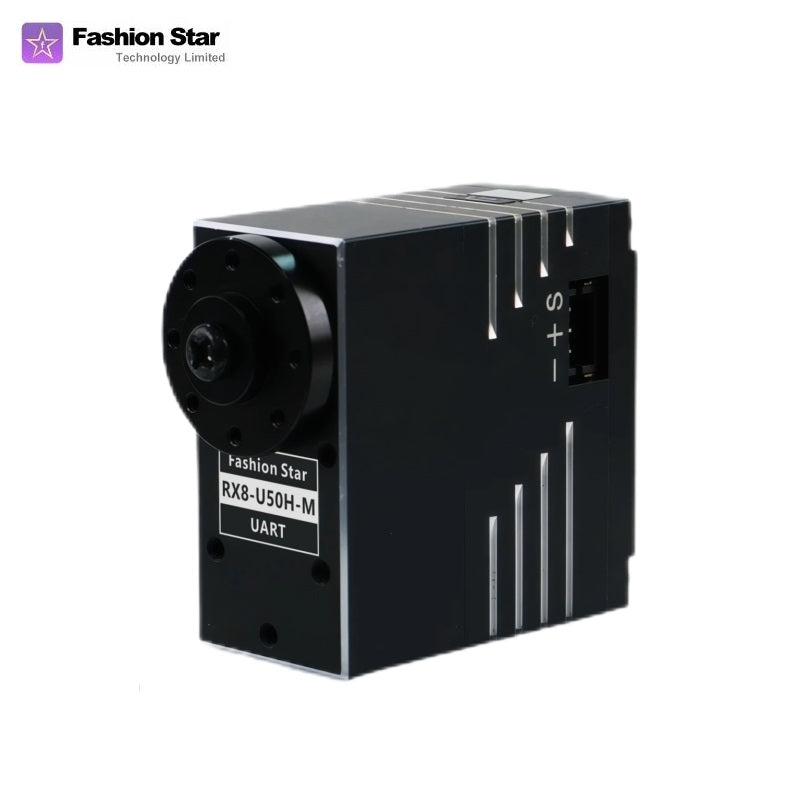

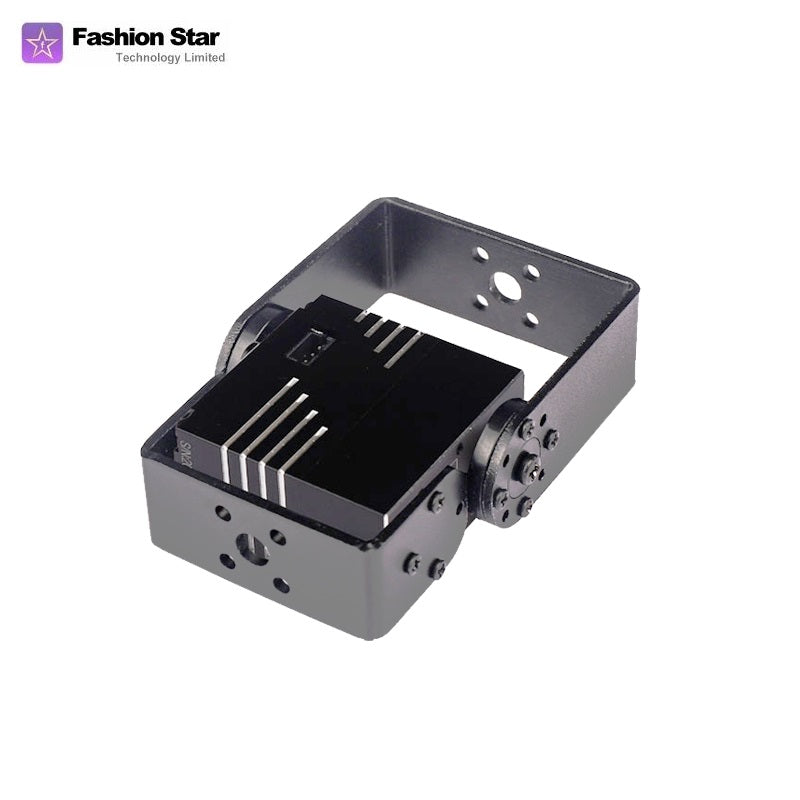

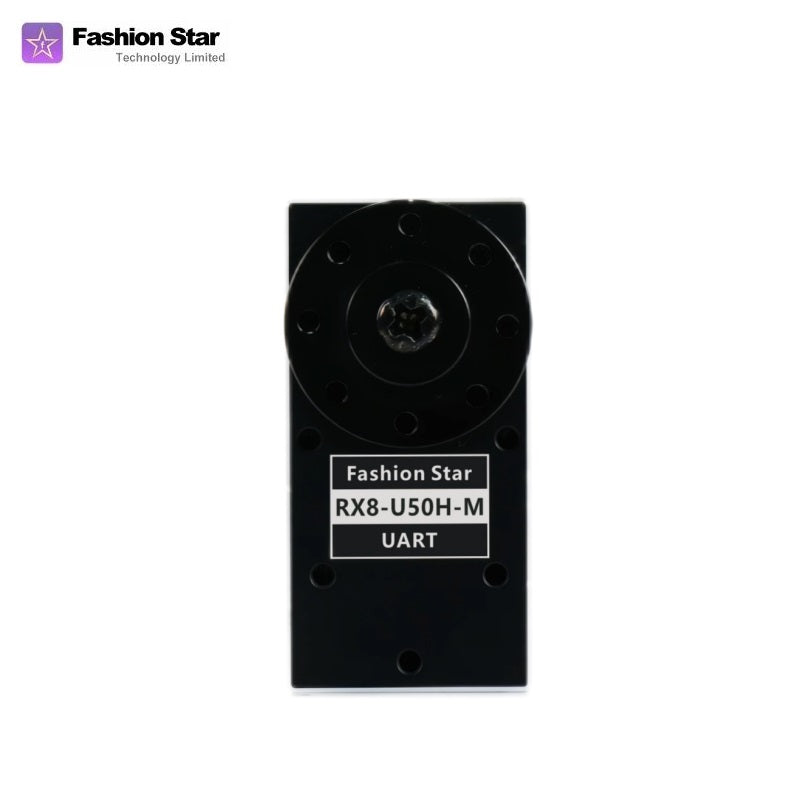

Fashion Star HX8-U50H-M UART Bus Servo

Application Scenarios

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Operating Voltage	9.0-12.6V
Motor Type	Brushless Motor
Stall Torque	50kg-cm (4.90N·m)
No-load Speed	70.0rpm (0.151sec@60°)
Operating Modes	Single Turn Angle Mode Multi-turn Angle Mode Wheel Mode Damping Mode
Protection Modes	Voltage Protection Stall Protection Power Protection Temperature Protection
Operating Temperature	-10 ~ 60°C
Stall Current	5.5A
No-load Current	300mA
Standby Current	40mA
Position Sensor	12bit Contactless Encoder (Magnetic Encoder)
Effective Angle	360°
Resolution	4096 [steps/360°]
Processor	32bit MCU
Feedback Signal	Voltage \| Current \| Temperature \| Angle \| Power
Communication Protocol	UART/TTL
Baud Rate	9600~1Mbps
ID Range	0~254

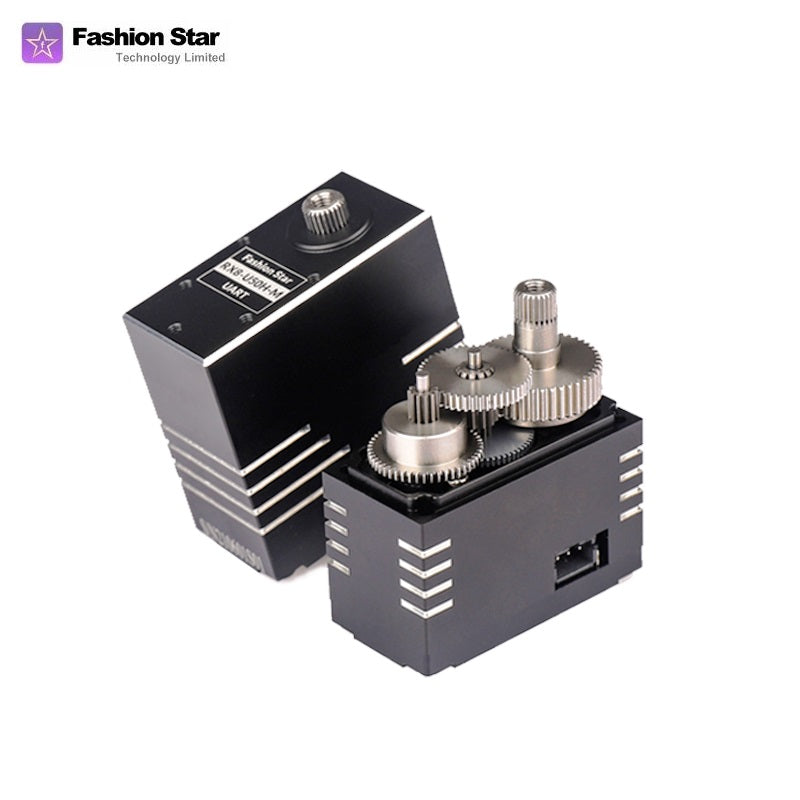

Gear Material	Full Metal Stainless Steel Combination
Gear Ratio	387:1
Output Gear	Stainless Steel / Ø6mm / 25T
Case Material	Full Aluminum Alloy Body
Connector Type	PH2.0

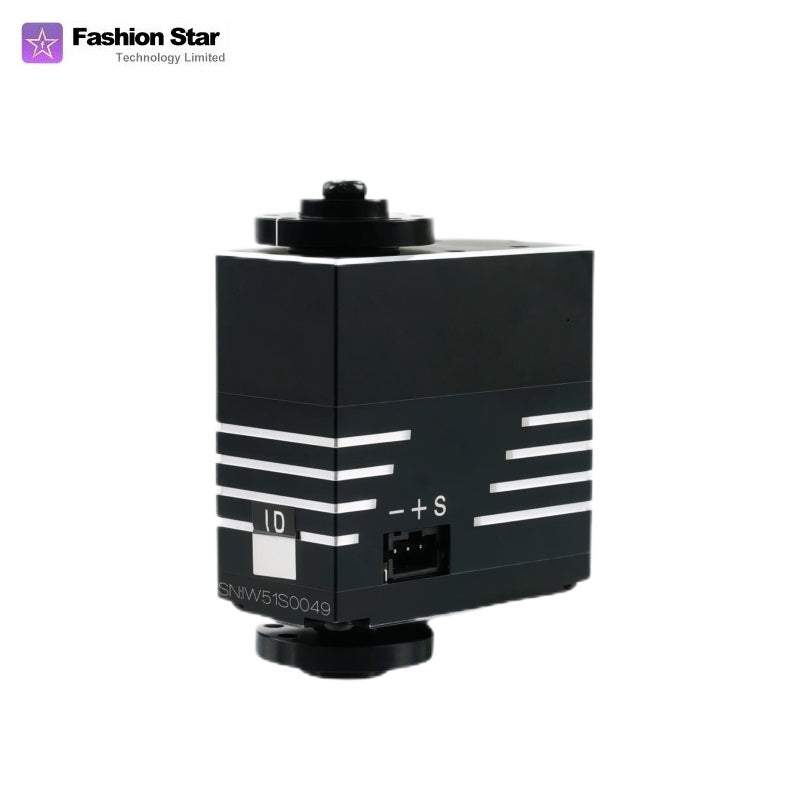

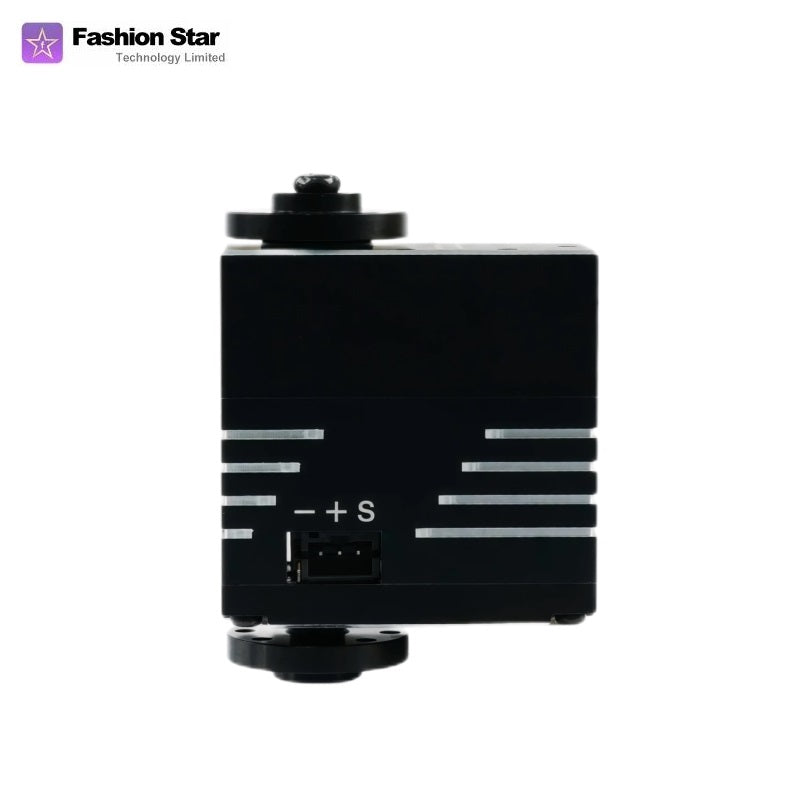

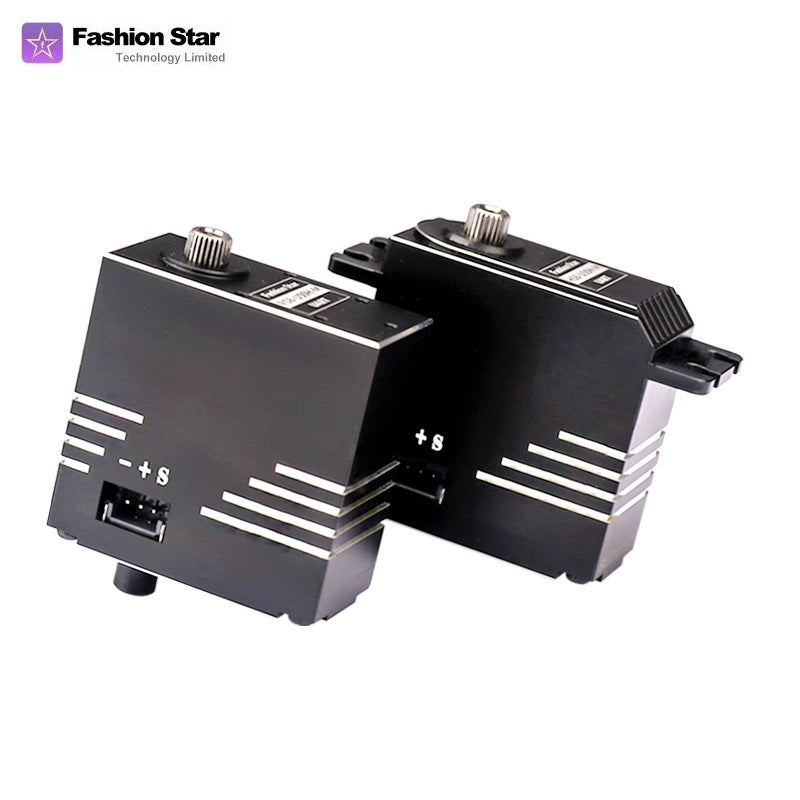

Appearance	Single Shaft \| Double Shaft
Dimensions	40×40×20mm
Weight	83g
