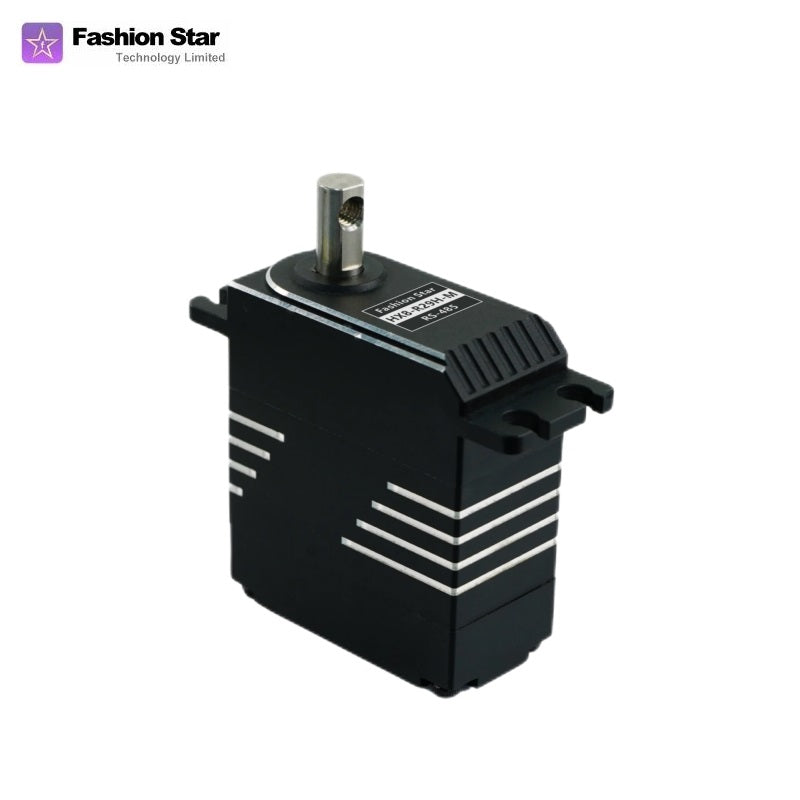

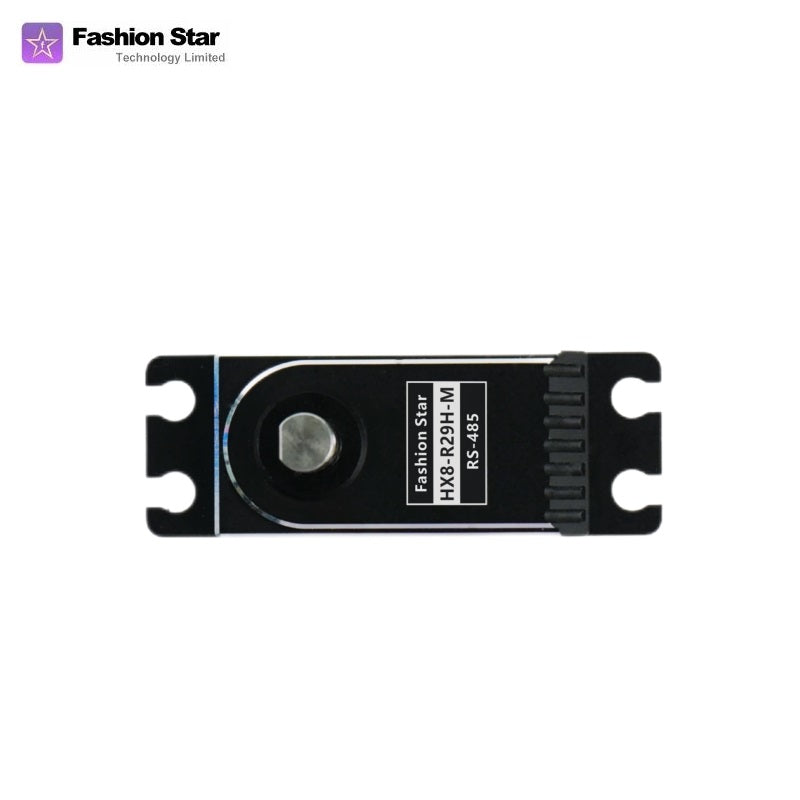

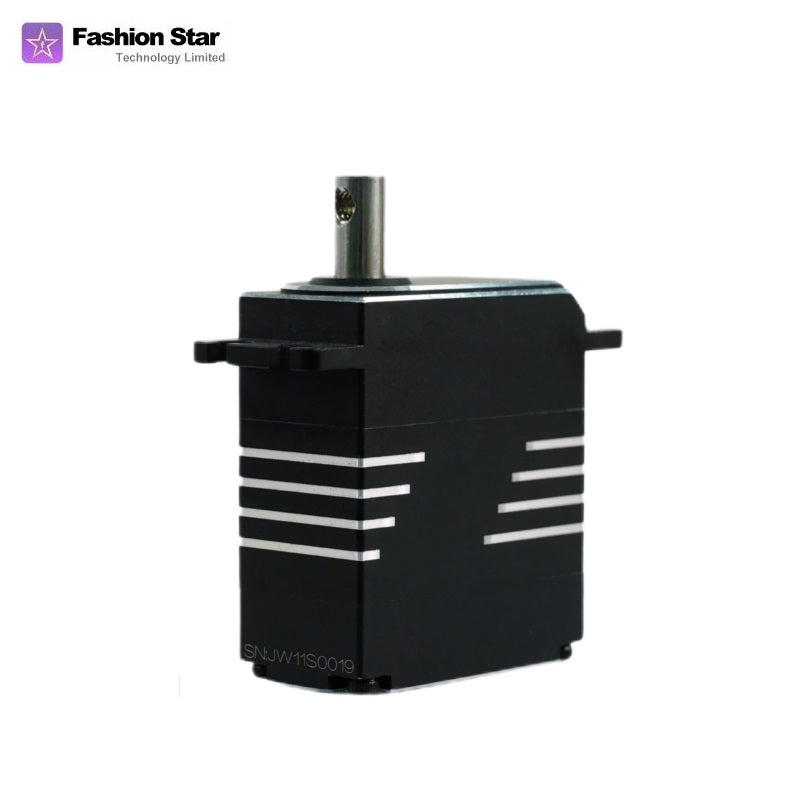

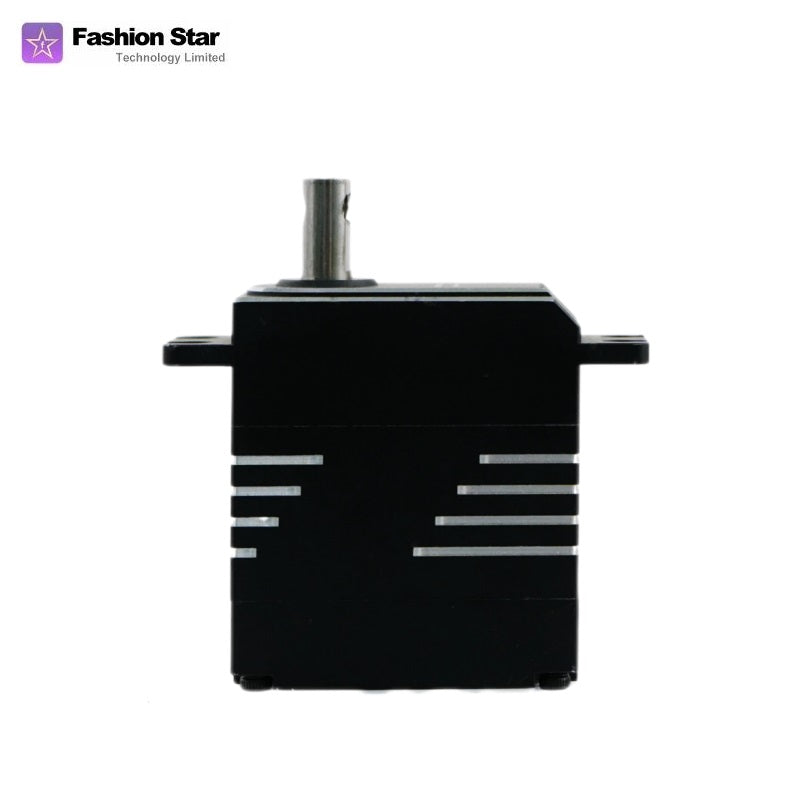

Fashion Star HX8-R29H-M RS485 Bus Servo

$195.00

Version

HX8-R29H-M (Single Shaft) HX8-R29W-M (Single Shaft)

Accessory Kit

NOT Include UC-05 RS485/USB Debugging Adapter

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value	Value
	HX8-R29H-M	HX8-R29W-M
Working Voltage	9.0-12.6V	24V
Motor Type	Brushless Motor	Brushless Motor
Stall Torque	28kg-cm (2.74N·m)	28kg-cm (2.74N·m)
No-load Speed	142.0rpm (0.070sec@60°)	142.0rpm (0.070sec@60°)
Working Mode	Single-turn Angle Mode Multi-turn Angle Mode Wheel Mode Damping Mode	Single-turn Angle Mode Multi-turn Angle Mode Wheel Mode Damping Mode
Protection Mode	Voltage Protection Stall Protection Power Protection Temperature Protection	Voltage Protection Stall Protection Power Protection Temperature Protection
Working Temperature	-10 ~ 60°C	-10 ~ 60°C
Stall Current	5.5A	5.5A
No-load Current	300mA	300mA
Standby Current	40mA	40mA
Position Sensor	12bit Non-contact Encoder (Magnetic Encoder)	12bit Non-contact Encoder (Magnetic Encoder)
Effective Angle	360°	360°
Resolution	4096 [steps/360°]	4096 [steps/360°]
Processor	32bit MCU	32bit MCU
Feedback Signal	Voltage \| Current \| Temperature \| Angle \| Power	Voltage \| Current \| Temperature \| Angle \| Power
Communication Protocol	RS-485	RS-485
Baud Rate	9600~1Mbps	9600~1Mbps
ID Range	0~254	0~254
Gear Material	Full Metal Stainless Steel Combination	Full Metal Stainless Steel Combination
Gear Ratio	173:1	173:1
Output Gear	Stainless Steel / Ø6mm / 25T	Stainless Steel / Ø6mm / 25T
Shell Material	Full Aluminum Alloy Body	Full Aluminum Alloy Body

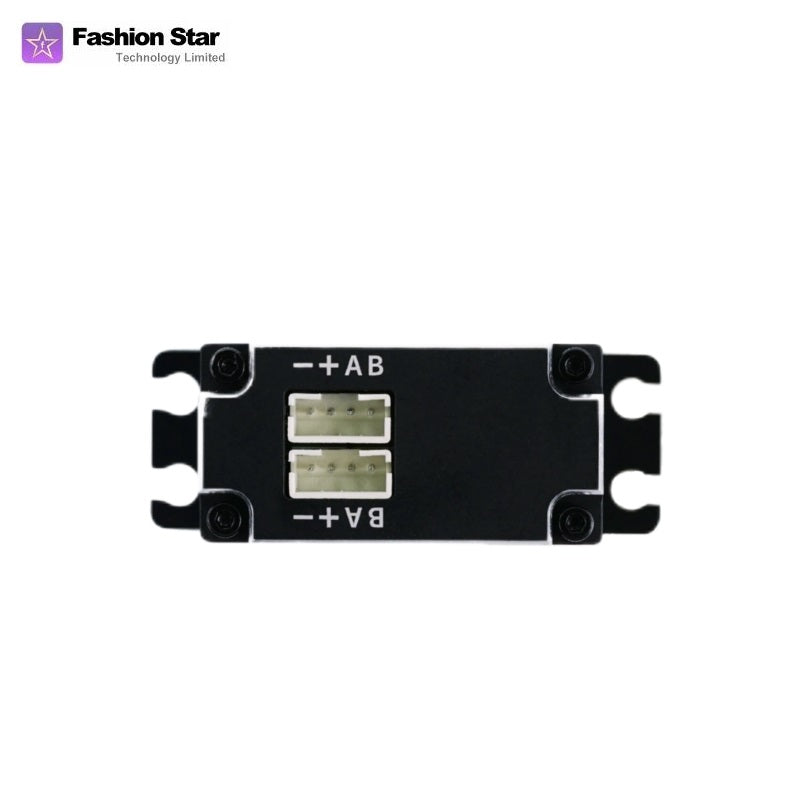

Interface Type	PH2.0-4pin	PH2.0-4pin
Appearance	Single Shaft \| Dual Shaft	Single Shaft \| Dual Shaft
Dimensions	40×20×46mm	40×20×46mm
Weight	95g	95g
