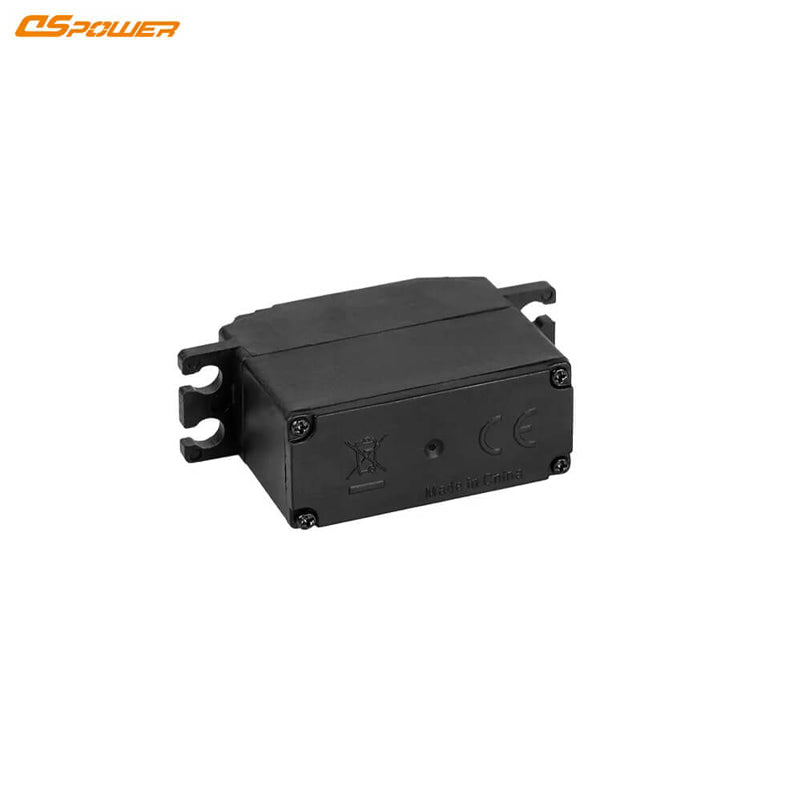

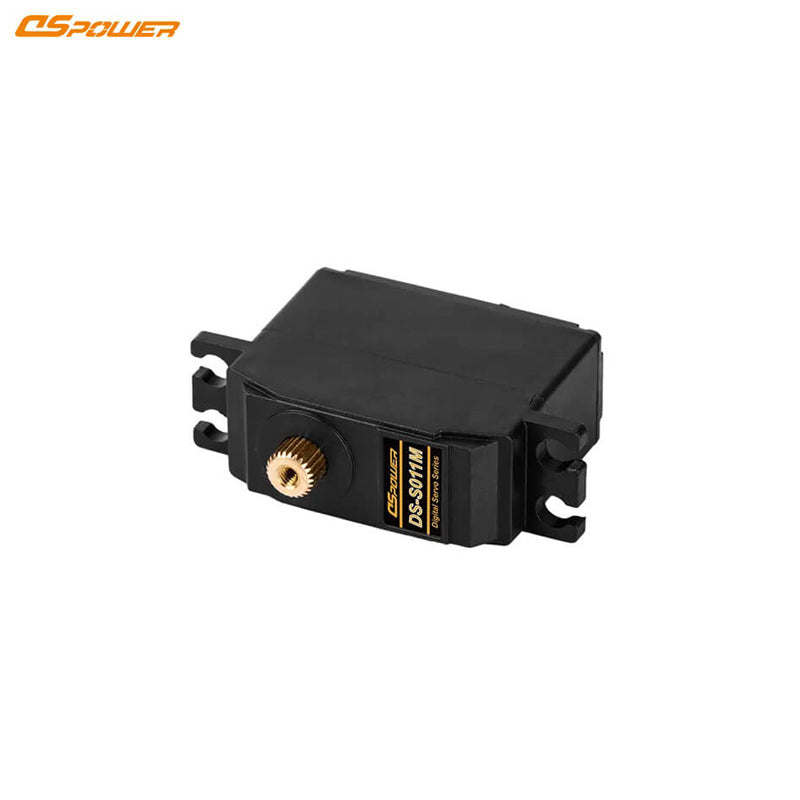

DSpower DS-S011M Servo Motor

$25.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Voltage 4.8 ~ 6 V DC
No Load Speed ≤0.18 sec/60° at 4.8V
≤0.16 sec/60° at 6.0V
Stall Current ≤1.6 A at 4.8V
≤2.0 A at 6.0V
Rated Torque ≥2.8 kgf·cm at 4.8 V
≥3.2 kgf·cm at 6.0 V
Pulse Width Range 700 ~ 2300 μs
Operating Travel Angle 90° ± 10°
Mechanical Limit Angle 360°
Weight 30 ± 1 g
Case Material PA66 + 30% Fiber

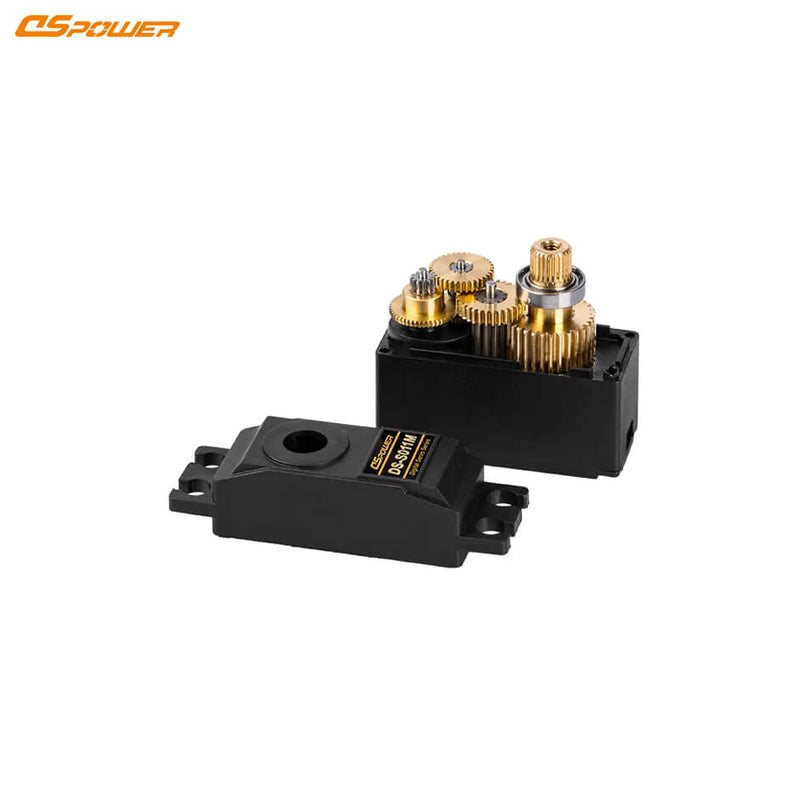

Gear Set Material Metal gear
Motor Type Core motor
