DSpower

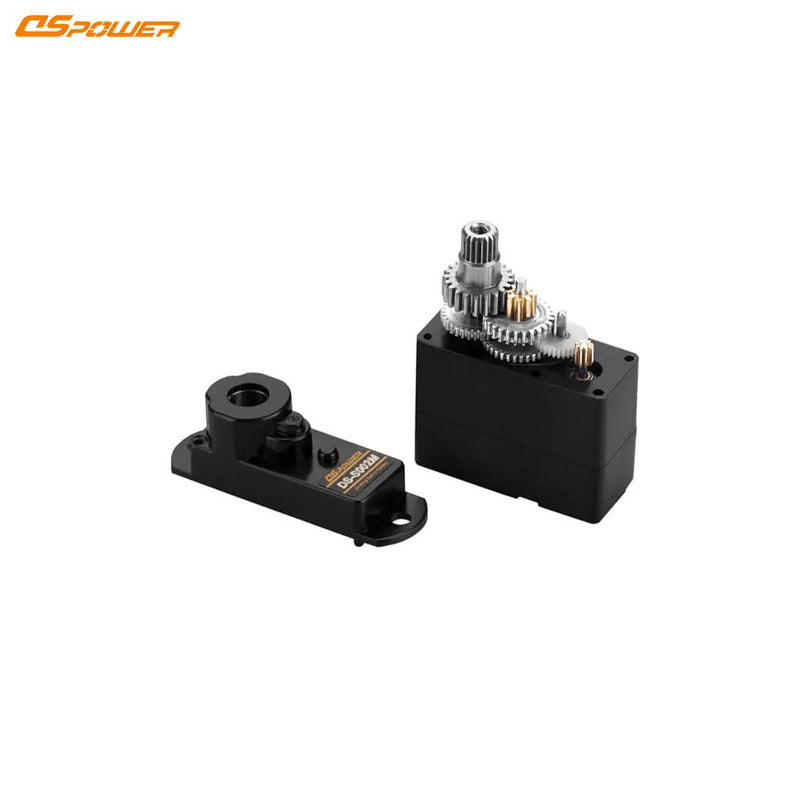

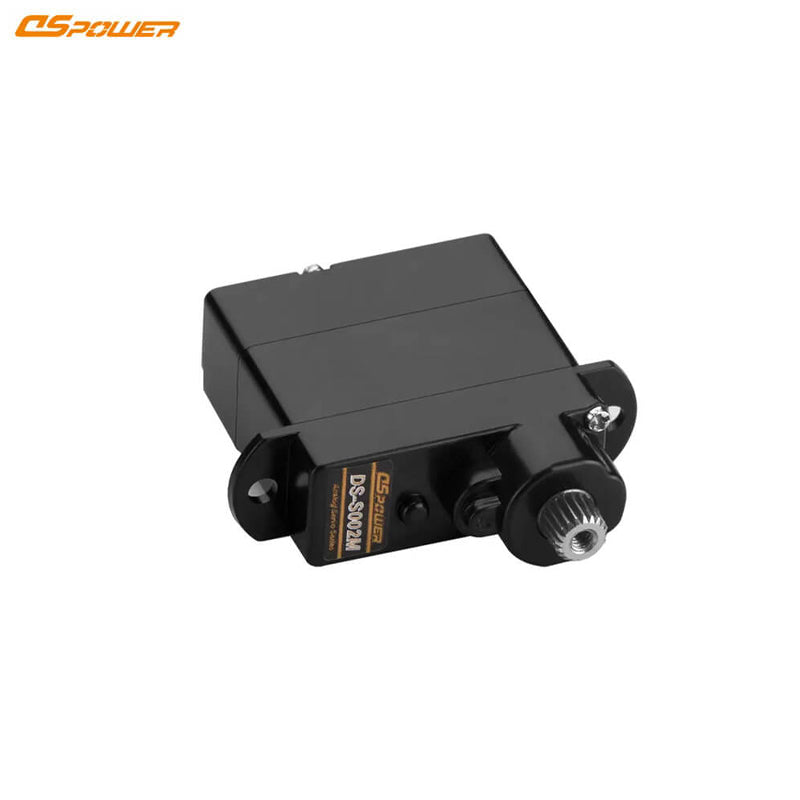

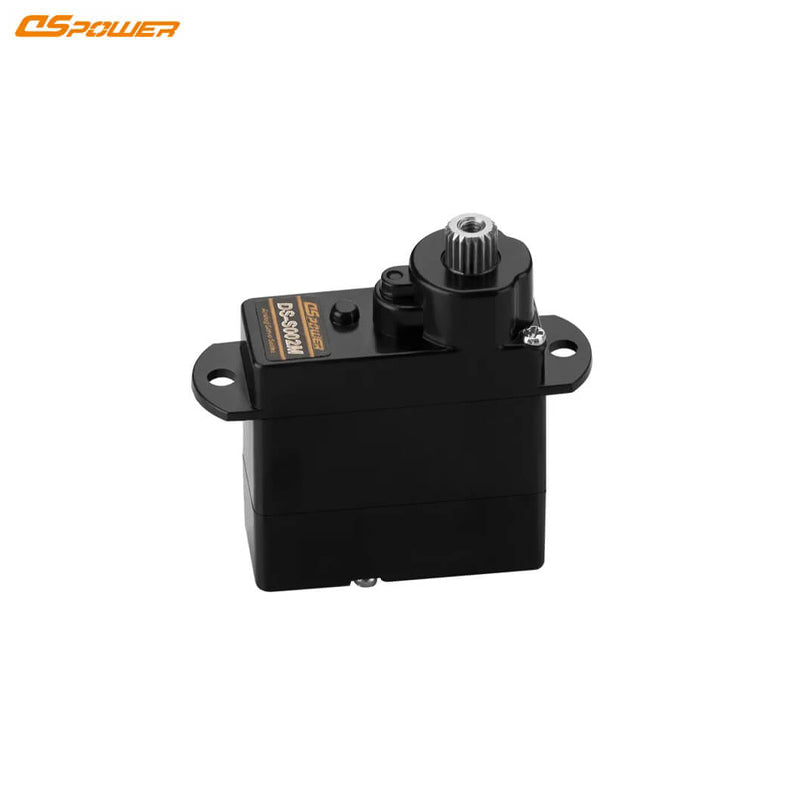

DSpower DS-S002M Servo Motor

$25.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Voltage 4.8 ~ 6.0 V DC
No Load Speed ≤0.15 sec/60° at 4.8V (REF.)
≤0.12 sec/60° at 6.0V (STD.)
Stall Current ≤500 mA at 4.8V (REF.)
≤550 mA at 6.0V (STD.)
Stall Torque ≥0.58 kgf·cm at 4.8V (REF.)
≥0.65 kgf·cm at 6.0V (STD.)
Pulse Width Range 500 ~ 2500 μs
Operating Travel Angle 90° ± 10°
Mechanical Limit Angle 360°
Weight 5.8 ± 0.2 g
Case Material ABS
Gear Set Material Metal gear
Motor Type Coreless motor

DSpower DS-S002M Servo Motor.pdf
